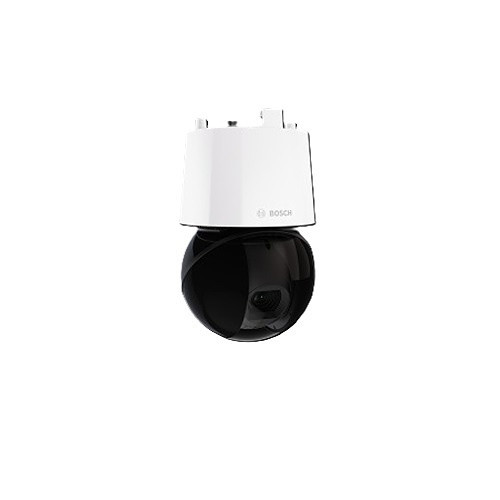

Bosch NDP-7602-Z40L PTZ Network Camera

Overview

The Bosch NDP-7602-Z40L is a ruggedized pan-tilt-zoom network camera designed for outdoor surveillance and high-security applications requiring extended optical reach and intelligent video analytics. This 2MP PTZ camera delivers a 40x optical zoom range (4.25–170mm focal length) with dual video compression support, making it suitable for large area monitoring in challenging environmental conditions. The camera combines IP66 weatherproofing with IK10 vandal resistance, enabling reliable deployment in exposed, high-impact environments.

Key Features

• 2MP Resolution: Delivers sharp detail capture across the full zoom range, supporting forensic-quality footage and extended tracking operations.
• 40x Optical Zoom (4.25–170mm): Extended focal length enables operators to monitor large perimeter areas while maintaining subject clarity at distance, reducing the need for additional camera deployments.
• Dual Video Compression: Supports both H.265 and H.264 encoding, allowing flexible bandwidth optimization and broad VMS compatibility across legacy and modern systems.
• Infrared Night Vision: Integrated IR illumination provides continuous surveillance capability in low-light and complete darkness without visible light emission, critical for covert perimeter monitoring.
• IP66 Environmental Rating: Sealed enclosure withstands heavy rain, water jets, and dust ingress, suitable for rooftop, facade, and outdoor perimeter mounting without supplementary housing.
• IK10 Vandal Resistance: Reinforced construction and impact-rated housing protect against physical interference, deliberate tampering, and environmental shock, delivering operational continuity in high-risk locations.
• Deep Learning Analytics (DLPU): On-camera processing delivers intelligent object detection, classification, and event triggering without reliance on external compute platforms, reducing alert noise and enabling faster response to genuine security events.
• PTZ Control: Full pan, tilt, and zoom functionality supports operator-guided tracking, preset positioning for scheduled monitoring, and automated patrol patterns for comprehensive coverage.

Integration & Deployment

The NDP-7602-Z40L integrates with standard ONVIF-compliant VMS platforms and security management suites, supporting HTTP/HTTPS, RTSP, and multicast streaming protocols. The camera's H.265 codec option reduces bandwidth consumption on bandwidth-constrained WAN links while maintaining H.264 fallback for mixed-generation deployments. Deep learning analytics execute locally on the camera, enabling real-time event filtering and reducing backend storage and processing overhead. Its combination of sealed enclosure design, impact-rated construction, and integrated IR capability makes the NDP-7602-Z40L suitable for perimeter security, utility infrastructure monitoring, transportation facilities, and outdoor campus surveillance where environmental durability and remote optical reach are mandatory.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Bosch NDP-7602-Z40L during perimeter security projects where extended coverage and environmental durability are non-negotiable. The 40x optical zoom and sealed IP66 housing eliminate the need for multiple fixed cameras on large open areas, reducing infrastructure cost and simplifying network topology. The combination of H.265 and H.264 support gives you real flexibility when integrating with existing VMS deployments.

Technical Highlights:

• Optical Reach: 40x zoom (4.25–170mm) enables subject identification across large perimeters without additional camera units, critical for utility, transportation, and open-area surveillance.
• Environmental Durability: IP66 rating and IK10 vandal resistance ensure operation in unprotected outdoor locations without supplementary enclosures or protective housings.
• Codec Flexibility: H.265 and H.264 support reduces bandwidth on WAN-constrained sites while maintaining compatibility with legacy VMS systems and edge analytics platforms.
• On-Camera Intelligence: Deep learning analytics deliver real-time object detection and event filtering directly at the camera, reducing backend processing load and alert latency.

Deployment Considerations:

• Position the camera on elevated structures or rooflines to maximize zoom effectiveness and reduce object occlusion in large open areas.
• Plan for electrical infrastructure (PoE or 24VAC) and network runs to support PTZ motor requirements; zoom and pan operations consume variable power loads.
• Leverage H.265 encoding on bandwidth-limited WAN connections; confirm VMS platform support before deployment if H.265 is a bandwidth requirement.
• Test deep learning analytics configuration and preset positioning during commissioning to align detection sensitivity and camera behavior with operational protocols.

The NDP-7602-Z40L is a solid choice for perimeter and open-area surveillance where zoom reach, environmental ruggedness, and intelligent analytics justify the PTZ platform cost. The sealed design and vandal rating eliminate field replacement risk in hostile or exposed locations. Confirm network bandwidth allocation and VMS analytics support before final procurement.
