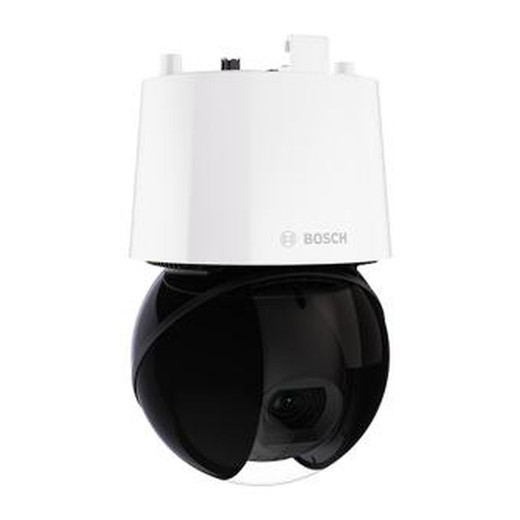

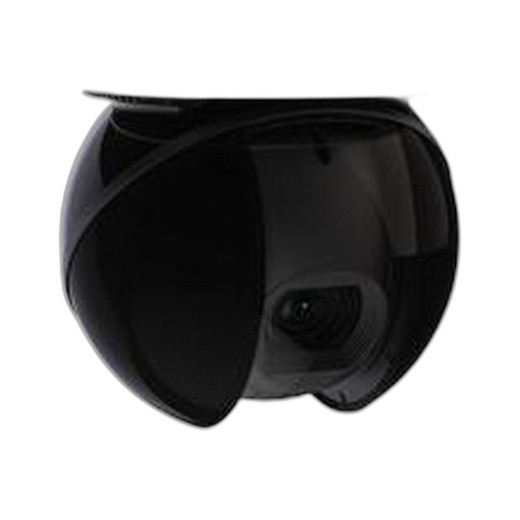

Bosch NDP-7802-Z40 AUTODOME 7100i 2MP Outdoor PTZ Camera

Bosch NDP-7802-Z40 Varifocal PTZ Camera

Overview

The Bosch NDP-7802-Z40 is a compact pan-tilt-zoom network camera engineered for outdoor and exposed indoor surveillance environments. This 2MP varifocal PTZ combines optical zoom capability with robust environmental sealing, making it suitable for perimeter monitoring, traffic observation, and wide-area coverage where zoom flexibility and durability are critical. The NDP-7802-Z40 delivers flexible focal length control via varifocal lens technology with 40x optical zoom, eliminating the need for multiple fixed cameras across monitored zones.

Key Features

• 2MP Resolution: Captures sharp images across the monitored area with sufficient detail for identification and forensic review.
• 40x Optical Zoom: Varifocal lens design enables operators to adjust focal length remotely, covering wide areas and zooming into specific points of interest without image degradation inherent to digital zoom.
• PoE Power (802.3af): Single Ethernet cable supplies power and network connectivity, simplifying installation and reducing cable runs in field deployments.
• Day/Night IR Capability: Integrated infrared illumination enables surveillance in complete darkness, switching automatically between color and monochrome modes based on available light.
• IP66 Environmental Rating: Sealed against dust and water ingress, supporting outdoor mounting in weather-exposed locations including coastal environments, manufacturing facilities, and open perimeter zones.
• IK10 Impact Resistance: Vandal-resistant construction withstands physical contact and deliberate interference, suitable for high-risk or accessible mounting locations.
• H.265, H.264, and MJPEG Compression: Multiple codec support optimizes bandwidth and storage based on network capacity and recording requirements, with H.265 delivering 50% bitrate reduction versus H.264 at equivalent quality.
• Microphone Support: Built-in audio input enables two-way communication and event-correlated sound capture for enhanced situational awareness.

Integration & Compatibility

The NDP-7802-Z40 operates as a standard ONVIF-compliant IP camera, integrating with enterprise VMS platforms, NVR systems, and management consoles supporting open protocols. Ethernet PoE delivery enables integration into infrastructure already equipped with PoE switches and midspan injectors, reducing deployment complexity. The varifocal lens and motorized zoom control function through standard ONVIF PTZ commands, allowing operators to control pan, tilt, and focal length from any compatible management interface or mobile client.

Deployment Applications

The NDP-7802-Z40 is engineered for perimeter security, parking lot monitoring, traffic observation points, facility entrances, and wide-area surveillance in outdoor or semi-exposed environments. The combination of IP66 sealing and IK10 impact rating makes it suitable for installations where weather exposure and physical tampering are operational concerns. Varifocal zoom capability reduces the need for multiple cameras, lowering per-zone equipment costs in large monitoring areas.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Bosch NDP-7802-Z40 during planning for several outdoor perimeter projects, and its varifocal zoom and sealed construction make it a solid fit for applications where you need coverage flexibility without deploying multiple fixed cameras. The 40x optical zoom eliminates the pixelation problems you get with digital zoom, which matters when you're trying to capture usable detail across a wide zone.

Technical Highlights:

• Varifocal 40x Optical Zoom: Remote focal length adjustment covers everything from wide perimeter views to detailed close-ups, reducing blind spots and equipment count.
• PoE (802.3af) Power: Operates from standard PoE infrastructure; power budget is tight on 802.3af, so verify your switch capacity before deployment at maximum lens movement.
• Day/Night IR with Automatic Switching: Infrared capability handles surveillance through dusk and darkness without requiring separate lighting infrastructure, though IR range will depend on environmental conditions and distance to subjects.
• IP66 + IK10 Durability: Sealed against moisture and salt spray; impact-rated construction resists tampering and weather exposure on exterior mounts.
• Codec Flexibility: H.265 encoding cuts bandwidth roughly in half versus H.264 at the same visual quality, valuable on bandwidth-constrained network segments.

Deployment Considerations:

• PoE 802.3af power budget is approximately 12.95W maximum; if your installation includes long cable runs or older switches with marginal PoE delivery, test voltage drop before final deployment.
• Varifocal zoom introduces motor complexity compared to fixed lenses; ensure your VMS or control interface supports ONVIF PTZ commands for full zoom functionality.
• Microphone input is present but audio encoding and storage depend on your NVR or recording system; verify two-way audio support in your VMS before relying on this feature operationally.
• Mount the camera on sturdy pole or wall infrastructure; the zoom mechanism and motorized pan/tilt add mechanical load, and vibration from wind or traffic can degrade image stability.

The NDP-7802-Z40 is a practical choice for outdoor surveillance zones that require zoom flexibility and environmental durability. Its PoE efficiency and sealed design reduce installation overhead compared to powered-separately PTZ units, and the multi-codec support makes it compatible with most modern VMS platforms. Confirm PoE switch capacity and ONVIF PTZ support in your control layer before specifying.
