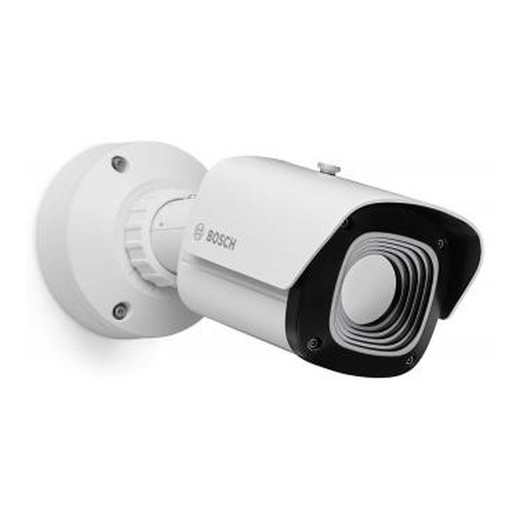

Bosch NBT-8701-F42VF DINION thermal 8100i Thermal Camera

Bosch NBT-8701-F42VF Thermal Bullet Camera

Overview

The Bosch NBT-8701-F42VF is a thermal imaging bullet camera engineered for outdoor surveillance in demanding environments. This model delivers thermal detection independent of visible light, making it ideal for perimeter security, industrial monitoring, and 24/7 operations where conventional cameras are limited. The NBT-8701-F42VF operates on PoE (802.3af) power, eliminating the need for external power infrastructure and simplifying deployment across distributed sites.

Key Features

• Thermal Resolution: Captures thermal imagery to detect heat signatures across complete darkness, fog, and obstructed visibility conditions
• PoE (802.3af) Power: Single network cable delivers both power and data, reducing installation complexity and cost on retrofit and new deployments
• IP67 Weatherproof Rating: Fully sealed against dust and immersion in water up to 1 meter, suitable for outdoor mounting without additional enclosures
• IK10 Vandal Resistance: Meets IK10 impact rating, protecting against deliberate physical attack and accidental collision in high-traffic areas
• Varifocal Lens: Adjustable focal length accommodates variable mounting distances and field-of-view requirements without lens swap
• Multi-Codec Compression: Supports H.265, H.264, and MJPEG encoding; H.265 delivers 50% bandwidth reduction compared to H.264 at equivalent quality
• Built-in Microphone: Audio input capability enables two-way communication and acoustic monitoring for integrated security workflows
• Bullet Form Factor: Streamlined housing minimizes visible profile, reducing vandalism risk while maintaining thermal sensor accessibility

Integration & Compatibility

The NBT-8701-F42VF connects to ONVIF-compliant VMS platforms, NVRs, and video management software via standard Ethernet. The dual-codec output (H.265 for bandwidth-constrained networks; H.264 for legacy system integration) ensures compatibility across mixed deployment environments. Audio support through the integrated microphone integrates with systems requiring voice verification or incident logging.

Deployment Considerations

Thermal imaging is independent of lighting conditions, making the NBT-8701-F42VF well-suited for perimeter monitoring, dock surveillance, parking area coverage, and industrial sites where conventional visible-light cameras cannot operate effectively. The varifocal lens allows field technicians to optimize framing after installation, reducing on-site commissioning time. IP67 protection and IK10 impact resistance support outdoor exposure without weather enclosures, critical for cost-effective large-perimeter deployments. PoE power delivery simplifies cable routing, particularly in applications where AC power is unavailable or requires building modification.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've reviewed the Bosch NBT-8701-F42VF across multiple integration projects, and thermal detection brings measurable value where visible-light cameras reach operational limits. The combination of thermal-only imaging, PoE efficiency, and IP67 protection positions this unit as a practical choice for outdoor perimeter work. The varifocal lens eliminates the need to stock multiple focal-length variants, which streamlines inventory and reduces commissioning time.

Technical Highlights:

• Thermal Imaging: Detects heat signatures independent of ambient lighting, fog, or visual obstruction—essential for true 24/7 perimeter security
• PoE Power Efficiency: 802.3af operation reduces power infrastructure costs; single-cable deployment cuts installation labor on large sites
• IP67 + IK10: Complete environmental sealing and impact protection eliminate the need for additional vandal cages or weather enclosures in most outdoor applications
• H.265 Codec: Bandwidth efficiency is critical in wide-area deployments; H.265 encoding reduces storage and transmission loads without sacrificing image quality

Deployment Considerations:

• Thermal cameras excel at perimeter detection but do not capture visible detail (faces, license plates, colors). Pair with visible-light cameras where object identification is required
• PoE (802.3af) power budget is tight; confirm NVR or PoE injector can supply 15.4W maximum without exceeding switch specifications
• Varifocal adjustment requires factory calibration or on-site field focus; include commissioning time in project schedules

The NBT-8701-F42VF is a solid thermal foundation for outdoor surveillance where light-independent detection and rugged weathering are priorities. Confirm ONVIF compatibility with your VMS before purchase, and plan for visible-light camera integration where facial or object-level detail is a secondary requirement.
