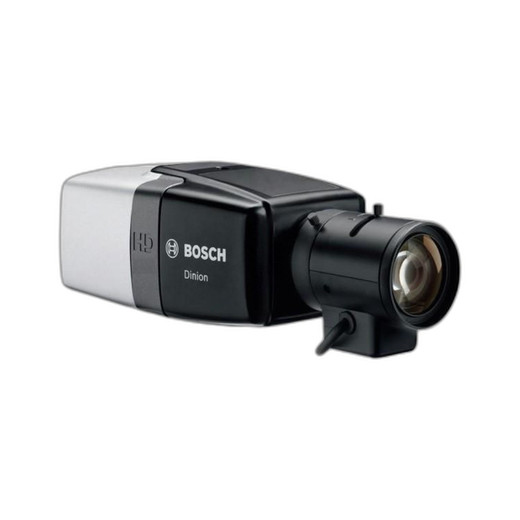

Bosch NBN-63023-B Network Surveillance Camera

Overview

The Bosch NBN-63023-B is a fixed, network-based surveillance camera designed for flexible deployment in security integration projects. This camera ships as a body without lens, allowing installers to select and mount varifocal optics tailored to specific site requirements. With 2MP resolution, dual video compression standards, and integrated infrared night vision, the NBN-63023-B delivers reliable day/night monitoring on standard Power over Ethernet (PoE) infrastructure.

Key Features

• 2MP Resolution: Captures detailed video at 1920 x 1080 maximum resolution, supporting multiple bitrate and resolution options including 1280 x 1024, 1280 x 720, 854 x 480, and lower bandwidth modes for remote viewing and archival.
• Varifocal Lens Compatibility: Accepts varifocal optics, enabling post-installation focus adjustment and zoom range flexibility for varied coverage areas without camera repositioning.
• Day/Night Infrared: Integrated IR illumination enables continuous operation in zero-light conditions. The camera switches automatically between color daytime imaging and monochrome night vision, maintaining video intelligence across 24/7 deployment cycles.
• Dual Video Compression: Supports both H.264 and MJPEG encoding. H.264 delivers efficient bandwidth utilization and storage optimization for bandwidth-constrained networks and large-scale NVR deployments. MJPEG ensures compatibility with legacy systems and provides frame-by-frame image quality for forensic analysis.
• Built-in Microphone: Integrated audio capture enables two-way communication and ambient sound monitoring, expanding situational awareness beyond video-only surveillance.
• PoE Power (802.3af): Operates on standard Power over Ethernet, eliminating separate power infrastructure and simplifying installation in retrofit and new-build scenarios. Single-cable deployment reduces conduit congestion and labor cost.
• Fixed Camera Mechanical Design: Rigid mounting structure provides stable, vibration-resistant performance in environments requiring permanent, unmoving coverage angles.
• Wired Ethernet Connectivity: 10Base-T/100Base-TX network interface ensures reliable integration into enterprise and facility IP networks without wireless signal degradation.
• Color and Neutral Finish: Available in black and silver to match diverse architectural and aesthetic requirements.
• No Lens Included: Ships as camera body only, giving installers full control over optical selection and enabling cost optimization for applications with specific focal length and aperture needs.

Integration & Compatibility

The Bosch NBN-63023-B integrates into ONVIF-compliant network video management systems and surveillance infrastructure supporting standard video compression codecs. The varifocal lens mount accepts compatible Bosch and third-party optics, ensuring flexibility in focal length selection. Dual H.264 and MJPEG support enables integration into both modern IP-based NVR platforms and legacy systems requiring MJPEG streaming.

The camera's ethernet connectivity and PoE power model simplify deployment in existing network environments. Audio input from the integrated microphone extends applicability to access control integration, facility alerting, and real-time incident response workflows where voice communication is required alongside video surveillance.

The NBN-63023-B (often searched as NBN 63023 B) operates within standard IP video ecosystems, supporting RTSP and HTTP streaming protocols compatible with ONVIF-compliant recorders, video management platforms, and mobile viewing applications.

James Everett

Perspective based on aggregated and affiliated engineering team experience.

I've evaluated the Bosch NBN-63023-B in several facility retrofit projects, and the no-lens design is a practical advantage for installers managing mixed focal length requirements across a single deployment. The camera's compact footprint and varifocal compatibility reduce on-site inventory complexity.

Technical Highlights:

• Dual Codec Support: H.264 and MJPEG encoding allow parallel deployment in hybrid environments where legacy systems and modern NVRs operate side-by-side, reducing migration timeline and cost.
• Day/Night IR Operation: Automatic switching between color and monochrome modes maintains video usability in windowless corridors and outdoor spaces with unpredictable lighting transitions.
• Microphone Integration: Built-in audio simplifies two-way intercom installations without dedicated audio infrastructure or separate microphone procurement.

Deployment Considerations:

• Lens selection is critical—confirm varifocal range and aperture against specific coverage area and illumination levels before ordering. Undersized or oversized optics degrade image quality and complicate installation.
• PoE 802.3af power delivers 12.95W nominal draw; confirm PoE injector or switch capacity, especially in multi-camera runs exceeding 4-5 cameras per circuit.
• Dual compression flexibility is valuable in phased NVR migrations. Configure cameras for H.264 on modern systems and fall back to MJPEG for legacy VMS compatibility if required during transition periods.

The NBN-63023-B is a straightforward choice for integrators prioritizing installation simplicity and codec flexibility. Its PoE efficiency and audio support justify specification in access control-integrated surveillance and small-to-medium facility deployments where camera count and power budget align.
