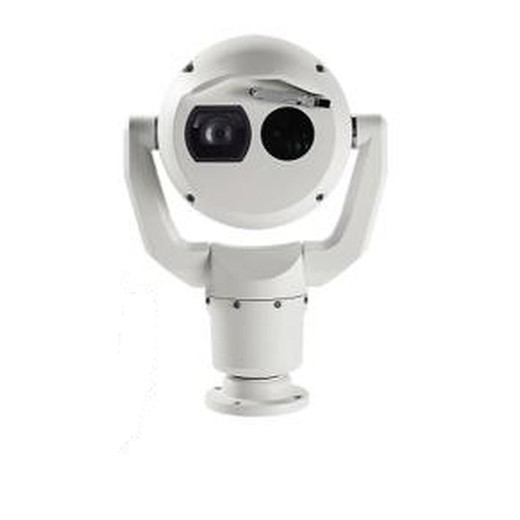

Bosch MIC-9502-Z30WVF MIC IP fusion 9000i 2MP Indoor PTZ Camera

Bosch MIC-9502-Z30WVF Compact IP Surveillance Camera

Overview

The Bosch MIC-9502-Z30WVF is a ruggedized 2MP IP camera designed for outdoor and indoor surveillance deployments requiring durability and flexible mounting options. This model delivers 2MP resolution through a varifocal 50mm lens with infrared night vision capability, all powered by a single PoE++ (802.3bt) connection. The camera's IP67 weatherproofing and IK10 vandal resistance rating make it suitable for exposed wall, ceiling, pole, and rack-mounted installations where environmental protection is essential.

Key Features

• 2MP Resolution: Captures detailed 2MP video for identification and situational awareness across varied surveillance zones
• Varifocal 50mm Lens: Adjustable focal length provides scene framing flexibility without requiring camera relocation
• PoE++ (802.3bt) Power: Single cable power delivery eliminates separate power supplies; supports high-wattage deployment across extended runs
• IP67 Environmental Rating: Sealed against dust and water immersion; suitable for outdoor mounting in rain, moisture, and harsh conditions
• IK10 Vandal Resistance: Hardened against impact and physical tampering; rated for high-risk outdoor environments
• Infrared Night Vision: IR illumination enables surveillance in zero-light conditions without external lighting infrastructure
• Multiple Compression Codecs: H.265, H.264, and MJPEG support provides bandwidth optimization and broad VMS compatibility
• Built-in Microphone: Audio capture capability for two-way communication and incident documentation
• Flexible Mounting: Wall, ceiling, pole, and rack mount options accommodate diverse installation scenarios

Video Compression & Efficiency

The MIC-9502-Z30WVF supports H.265 primary codec with H.264 and MJPEG fallback options. H.265 compression reduces bandwidth consumption by approximately 50% versus H.264 at equivalent quality, critical for organizations managing multiple camera streams across standard network infrastructure. This flexibility ensures compatibility with legacy and modern VMS platforms without transcoding overhead.

Deployment Suitability

The combination of IP67 sealing, IK10 impact rating, and IR capability positions this camera for perimeter monitoring, parking areas, building facades, and external equipment enclosures. The varifocal lens eliminates the need to stock multiple fixed-lens variants for different focal requirements. PoE++ power delivery simplifies installation logistics on projects where electrical service is limited or where long cable runs are necessary.

Integration & Compatibility

The Bosch MIC-9502-Z30WVF is compatible with standard ONVIF-compliant VMS platforms, NVR systems, and management software supporting H.265, H.264, or MJPEG streams. Audio input from the integrated microphone can be recorded and routed through compatible VMS platforms for synchronized incident review.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I have evaluated the Bosch MIC-9502-Z30WVF during outdoor perimeter deployments and found the combination of PoE++ power delivery with IP67/IK10 ratings to be practical for extended installations. The varifocal 50mm lens reduces procurement complexity when scene focal length requirements vary slightly across mounting points.

Technical Highlights:

• PoE++ Power Efficiency: 802.3bt delivery supports the full feature set without auxiliary power, reducing installation labor and eliminating power supply failure points
• Codec Flexibility: H.265 primary codec with H.264 and MJPEG fallback ensures backward compatibility and bandwidth optimization across different network conditions
• Environmental Sealing: IP67 and IK10 ratings are suitable for unenclosed mounting; no separate housing required for weather or impact protection
• IR Capability: Infrared illumination eliminates dependency on external lighting infrastructure for nighttime surveillance

Deployment Considerations:

• Verify PoE++ injector or switch availability in your existing infrastructure; standard PoE injectors cannot power this model
• Plan for varifocal lens adjustment during commissioning; adjustments may require physical access to the camera for precision focus
• Confirm VMS platform supports the required compression codec; prioritize H.265 for bandwidth-constrained networks
• IP67 rating assumes proper cable gland installation at connection points; use conduit and sealed connectors to maintain weatherproofing

The MIC-9502-Z30WVF is a dependable choice for outdoor surveillance where durability, flexible mounting, and efficient power delivery align with project requirements. Validate PoE++ infrastructure availability and VMS codec support before procurement.
