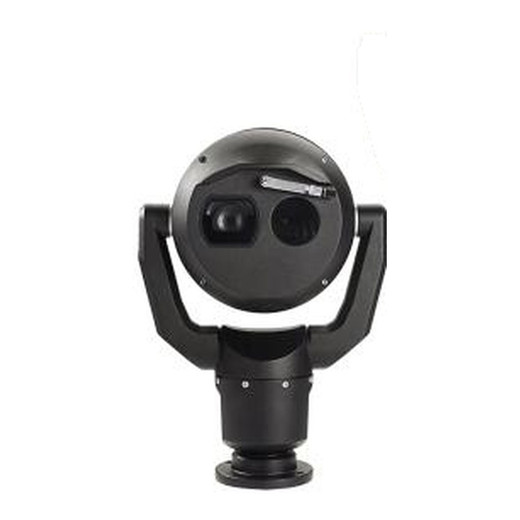

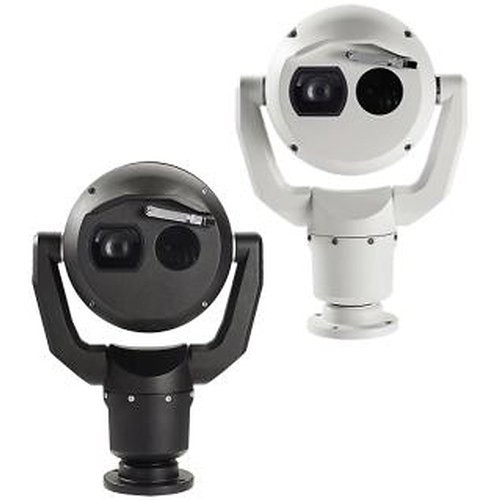

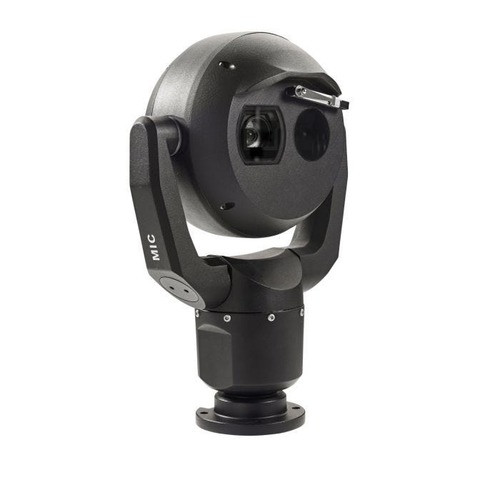

Bosch MIC-9502-Z30BVS9 MIC IP fusion 9000i 2MP Black Indoor PTZ Camera

Bosch MIC-9502-Z30BVS9 Compact IP Camera

Overview

The Bosch MIC-9502-Z30BVS9 is a compact 2MP network surveillance camera engineered for flexible indoor and outdoor deployments. This unit combines efficient video capture with robust construction, delivering 1080p resolution via varifocal optics and multiple compression standards. Powered by PoE++ (802.3bt), the MIC-9502-Z30BVS9 reduces infrastructure requirements while supporting wall, ceiling, pole, and rack mounting configurations.

Key Features

• 2MP Resolution: Captures video at 1080p for clear subject identification and situational awareness across varied distances.
• Varifocal Lens: Adjustable focal length enables deployment flexibility without requiring multiple camera models; field of view can be tailored to specific coverage requirements during installation.
• PoE++ (802.3bt) Power: Single-cable power and data delivery eliminates the need for auxiliary power supplies; compatible with 802.3bt infrastructure.
• IP67 Dust and Water Rating: Sealed against dust ingress and water jets; suitable for outdoor environments, mechanical rooms, and high-moisture areas.
• IK10 Vandal Resistance: Meets IK10 impact rating; withstands direct strikes and tampering attempts in high-risk deployment areas.
• Infrared Night Vision: Integrated IR illumination enables monitoring in total darkness without auxiliary lighting; IR distance extends coverage range during low-light operation.
• Multi-Codec Support: H.265, H.264, and MJPEG compression options permit optimization for bandwidth constraints and VMS platform integration; H.265 reduces storage requirements by up to 50% versus H.264 at equivalent quality.
• Built-in Microphone: Audio input support enables verification and incident recording; useful for access points, entry monitoring, and communication-critical installations.
• Multiple Mount Configurations: Wall, ceiling, pole, and rack mounting options simplify integration into existing infrastructure and allow adaptation to site-specific geometry.

Integration & Compatibility

The Bosch MIC-9502-Z30BVS9 is compatible with ONVIF-compliant video management systems and standard network surveillance platforms. Varifocal optics and multiple codec support enable integration into large heterogeneous deployments where uniform camera models are impractical. PoE++ power certification ensures compatibility with 802.3bt switches and injectors.

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

I've specified the Bosch MIC-9502-Z30BVS9 for mixed-environment deployments where spatial constraints and mounting flexibility are critical. The varifocal design and compact form factor solve the common problem of requiring multiple SKUs across a single project site. PoE++ power delivery is straightforward to implement with modern switching infrastructure, reducing deployment time.

Technical Highlights:

• Codec Flexibility: H.265 support cuts bandwidth consumption significantly compared to H.264, which matters when aggregating multiple streams or working within ISP upload limits. MJPEG remains available for backward compatibility or specific motion-only recording scenarios.
• Ruggedness: IP67 and IK10 ratings mean this unit survives in damp mechanical spaces, exterior conduit runs, and areas prone to physical contact. The sealed housing is particularly valuable in HVAC, parking structure, and industrial facility monitoring.
• Optical Design: The varifocal lens eliminates field-of-view guessing; installers can adjust coverage during commissioning without repositioning the camera or returning to inventory for a fixed alternative.

Deployment Considerations:

• Verify PoE++ switch availability before specification; legacy PoE or PoE+ injectors will not deliver sufficient power to this unit.
• In high-ambient-IR environments (direct sunlight on reflective surfaces), test IR performance on-site to confirm night vision behavior meets your motion detection thresholds.
• Plan microphone placement carefully; built-in mics pick up camera case vibration and wind noise; consider windscreen accessories for outdoor installations.

The MIC-9502-Z30BVS9 is well-suited for integrators managing diverse facility types where mount flexibility and codec adaptability reduce overall project complexity and SKU management burden.
