CyberPower APCRBC140-CP Sealed Lead-Acid UPS Replacement Battery
Overview

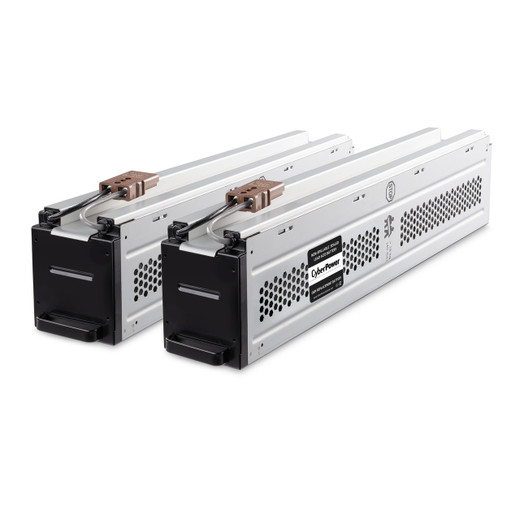

The CyberPower APCRBC140-CP is a sealed lead-acid replacement battery cartridge designed to restore runtime to CyberPower UPS systems with degraded or discharged internal batteries. This unit houses two 192V/5.5Ah sealed lead-acid cells, delivering 1056 watt-hours of total energy capacity — the standard drop-in replacement for mid-range commercial and industrial UPS installations where battery swap cycles are predictable and planned. If your UPS has dropped below its rated backup runtime, or if you're provisioning spares for a critical power infrastructure refresh, this is the cartridge to consider.
Key Features
- 192V / 5.5Ah per cartridge: Delivers 1056 Wh of usable energy capacity across two sealed lead-acid cells. In a typical commercial UPS scenario (e.g., office router, phone system, core switch), this translates to 15–30 minutes of runtime depending on load — enough to execute a graceful shutdown or failover to generator.
- Sealed lead-acid chemistry: No acid spillage risk, no ventilation ducting required. Leak-proof casing means you can install this in occupied facilities without hazmat protocols. Maintenance-free post-installation — no water top-ups, no equalization cycles.
- User-replaceable cartridge design: Swap the battery module without breaking seals on the UPS cabinet itself. Reduces labor time and downtime. Field techs can pull the old cartridge, seat the new one, and verify capacity in under 30 minutes on most CyberPower models.
- Operating temperature range 32–104 °F: Rated for standard commercial HVAC environments (data closets, server rooms, telecom huts). If your facility operates outside this window (e.g., outdoor cell sites, uninsulated shipping containers), monitor and derate accordingly — lithium or AGM alternatives may perform better in extreme climates.
- Operating humidity 0–90 %: Handles dry desert environments and humid coastal installations without condensation-induced corrosion. The sealed casing protects the internal structure, but don't expose the cartridge to direct spray or submersion.
- 2-year limited warranty: Covers factory defects in manufacture and materials. In typical commercial use (10–20 charge cycles per year), expect 5–7 years of useful service life before capacity drops below 80 % of rating.
- Compact form factor — 70.5 lbs, 7.8" × 4.8" × 23.5": Fits standard battery mounting frames in legacy and current CyberPower chassis. The 70.5-pound weight requires two hands for safe placement; leverage a cart or pallet jack if you're installing multiples in a rack configuration.
Integration & Compatibility
The APCRBC140-CP (often searched as APCRBC140 CP) is a direct cartridge replacement for CyberPower UPS models that accept 192V lead-acid packs. Confirm your UPS model before ordering — CyberPower publishes a battery replacement cross-reference tool on their support site that matches serial number to compatible cartridge. This unit is not interchangeable with lithium or modular battery solutions — it maintains the sealed lead-acid chemistry of the original equipment. If you're migrating to a newer UPS topology (e.g., modular hot-swappable batteries, or a jump to lithium), you may need a different cartridge architecture entirely. Check the UPS documentation or consult with a CyberPower systems integrator before committing to inventory.
Deployment Notes
Stage the battery replacement during a scheduled maintenance window. Many commercial facilities perform battery swaps quarterly or semi-annually as preventive maintenance, triggered by load bank testing or UPS diagnostic reports that flag aging cells. Have a multimeter and the original cartridge documentation on hand. After installation, run a load bank test to verify the UPS recognizes the new capacity — this confirms proper electrical contact and cell health. Store spares in a climate-controlled environment; sealed lead-acid cells self-discharge at roughly 3–5 % per month, so rotate inventory if you keep backup cartridges longer than 6 months.
What's in the Box
1x APCRBC140-CP replacement battery cartridge (contains 2x sealed lead-acid cells rated 192V/5.5Ah each). No additional hardware, mounting brackets, or cables included — use the existing cartridge frame and connectors from your UPS.
Frequently Asked Questions
Q: How do I know if the APCRBC140-CP is the correct replacement for my UPS?
A: Check your UPS model number against CyberPower's battery replacement tool or consult the user manual. The APCRBC140-CP is designed for mid-range commercial models; ensure your UPS is rated for 192V/5.5Ah packs before ordering. If in doubt, contact CyberPower support with your serial number.
Q: What is the typical lifespan of the APCRBC140-CP under normal use?
A: In a typical commercial installation (10–20 charge cycles annually, 68–77 °F environment), sealed lead-acid batteries retain 80 % capacity for 5–7 years. Actual lifespan depends on ambient temperature, charge cycles, and how deeply the battery is discharged on each cycle. Hot environments accelerate aging; cold environments slow discharge but increase internal resistance.
Q: Can I install the APCRBC140-CP myself, or do I need a technician?
A: The cartridge is user-replaceable. You'll need basic tools (screwdriver), the ability to safely handle a 70.5-pound module, and confirmation that your UPS is powered off before removal. Many organizations require a trained technician to verify proper installation and run diagnostics post-swap. Check your facility's maintenance protocols.
Q: How long will the APCRBC140-CP run my equipment during a power outage?
A: Runtime depends entirely on the load connected to the UPS. A 300-watt load will run roughly 3–4 hours (1056 Wh ÷ 300 W); a 1000-watt load will run 1 hour or less. Use the CyberPower runtime calculator on their site, or estimate conservatively: multiply the cartridge capacity (1056 Wh) by 0.8 (typical efficiency loss), then divide by your expected load in watts.
Q: What are the storage requirements for an unused APCRBC140-CP?
A: Store in a cool, dry environment (32–104 °F, 0–90 % humidity per the spec sheet). Sealed lead-acid cells self-discharge at 3–5 % per month, so a cartridge sitting unused will lose charge over time. If storing for more than 3–6 months, trickle-charge the battery every few months to maintain full capacity. Do not allow the voltage to drop below 184V (per 192V rating) — deep discharge can permanently reduce capacity.
Q: Is the APCRBC140-CP compatible with surge protectors or PDU systems?
A: No. The APCRBC140-CP is a UPS battery cartridge only — it provides DC power to the UPS inverter. It is not a standalone battery pack for other devices. It must be installed in a compatible CyberPower UPS unit to function.
I've fielded more battery replacement calls than I can count, and the APCRBC140-CP sits at the heart of a lot of CyberPower maintenance strategies across mid-market data centers and telecom huts. The 192V/5.5Ah sealed lead-acid pack delivers 1056 watt-hours — enough runtime for a controlled shutdown or generator spin-up in most commercial scenarios. What matters is that it's a direct cartridge swap: no re-engineering the UPS frame, no firmware updates, no new cables. Just pull the old one, seat the new one, verify contact, and validate capacity with a load bank test.
Technical Highlights:
- 1056 Wh total energy capacity: Two 192V/5.5Ah sealed lead-acid cells in series. In a typical office or small-to-medium server room (200–500W load), you're looking at 2–5 hours of runtime — realistic for an orderly shutdown, not indefinite backup. If you need longer runtime, you need a higher-capacity cartridge family or a second parallel UPS.
- Sealed leak-proof casing: Zero acid spillage risk means you can install in occupied server closets, office supply rooms, or network huts without spill containment platforms. This eliminates a major operational headache compared to traditional flooded lead-acid packs.
- Operating temperature 32–104 °F: Perfectly rated for climate-controlled data centers and indoor telecom cabinets. However, if your UPS lives in a shipping container, outdoor hut, or uninsulated warehouse, derate capacity by 10–15 percent and plan for shorter life cycle. Cold climates (below 50 °F) will reduce runtime by 10–20 percent; hot climates (above 90 °F) will accelerate aging and reduce useful lifespan to 4–5 years instead of 6–7.
Deployment Considerations:
- Weight is 70.5 pounds — a two-person job for safe handling. If you're stocking spares in a rack cabinet, don't stack more than two cartridges vertically. Use a cart or pallet jack for bulk moves; dropped batteries are expensive and potentially hazardous.
- Self-discharge at 3–5 percent per month means your spares inventory will drift if you're not rotating stock. A backup cartridge sitting on a shelf for 12 months will have lost 30–60 percent of its charge by the time you need it. Trickle-charge quarterly or establish a rotation policy.
The APCRBC140-CP shines in facilities running planned battery replacement programs — quarterly or semi-annual swaps triggered by load bank testing or aging protocols. It's your go-to cartridge for mid-range commercial UPS infrastructure refresh, especially if you're managing a fleet of identical CyberPower units across multiple sites. Not the answer for emergency backup in non-standard climates or edge environments — for those scenarios, explore lithium or modular battery platforms.
