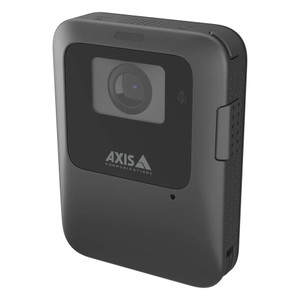

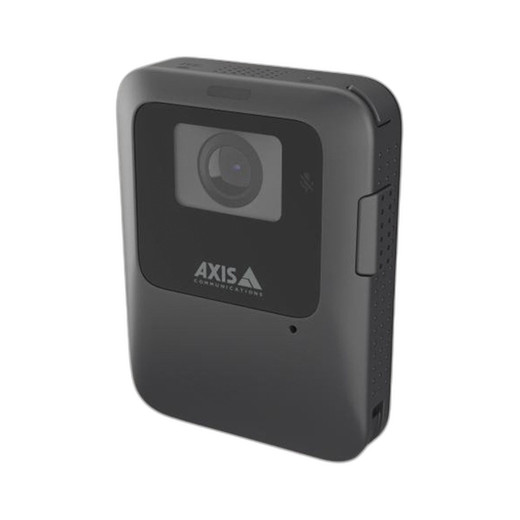

Axis 02680-004 W110 2MP Body Worn IP Camera
The Axis 02680-004 is a professional body-worn camera designed for law enforcement, security personnel, and mobile field operations where hands-free video documentation is essential. At 2MP Full HD (1920x1080), this lightweight unit delivers sufficient detail for incident review and evidence preservation while maintaining battery runtime across extended shifts. Unlike fixed-location surveillance, body-worn systems must balance image quality, battery longevity, and operational freedom—the W110 addresses these constraints by prioritizing wide contextual coverage and low-light capability over raw megapixel count.
Key Features
- 2MP Full HD (1920x1080) at 30 fps — adequate resolution for facial identification and evidence documentation without consuming excessive storage or battery power during long deployments.
- 140° horizontal field of view (90.5° vertical) — much wider than typical neck-worn cameras, capturing peripheral context that narrower lenses miss—critical for officer safety reviews and establishing situational context during incidents.
- 0.1 lux minimum illumination — enables usable footage in low-light conditions common to nighttime law enforcement without requiring built-in infrared illumination; pair with flashlight or environmental light for best results in complete darkness.
- Wide Dynamic Range (WDR) — balances bright and dark areas within the same frame, reducing over/underexposure when transitioning between indoor and outdoor environments or when strong backlighting is present.
- H.264 Zipstream encoding — compresses video efficiently, reducing file size and storage demand—especially valuable for body-worn systems where local storage is limited and cloud upload bandwidth is constrained.
- Integrated accelerometer with motion-triggered recording — automatically flags or initiates recording when movement is detected, eliminating hours of static footage and extending effective battery life during stationary duty periods.
- IP54 environmental rating — protects against dust ingress and water splash, suitable for outdoor patrols and unpredictable field conditions, though not rated for full submersion or sustained heavy rain.
- Built-in microphone with audio support — captures ambient sound, voice commands, and situational audio during interviews or confrontations, ensuring comprehensive incident documentation beyond video alone.
- Battery-powered operation — eliminates cable entanglement and provides true mobility, but requires disciplined charging protocols at shift changes and clear deployment time tracking to avoid mid-incident power depletion.
- Operating temperature range: -20°C to 45°C (-4°F to 113°F) — supports deployment across diverse climates, from cold-weather urban patrols to warm-region outdoor operations.
Integration & Compatibility
The Axis 02680-004 connects via wired connectivity, requiring integration into a management and docking infrastructure for charging, evidence upload, and retention workflows. Body-worn camera deployments typically involve a centralized evidence management platform (such as Axis Companion or third-party systems compatible with ONVIF-enabled devices) to handle file indexing, chain-of-custody logging, and archival. The accelerometer and event-triggered recording simplify compliance with administrative policies that require activation only during relevant encounters, reducing storage overhead. When selecting storage infrastructure, account for multiple units charging simultaneously and plan for backup power to maintain charging availability across shift transitions.
When to Choose a Different Model
If your deployment requires integrated infrared illumination for complete darkness recording, evaluate higher-end variants within the Axis body-worn line that include active night-vision capability. If resolution above 2MP is essential for long-range facial identification or zoom-based evidence review, consider stepping up within the Axis IP camera portfolio to higher-megapixel fixed or mobile platforms—though these trade portability for image detail. For indoor-only security deployments, a traditional fixed-location body-worn and fixed camera combination may reduce reliance on battery management entirely.
Frequently Asked Questions
Q: Does the Axis 02680-004 have built-in infrared night vision?
A: No. The W110 achieves 0.1 lux performance using sensor sensitivity and WDR processing, requiring ambient light or external illumination. In complete darkness, the camera will not produce usable footage. Pair with officer-mounted flashlights or consider supplemental IR lighting in planned low-light deployments.
Q: What is the typical battery runtime on a full charge?
A: Battery runtime depends on recording mode (continuous vs. motion-triggered), screen usage, and environmental conditions. Motion-triggered recording extends runtime significantly. Consult the manufacturer datasheet for specific runtime estimates under your operational profile, and establish charging docks at shift transitions.
Q: Can the Axis 02680-004 upload video automatically to a cloud or backend server?
A: The camera itself is battery-powered and designed for evidence docking and manual evidence transfer. Automatic cloud upload requires integration with a backend management system during charging cycles. Check your evidence management platform's compatibility with this model.
Q: Is the 02680-004 compatible with major VMS platforms like Milestone or Genetec?
A: Body-worn cameras typically feed evidence into dedicated body-worn management systems rather than traditional video management systems. Confirm compatibility with your organization's evidence platform before procurement.
Q: What format should I use for long-term storage of W110 video files?
A: H.264 Zipstream files are standard; store in a format recommended by your evidence management system for compliance and archival. Ensure your retention policy accounts for typical deployment timelines (shifts, weeks, or months depending on jurisdiction).
Q: Is the Axis 02680-004 drop-tested or rated for impact?
A: The IP54 rating covers dust and splash protection, not impact resistance. The lightweight design minimizes damage risk during falls or impacts, but no MIL-SPEC drop rating is documented. Confirm specific durability requirements with the manufacturer if drop testing is mandatory in your deployment scenario.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02680-004 solves a real friction point in body-worn deployments: balancing image quality with extended operational runtime. The 140° horizontal field of view is notably wide for a wearable platform—most chest-mounted cameras deliver 90°–110° at best. That extra 30° of horizontal coverage means fewer blind spots during pivots and turns, critical for officer safety reviews where context matters as much as facial detail.
Technical Highlights:
- 0.1 lux minimum illumination: Enables dim-light recording (dusk patrols, indoor building entries) without active infrared. Pair with ambient light or tactical lighting; don't expect usable footage in complete darkness without supplemental illumination.
- H.264 Zipstream encoding: Reduces file sizes 15–30% compared to standard H.264, meaningful when storage is local or upload bandwidth is metered. A 12-hour shift at 30 fps, Full HD will consume roughly 40–60 GB uncompressed; Zipstream brings that down proportionally.
- Integrated accelerometer with motion triggering: Stops the camera from recording hours of static parking lot footage or desk time. Activates recording only when movement is detected or manually triggered—extends battery life substantially during low-activity duty periods.
Deployment Considerations:
- Battery discipline is non-negotiable: Body-worn systems fail when officers encounter incidents with depleted batteries. Establish mandatory docking and charging protocols at shift transitions; monitor runtime estimates against shift length and recording patterns.
- No built-in IR illumination: The 0.1 lux performance relies on ambient light, not active night vision. Nighttime deployments require environmental light, flashlight pairing, or supplemental IR—plan accordingly for your typical patrol schedule.
- Wired connectivity for integration: Unlike wireless body cameras, the 02680-004 requires physical docking for evidence upload and charging. This simplifies chain-of-custody and offline storage but limits spontaneous remote uploads during operations.
The 02680-004 is best suited for uniformed patrol operations, correctional facility monitoring, and community policing scenarios where shift-based charging docks are available and the wide field of view justifies 2MP resolution. It's not ideal for undercover or plainclothes deployments where discrete charging infrastructure may be impractical, nor for environments where active night-vision capability is mandated.
