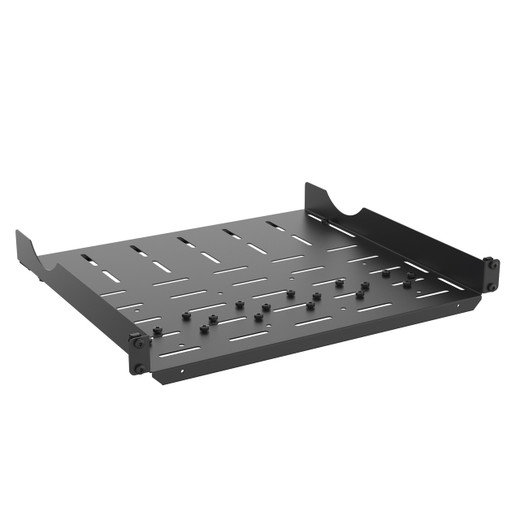

Axis 02321-001 TW8100 System Controller Rack Mount
The Axis 02321-001 is a professional rack-mount docking system engineered to consolidate up to five W800 System Controllers in a single 1U rack position. This is a direct answer to the operational friction point that emerges in large-scale surveillance deployments: five separate controllers scattered across equipment racks create cabling complexity, consume excessive floor space, and fragment administrative oversight. The TW8100 solves that by stacking five controllers vertically while maintaining full performance and security isolation between units.
Key Features
- Supports 5 W800 System Controllers in 1RU: Reduces physical footprint by approximately 80% compared to five standalone controller installations — a material gain in data center and server room real estate, especially in retrofit deployments where rack space is constrained.
- Dual Ethernet connectivity: Each docked controller retains independent network connectivity via dual Gigabit ports, eliminating the single point of failure inherent in shared-uplink designs. This matters if one network segment degrades; traffic can failover to the secondary interface without controller restart.
- Unified power distribution: Consolidates AC power delivery to all five controllers through a single rack PSU connection, simplifying cabling and reducing the number of individual power cables routing through cable trays.
- Passive cooling with optimized airflow: The rack form factor is designed to work within standard hot-aisle/cold-aisle data center ventilation. Controllers remain cooler than in clustered desktop installations because air circulation is predictable and unobstructed.
- Front-facing status indicators: LED diagnostics on the faceplate provide at-a-glance health visibility for each docked controller — useful during pre-dawn troubleshooting when remote monitoring dashboards may be secondary.
- Secure mounting chassis: Each controller slot includes mechanical retention to prevent accidental displacement during rack movement or maintenance work — a practical detail that avoids the "what fell out of the cabinet" scenario.
Integration & Compatibility
The 02321-001 is purpose-built for Axis W800 System Controllers. It does not dock other Axis controller models or third-party devices. Verify your current controller inventory before purchasing. The docking system itself is agnostic to the surveillance software running on the controllers — Axis Camera Station, VMS integrations via ONVIF, and third-party management platforms all function normally once controllers are docked. Network configuration, user authentication, and recorded video streams remain under the control of the individual W800 units; the TW8100 provides housing and power/network infrastructure, not centralized management.
Deployment Considerations
Install the TW8100 in a standard 19-inch equipment rack. Ensure at least 3 inches of clearance on either side for cable routing and airflow. Provide dual network connections (two Ethernet runs) to a managed PoE switch or core network; do not rely on a single uplink. Position the rack in an environment with stable temperature (ideally 32°F to 104°F / 0°C to 40°C) and low humidity. If your data center runs hotter, verify thermal margins with Axis documentation before committing to the purchase.
When to Choose a Different Model
If you operate fewer than three controllers, the footprint savings and cabling complexity reduction may not justify the cost of a dedicated docking chassis. Evaluate distributed mounting on a wall or shelf instead. If your W800 controllers require frequent field service or rotation between sites, a rack mount locks them into the data center, potentially increasing downtime if transport between facilities is necessary.
Frequently Asked Questions
Q: Does the TW8100 provide centralized video playback or management?
A: No. The 02321-001 is a housing and power/network delivery system only. Each docked W800 controller remains independent. You manage video, retention, and user access through the controller's native software or VMS integration — the TW8100 does not add a unified dashboard.
Q: Can I mix W800 controllers of different firmware versions in the same TW8100?
A: Yes. Each controller's firmware is independent. However, best practice is to keep versions synchronized to avoid unexpected interoperability issues if controllers need to share data or failover responsibilities.
Q: What power input does the TW8100 require?
A: Refer to the controller datasheet for individual unit power draw. The TW8100 is a passive docking chassis and does not supply power itself; power is delivered via standard rack PDU connections. Five W800 controllers typically consume 60–80 watts combined at full operation, so a standard 15A rack PDU circuit is adequate.
Q: Is the TW8100 compatible with non-Axis controllers?
A: No. The docking slots are mechanically and electrically designed exclusively for Axis W800 System Controllers. Do not attempt to dock other brands' controllers.
Q: Does the TW8100 support hot-swap insertion and removal of controllers?
A: Controllers can be safely inserted and removed, but do not perform hot-swap operations while controllers are under heavy processing load (e.g., during active recording or video export). Power down or pause operations first to avoid data corruption or file system errors.
Q: What is the recommended rack position — top, middle, or bottom?
A: Install in a mid-rack position (Rack Units 10–20) if possible, to optimize airflow and reduce heat accumulation. Avoid mounting directly above other high-heat equipment (such as PoE switches). Verify cable routing does not obstruct intake vents.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 02321-001 TW8100 addresses a genuine operational pain point in multi-controller surveillance deployments: space efficiency without sacrificing independent controller operation. Five W800 controllers consolidated into 1 rack unit eliminates the cable routing nightmare that emerges when controllers sit scattered across three or four shelf positions. The dual Ethernet architecture on each docked unit means you're not trading density for network reliability — each controller can failover to its secondary link if the primary segment experiences degradation.
Technical Highlights:
- 1RU footprint with 5-unit capacity: Reduces controller sprawl by roughly 80% — a material cost savings when floor space in a data center runs $2–5 per square inch per month. That compounds quickly over a three-year budget cycle.
- Dual independent Gigabit uplinks per controller: Each W800 retains its own network path, eliminating the single-switch failure scenario that forces all controllers offline simultaneously if a shared uplink fails.
- Passive chassis design: No fans, no active components in the TW8100 itself — it's a docking frame and power distribution rail. This means no additional failure points beyond the controllers themselves, and virtually silent operation in a server room environment.
Deployment Considerations:
- Verify W800 controller compatibility before purchase. The TW8100 docks only Axis W800 units. If your fleet is mixed with older or newer Axis controller generations, you'll need to confirm which models are compatible with this specific frame.
- Monitor thermal output during peak recording. Five controllers running simultaneous high-bitrate video streams in a single rack position will generate measurable heat. Standard data center airflow is usually sufficient, but retrofit deployments with poor hot-aisle/cold-aisle discipline may see thermal throttling. Verify your rack cooling strategy before installation.
- Plan for power redundancy. A single PDU circuit feeding all five controllers creates a power bottleneck. If that circuit fails, you lose five controllers at once. Consider dual-PDU wiring or a UPS with sufficient capacity to gracefully shut down controllers in sequence rather than an abrupt loss-of-power event.
The TW8100 is the correct choice for organizations consolidating three or more W800 controllers and operating a mature data center with disciplined rack management. It's less relevant for field deployments, remote sites, or installations where controllers rotate in and out of service frequently. For multi-site enterprises running distributed surveillance, the space and cabling savings often exceed the purchase cost within the first budget cycle.
