Axis TW1200 2MP Mini Bullet Body Worn Camera - 01952-001

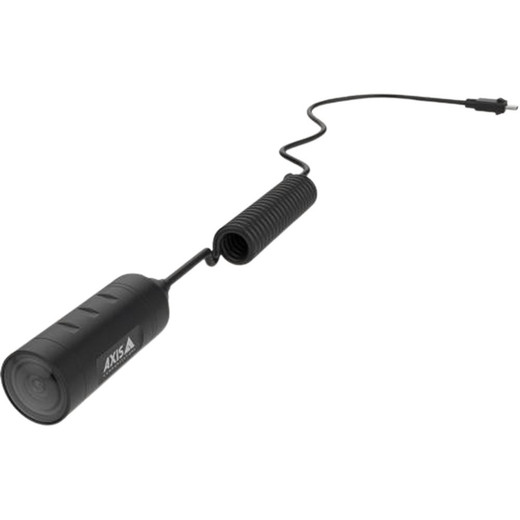

Axis 01952-001 2MP Mini Bullet Body Worn Camera

The Axis 01952-001 is a purpose-built body-worn video system for law enforcement, security patrols, and field operations where portable, weather-resistant video documentation is non-negotiable. This 2MP mini bullet form factor delivers 1920×1080 resolution in a package small enough for extended wear without degrading officer mobility or comfort. It functions as a straightforward video acquisition device—no audio, no post-processing features—designed to capture evidence in real time across unpredictable field conditions.

Key Features

• 2MP (1920×1080) Resolution: Captures sufficient facial detail and scene context for evidence documentation and investigative review. Not a replacement for stationary surveillance cameras, but adequate for identifying individuals and documenting events in the field.
• 141° Horizontal / 82° Vertical Field of View: Wide coverage means you capture context without panning—critical during dynamic situations where the operator's attention is divided. Wider FOV than typical fixed 3.6mm lenses on consumer-grade cameras.
• Wide Dynamic Range (WDR): Automatically balances bright and dark areas in a single frame. Meaningful when operating between sunny outdoor scenes and shadowed building interiors, a common scenario for law enforcement patrols.
• 0.1 Lux Minimum Illumination: Operates in near-darkness without supplemental lighting—essential for covert operations, night patrols, or low-light evidence capture where flash or visible illumination would compromise the operation.
• IP67 Weatherproof Rating: Dustproof and submersible to 1 meter for 30 minutes. Handles rain, dust, and splashing without special protective housing. Not rated for continuous submersion or high-pressure spray.
• H.264 Video Codec @ 30 fps: 30 frames per second ensures smooth motion capture during dynamic encounters. H.264 compression is universally supported by VMS platforms and body-worn management systems, with file sizes manageable for on-device storage and download workflows.
• Battery Power: No infrastructure dependency—deploy immediately without running cable or configuring network access. Verify runtime requirements against typical shift length; battery capacity and actual field conditions determine recording duration.
• 1/2.9-inch Sensor with 2.1mm Lens: Compact optical design supports the mini bullet form factor. The 2.1mm lens contributes to the 141° field of view; this is a fixed, non-adjustable lens, so framing and coverage are determined at deployment.
• Operating Temperature Range: -20°C to 55°C (-4°F to 131°F): Functions reliably in cold climates and hot climates without thermal shutdown. Temperature extremes encountered in outdoor patrol cycles—from winter early-morning shifts to summer midday operations—fall within this range.

Integration & Compatibility

The 01952-001 exports H.264 video via wired connectivity. Confirm your body-worn management system or VMS supports standard H.264 MPEG-4 Part 10 codec and the specific wired interface (USB, Ethernet, or proprietary connector—verify from your system's integration guide). This unit does not support ONVIF or RTSP streaming; it is not a network camera and requires a dedicated docking or download station for evidence extraction.

When to Choose a Different Model

If your deployment requires integrated audio recording, consider an alternate body-worn model in the Axis lineup that supports microphone input. If you need higher resolution (4MP or above) for facial recognition in low-light conditions, evaluate higher-megapixel variants in the same family. If you require infrared LED illumination beyond the camera's inherent 0.1 lux sensitivity, a model with supplemental IR may be necessary.

Frequently Asked Questions

Q: Does the Axis 01952-001 record audio?

A: No. The 01952-001 captures video only. There is no built-in microphone or audio input connector. Audio recording requires a separate system or an alternate body-worn model with audio support.

Q: What is the battery runtime on the Axis 01952-001?

A: Battery capacity and runtime are not specified in the available documentation. Contact the system integrator or manufacturer to confirm runtime duration and verify it meets your typical shift length before field deployment.

Q: Can the Axis 01952-001 be used for 24/7 surveillance?

A: No. This is a portable, battery-powered body-worn camera designed for shift-based field operations, not continuous stationary surveillance. Once removed, it must be recharged before the next deployment.

Q: Is the Axis 01952-001 compatible with Milestone XProtect or other enterprise VMS?

A: The 01952-001 is a body-worn camera, not a network IP camera. It connects via wired interface and requires a dedicated docking or management station for video extraction. Standard VMS integration is not supported. Confirm compatibility with your body-worn management platform.

Q: What is the lens adjustment range on the Axis 01952-001?

A: The lens is fixed at 2.1mm focal length. There is no manual focus, autofocus, or zoom capability. Field of view is fixed at 141° horizontal upon deployment.

Q: Is the Axis 01952-001 NDAA Section 889 compliant?

A: Compliance status is not stated in the available product documentation. If NDAA or FedRAMP compliance is a requirement, contact the manufacturer or your integrator for official certification documentation.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 01952-001 is a no-frills body-worn video system optimized for evidence documentation in field operations. Its 141° horizontal field of view and 0.1 lux sensitivity make it exceptionally practical for law enforcement environments where rapid framing and low-light capability directly support officer safety and investigation outcomes. The combination of wide coverage and extreme sensitivity means you capture usable evidence without requiring supplemental lighting or repositioning during critical moments.

Technical Highlights:

• 0.1 Lux Minimum Illumination: Operates in near-total darkness without IR supplementation—a genuine advantage when conducting night patrols or covert documentation where visible light would compromise the operation. Most consumer and mid-range body-worn alternatives start at 0.5–1 lux.
• 141° Horizontal / 82° Vertical FOV: Wide diagonal coverage captures context and bystanders automatically. Reduces the cognitive load on the operator during fast-moving situations where pan-and-zoom adjustments are impractical. Wider than typical 3.6mm fixed lenses on lower-cost alternatives.
• IP67 Rating with No Protective Housing Required: Submersible to 1 meter for 30 minutes handles rain, dust, and accidental splashing without external ruggedization. Reduces form-factor bloat and keeps the unit lightweight for all-shift wear.
• 30 fps H.264 Encoding: Smooth motion capture and universal codec support mean evidence downloads integrate seamlessly with existing body-worn management platforms and forensic review tools. File sizes remain manageable on modest storage.

Deployment Considerations:

• Battery runtime is not published. Verify against your expected shift length and operational cycle (continuous vs. intermittent recording) before committing to field deployment. This is a common oversight that results in mid-shift battery depletion.
• Fixed 2.1mm lens—no adjustment, no zoom. Framing is determined at deployment. If your protocol requires variable focal lengths or zoom capability, this model is not suitable.
• No audio. If multi-modal evidence (audio + video) is required, you'll need an alternate model or separate audio recording system.
• Wired connectivity only—requires docking station or tethered download for evidence extraction. Confirm your management system supports the 01952-001's connector type and data transfer protocol before procurement.

The 01952-001 is a fit for law enforcement agencies and security operations prioritizing lightweight, weather-resistant video documentation with strong low-light performance. It is not a solution for agencies requiring integrated audio, variable focal length, or continuous surveillance. Evaluate against your operational requirements around shift length, evidence modalities, and management infrastructure before purchase.
