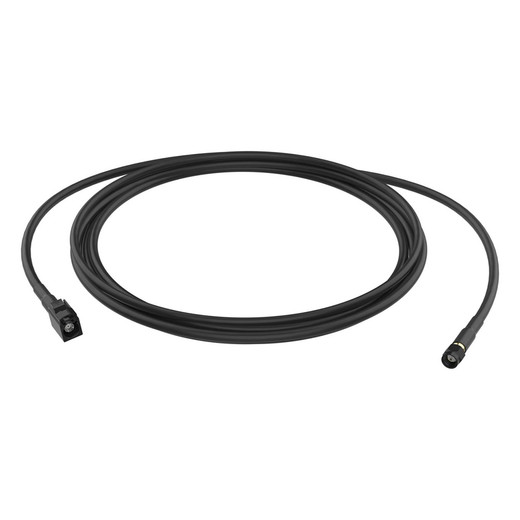

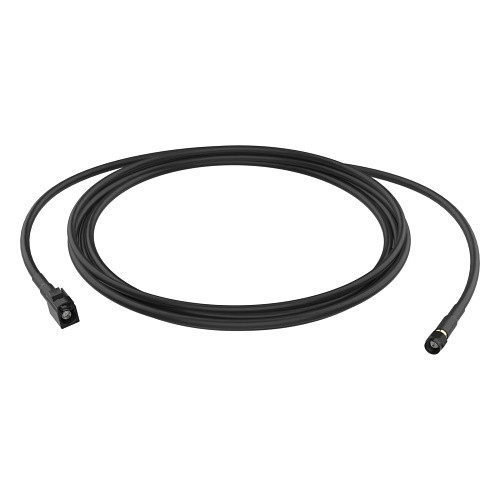

Axis 02252-001 TU6004-E 30m Outdoor Cable
Overview
The Axis 02252-001 is a 30-meter pre-terminated cable designed for extending connectivity in Axis modular camera systems. This second-generation cable carries power and video signals to Axis F-series modular camera heads—specifically the F21, F41, and F72 models—and is engineered for fixed outdoor deployments where run length matters more than flexibility. At 30 meters (98 feet), it bridges the gap between a central power supply or recorder and distant mounting points without requiring field termination or splitters.
Key Specifications & Deployment Benefits
- Cable Length: 30 meters (98 feet). Eliminates the need for intermediate power injectors or splitters on long camera runs. Reduces installation labor for warehouse, perimeter, or outdoor facility layouts where the camera head sits far from the power source. One cable carries both signal and power to the modular head.
- IP66 & IP6K9K Rating. Withstands direct water spray and high-pressure jets—critical for outdoor installations exposed to rain, washdown, or landscape irrigation. Not fully submersible (that requires IP67), so avoid full immersion or permanent wet environments; suitable for overhang or eave mounting.
- 40mm Minimum Bending Radius. The cable jacket tolerates tight routing around conduit bends and pole mounts without kinking or signal loss. Larger than some indoor patch cables, but small enough for most standard cable trays and outdoor conduit runs.
- Modular Compatibility. Factory-terminated connectors mate directly with Axis F21, F41, and F72 camera heads. No field soldering or RJ45 crimping required—plug-and-play integration reduces on-site wiring errors and commissioning time.
- 2nd Generation Design. Axis refined the jacket compound and connector sealing for this revision, improving durability in UV and thermal cycling scenarios typical of unshaded outdoor installations.
Integration & Compatibility
The 02252-001 integrates with any Axis modular surveillance system that uses F-series interchangeable heads. It carries both power and video on a single shielded cable, simplifying topology compared to separate copper and coax runs. Pair with an Axis camera station or ONVIF-compatible recorder to manage the video stream. For network planning, consult IP camera selection and deployment guides to validate your recorder's input capacity and PoE/power budget if you are daisy-chaining multiple modular units.
When to Choose a Different Model
If you need runs shorter than 30 meters and prefer flexibility in routing, consider Axis modular cables in shorter lengths (available in 10m and 20m variants). For fully submersible outdoor environments (pools, submersed sensor boxes), upgrade to an IP67-rated variant if Axis offers one in your region. If your camera head is indoors and the cable will never see moisture, a standard indoor patch cable will cost less and work equally well.
What's in the Box
- 1× Axis TU6004-E 30m Cable (model 02252-001)
Frequently Asked Questions
Q: Can I use the 02252-001 with non-Axis modular heads?
A: No. The 02252-001 is terminated with Axis-specific connectors designed for F-series heads only. Do not attempt to adapt or reterminate; it will void warranty and risk equipment damage.
Q: Is the cable suitable for direct burial?
A: No. IP66/IP6K9K rating protects against spray and jets, not soil moisture over months or years. For buried runs, use conduit or a cable rated for direct bury (not this product).
Q: What is the maximum pull tension when installing the cable?
A: Consult the Axis datasheet for the TU6004-E series; typical telecom cable limits are 25–50 lbs tension. Pulling harder risks internal conductor damage and impedance issues.
Q: Does the 02252-001 support power-over-ethernet (PoE)?
A: No. This cable is designed for traditional 12VDC or 24VAC power supplies connected at the recorder or control unit. It is not a network Ethernet cable; it carries analog or proprietary video and power signals only.
Q: Can I extend the cable beyond 30 meters with a coupler?
A: Not recommended. Couplers introduce impedance mismatches and reduce signal integrity over long runs. If you need a longer run, contact Axis for custom cable options or redesign the layout to use a relay power injector closer to the camera head.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02252-001 solves a real installation problem: modular camera systems need long, pre-terminated runs to minimize field labor and termination errors. At 30 meters, this cable eliminates one intermediate splitter or power injector from your topology, which cuts BOM cost and simplifies troubleshooting downstream.
Technical Highlights:
- 30-Meter Single Run: Eliminates the need for mid-span power injection on camera routes up to 98 feet. Saves roughly $50–150 per site in splitter hardware and labor.
- IP66 & IP6K9K Resilience: Rated for direct spray and washdown jets, but not full submersion. Deploy with confidence in exterior wall-mounted or overhang scenarios; do not fully bury or submerge.
- 40mm Bending Radius Compliance: Tight enough for pole and conduit routing without kinks, flexible enough to avoid costly wide-arc conduit bends on existing infrastructure.
Deployment Considerations:
- This cable is not a substitute for network Ethernet—it carries proprietary analog or power/video signals only. Pair it with a dedicated power supply or modular controller, not a standard PoE injector.
- Watch the UV exposure if the cable runs exposed on south-facing walls or unshaded cable trays for years; IP66 sealing is excellent, but jacket degradation can occur in harsh UV climates. Consider conduit or UV-shrink wrapping for long-term exterior runs in intense sunlight zones.
Best fit: fixed outdoor perimeter or warehouse deployments where you have a central power distribution point 30 meters or less from each modular camera head, and field termination or daisy-chaining would introduce unacceptable risk or cost. If your site layout demands multiple splitters or relay injectors, consolidating runs with the 02252-001 pays for itself in labor and connector reliability.
