Axis TQ1817-VE Surveillance Cabinet

Axis TQ1817-VE Surveillance Cabinet

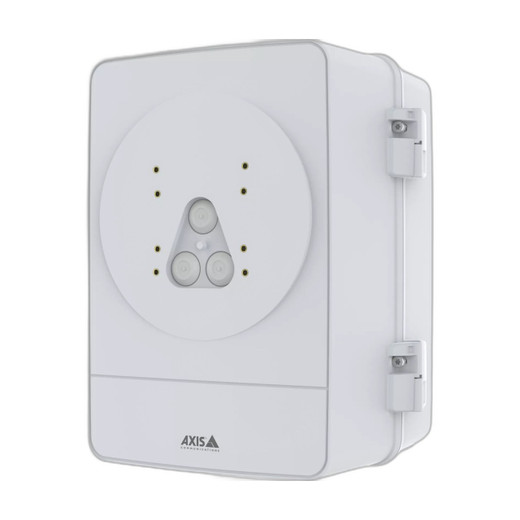

The Axis TQ1817-VE Surveillance Cabinet (SKU: 03085-001) is a heavy-duty outdoor enclosure purpose-built for system integrators deploying surveillance infrastructure in harsh, high-vandalism environments. Constructed from stainless steel and polycarbonate, this cabinet delivers exceptional durability and corrosion resistance without compromising internal space for auxiliary equipment and accessories.

Key Features

• IP66 rating: dust-tight, resistant to powerful water jets
• IK10 rating: protection against high-impact vandalism
• NEMA 4X corrosion resistance for coastal and chemically harsh climates
• Operating temperature range: -40°C to 75°C for extreme-weather deployment
• Pre-mounted DIN rail, cable gaskets, brackets, clamps, and power cover included
• Extended internal depth for flexible equipment mounting
• Compatible with Axis accessories and system devices

Technical Specifications

• Material: Stainless steel and polycarbonate construction
• IP Rating: IP66 (complete dust protection, powerful water jet resistance)
• Impact Rating: IK10 (high-impact vandal protection)
• Temperature Range: -40°C to 75°C continuous operation
• Included Components: DIN rail, cable gaskets, mounting brackets, clamps, cable straps, power cover

Applications & Use Cases

The TQ1817-VE cabinet is ideal for outdoor surveillance deployments in demanding environments including:

• Coastal and marine installations where salt-spray corrosion is a concern
• Industrial facilities and manufacturing yards with high-impact risk
• Critical infrastructure requiring extended temperature tolerance
• Remote or unmanned monitoring stations requiring compact equipment housing
• Multi-camera system consolidation with power supplies, media converters, and surge protection

Installation & Integration

Ships empty but fully pre-fitted with mounting hardware and cable management components. The cabinet accepts Axis power supplies (DIN-rail mounted), media converters, surge protection modules, wireless routers, and related system components. Design emphasizes rapid on-site commissioning with pre-mounted fittings, cable entry glands, and internal organization features that reduce labor and improve cable management. Modular design permits stand-alone deployment or integration as part of larger cabinet assemblies using compatible Axis door and enclosure options.

Warranty & Support

Three-year manufacturer warranty provides extended reliability assurance for mission-critical deployments.
