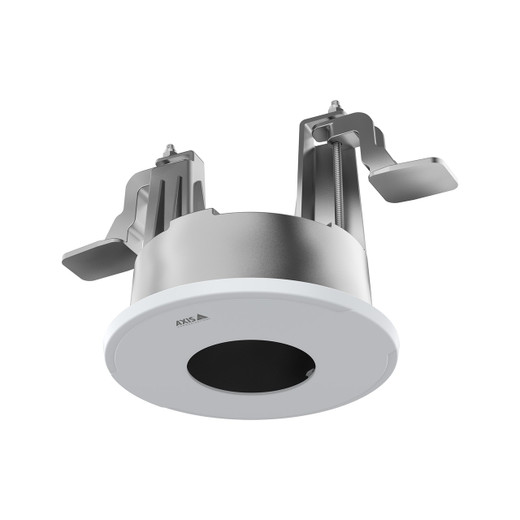

Axis 02454-001 TM3209 Discreet Recessed Ceiling Mount
The Axis 02454-001 is a recessed ceiling mount designed to conceal Axis IP cameras within drop-ceiling installations. When aesthetics matter — retail environments, corporate offices, hospitality spaces — visibility of surveillance hardware can undermine customer experience or trigger privacy concerns. This mount solves that problem by allowing cameras to sit nearly flush with the ceiling tile, maintaining a professional appearance while keeping coverage active.
Key Features
- Aluminum Construction: The mount body is fabricated from aluminum, delivering rigidity and long-term durability. Aluminum resists corrosion better than steel in humid indoor environments, reducing maintenance overhead over a 5–10 year deployment cycle.
- White Finish: Powder-coated white matches standard drop-ceiling tile color and most ceiling grids. This integration means the 02454-001 won't stand out visually — a critical requirement in spaces where subtle surveillance is essential.
- Weight: 2.5 lbs: Light enough to mount securely without over-stressing ceiling grid hardware, yet substantial enough to provide stable support for camera weight without flex or vibration.
- Discreet Profile: The mount is engineered for recessed installation — the camera body seats into the ceiling cavity, with minimal protrusion. This depth allows the lens to frame the scene while the camera housing remains hidden above the tile line.
Compatibility
The 02454-001 is specifically engineered for Axis compact and mid-range domes. Confirmed compatible models include the M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3085-V, M3086-V, M3088-V, and M2075-V. Before ordering, cross-reference your specific camera model against this list; attempting to mount an incompatible casing may result in mechanical stress or improper lens alignment.
Integration Considerations
Installation into drop-ceiling grids requires basic mechanical fastening — you'll anchor the mount to the grid frame or structural hangers using standard hardware. The recessed design assumes a minimum ceiling cavity depth of approximately 4–6 inches above the tile line; verify your space has adequate clearance before procurement. The mount itself provides no cable management — plan your network video recorder cabling and PoE routing independently, as conduit or raceway runs must be coordinated with the mounting location.
In deployment scenarios such as retail loss-prevention networks or office entry-point monitoring, the 02454-001 (often searched as 02454 001) allows you to maintain coverage without aesthetic compromise. Compared to surface-mounted domes or wall-bracket configurations, recessed installation reduces visual clutter and blends surveillance into the built environment — a factor that influences both customer perception and regulatory compliance in privacy-sensitive sectors.
When to Choose a Different Mount
If your application requires outdoor exposure, wall mounting, or a larger form-factor camera, look to the broader mounting accessory range in the Axis catalog. For cameras exceeding roughly 1 lb or featuring external housings, verify compatibility with the manufacturer before purchase. The 02454-001 is optimized for compact, integrated housings; oversized or modular designs may not seat correctly.
What's in the Box
Frequently Asked Questions
Q: Can the 02454-001 be installed in solid drywall or plaster ceilings?
A: No. The mount is engineered for suspended drop-ceiling grids. Solid ceilings require a different mounting approach and fastening strategy.
Q: What is the maximum camera weight the 02454-001 supports?
A: The mount is rated for compact Axis dome casings, typically under 1 lb. Verify the specific weight of your camera model against the compatibility list before installation.
Q: Does the mount include ceiling grid hardware?
A: No. The 02454-001 is the mount only. You will need standard drop-ceiling grid fasteners (T-bar clips, hangers, or frame anchors) appropriate to your grid type.
Q: Will the mount fit inside standard 2×2 or 2×4 ceiling tiles?
A: The recessed design requires a cavity above the tile line. Confirm your ceiling grid depth and tile cutout size match the mount footprint before ordering.
Q: Is the white finish UV-stable or subject to yellowing?
A: The powder coat is designed for indoor use. In spaces with high UV exposure (skylights, extensive glazing), slight discoloration may occur over years of exposure, though this does not affect structural integrity.
Q: Can multiple 02454-001 mounts be installed in the same ceiling grid?
A: Yes, as long as the grid structure can support the load of multiple mounts and cameras. Consult your ceiling grid manufacturer's load limits and plan spacing to avoid mechanical interference.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02454-001 solves a specific integration problem: how to mount compact surveillance optics in drop ceilings without aesthetic compromise. At 2.5 lbs, the aluminum housing is light enough for standard ceiling grid attachment hardware but rigid enough to eliminate vibration-induced jitter at 30 fps and beyond — a detail that matters when you're reviewing recorded footage months later and need clear facial recognition or license-plate reads.
Technical Highlights:
- Aluminum + White Powder Coat: The material choice directly addresses corrosion in humid indoor environments (retail, hospitality, facilities with HVAC moisture). Aluminum won't rust or require repainting over 10 years. White finish integrates with standard ceiling tile color (off-white, 0.80 reflectance) — visual blending is the whole point.
- 2.5 lbs Design Weight: Critical for drop-ceiling grids rated for 2–3 lbs per tile. The mount doesn't trigger reinforcement of the grid, reducing installation complexity and cost. Heavier mounts (4+ lbs) often require structural hangers — this one doesn't.
- Compact Casing Compatibility: The M30-series and M60-series compact domes (M3064-V through M3088-V) are designed for tight ceiling cavities. The TM3209 is engineered for *these specific dimensions* — mixing it with larger housings or third-party casings invites mechanical binding or lens misalignment.
Deployment Considerations:
- Cavity Depth Requirement: Drop ceilings must have 4–6+ inches of clear space above the tile line. If your ceiling grid sits directly atop structural decking with minimal gap, the mount won't work. Measure first.
- Grid Hardware Compatibility: The mount fastens to the grid frame, not the tile. If your ceiling uses non-standard T-bar geometry or lighter-gauge aluminum grid, test-mount one unit on-site before committing to a multi-camera deployment. Grid failures are installation problems, not product failures, but they're costly to troubleshoot.
- Cable Routing Complexity: Recessed mounting hides the camera but complicates PoE cable runs. Plan conduit or raceways *above* the tile line before you mount. In retrofit scenarios, you may need to fish cable through existing drop-ceiling cavities — tedious, but unavoidable.
The 02454-001 is the right choice for retail loss-prevention networks, corporate entry-point monitoring, and hospitality environments where overt surveillance hardware damages brand perception. It's *not* suitable for outdoor, high-temperature, or high-shock environments. Use it in controlled indoor spaces where aesthetics and coverage coexist as non-negotiable requirements.
