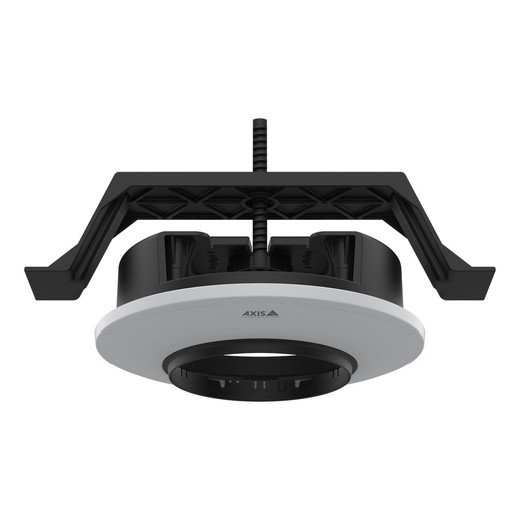

Axis 02509-001 TP3203 Ceiling Recessed Mount
Overview
The Axis 02509-001 is a purpose-built ceiling recessed mount designed to integrate Axis IP cameras flush with existing drop ceilings or drywall. The mount allows the camera dome to protrude while the body and mounting hardware remain concealed, delivering a clean finish that blends into professional environments where visual discretion matters. This accessory solves a common installation constraint: mounting a dome camera without the industrial-grade bracket dominating the ceiling line.
Key Features
- Recessed Installation Profile: The 02509-001 embeds into your ceiling structure, leaving only the dome visible. This approach reduces visual clutter in spaces where aesthetics influence occupant perception — lobbies, retail environments, and corporate offices where visible security hardware can feel intrusive or heavy-handed.
- Single-Screw Attachment: Mounting uses one fastener to secure the camera body once the recessed frame is in place. Faster than multi-point systems and reduces the number of penetration points through ceiling material, lowering installation labor and material costs on large deployments.
- Height Adjustability: The mount offers adjustable depth to accommodate ceiling thickness variation and camera positioning needs. Useful when fine-tuning vertical angle without rotating the camera itself — a capability that matters when you cannot rotate the fixture or need a specific downward-looking angle.
- Compatibility with P32-Series Cameras: Works with select Axis dome cameras in the P32 product line. Verify your specific model against the compatibility list before ordering; not all P32 variants are supported by the 02509-001.
- Durable Construction: Manufactured from high-quality materials engineered to withstand repeated mounting cycles and vibration from HVAC or structural movement. This translates to fewer remounts and warranty claims on retrofit jobs.
- Neutral Finish: The mount ships in a neutral color that blends into most ceiling colors and finishes, reducing the need for field painting or secondary finishing work.
Integration & Compatibility
The 02509-001 is designed exclusively for select Axis dome cameras in the P32 series. Before purchase, cross-reference your target camera model against the manufacturer's compatibility matrix. Installation into ceiling cavities requires adequate space for the mount body; verify overhead clearance at the installation site. The recessed approach works best in drop-ceiling environments (suspended tile or modular ceilings) or solid drywall with backing. Concrete, metal deck, or heavily insulated attics may require alternate mounting solutions.
Consider this accessory as part of a broader camera selection and mounting strategy. Recessed mounting trades off some ease of angle adjustment for aesthetic benefit; if frequent repositioning is anticipated, a pendant or wall-mount approach may prove more flexible in the long term.
What's in the Box
- Axis TP3203 Ceiling Recessed Mount (02509-001)
- Mounting hardware and installation fasteners
- Installation instructions
Frequently Asked Questions
Q: Is the 02509-001 suitable for outdoor ceilings or covered areas?
A: No. The TP3203 is rated for indoor use only. Outdoor or wet environments require weatherproof mounting solutions; consult the product documentation for weather-rated alternatives in the Axis mount portfolio.
Q: Can the 02509-001 be used with cameras outside the P32 series?
A: The mount is engineered specifically for select P32-series Axis cameras. Compatibility with other Axis models or non-Axis cameras is not supported. Always verify model compatibility before purchase.
Q: How much ceiling depth is required for the recessed mount?
A: The recessed frame depth varies; consult the installation instructions or the manufacturer's datasheet for exact cavity depth requirements. Most drop ceilings (8–12 inches) accommodate the mount, but verify before cutting or modifying ceiling material.
Q: Does the 02509-001 affect camera viewing angle or lens performance?
A: The recessed design does not degrade optical performance. The camera dome protrudes fully, and the mount supports vertical angle adjustment. Horizontal angle (pan) is achieved through camera rotation, not the mount itself.
Q: What is the warranty on the 02509-001?
A: Standard Axis accessory warranty applies. Confirm the specific warranty term with the manufacturer or authorized supplier at time of purchase.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02509-001 solves a specific problem: deploying a P32-series dome camera in drop-ceiling environments without the mounting bracket becoming a visual anchor. I've found this most valuable in retrofit jobs where the client cares about preserving ceiling aesthetics — retail stores, hospitality spaces, and corporate hallways where security hardware should disappear. The single-screw fastening and adjustable height are practical touches that shorten installation time compared to traditional pendant mounts, and the neutral finish eliminates field finishing work.
Technical Highlights:
- Recessed Profile: Mount body sits flush within the ceiling cavity, leaving only the dome visible. Reduces visual obstruction in spaces where occupant comfort or brand presentation matters — quantifiably shorter install labor on multi-camera indoor deployments versus wall or pendant alternatives.
- Single-Screw Attachment: One fastener secures the camera after the recessed frame is positioned. Fewer penetration points mean fewer potential leak paths in ceiling cavities and faster commissioning when deploying across dozens of locations.
- Height Adjustability: Allows vertical angle fine-tuning without rotating the camera, useful when the target coverage area requires a specific downward pitch that the camera body alone cannot deliver.
Deployment Considerations:
- Verify P32-series camera compatibility before order — not all P32 variants are supported by the 02509-001. Cross-reference the model matrix in the installation guide.
- Measure ceiling cavity depth before cutting. Most standard drop ceilings accommodate the mount, but concrete decks, metal frames, or heavily insulated attics may rule out recessed mounting entirely.
- Recessed mounting trades repositioning flexibility for aesthetics. If future angle adjustments are probable, consider whether a pendant or wall mount would be more adaptable over the camera's lifecycle.
Deploy the 02509-001 in indoor drop-ceiling environments where discretion and visual integration outweigh angle adjustment frequency — retail loss-prevention networks, hotel lobbies, and corporate offices are ideal candidates. It is not a universal mount; it is a purpose-built solution for a narrow, high-value use case.
