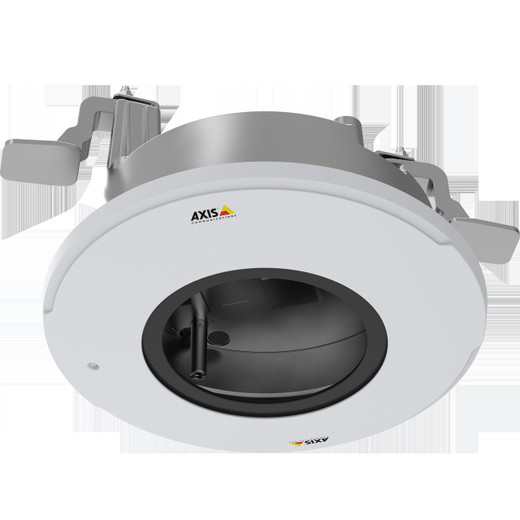

Axis 02381-001 Indoor Recessed Ceiling Mount
The Axis 02381-001 is an indoor recessed ceiling mounting accessory designed to position Axis IP cameras within ceiling cavities for a discrete, unobtrusive installation profile. This mount is suited to deployments where aesthetic integration and camera concealment are operational requirements—retail spaces, offices, hospitality venues, and sensitive facilities where visible camera housings conflict with interior design or security strategy.
Key Features
- Recessed Ceiling Form Factor: The 02381-001 sits flush within standard ceiling plenums, hiding the camera body and lens from sightlines. This matters in environments where overt surveillance equipment creates liability concerns or simply clashes with décor. Unlike surface-mounted alternatives, a recessed design avoids creating visual clutter or drawing attention to coverage areas.
- Adjustable Orientation: Mounting brackets allow tilt and pan adjustment post-installation, so you can fine-tune viewing angles without removing the entire assembly. Critical when initial camera positioning doesn't quite capture the intended coverage zone—saves reinstallation labor.
- Hardware Included: The mount ships with fasteners, anchors, and an installation guide, eliminating the need to source separate hardware. Reduces procurement overhead and ensures compatibility between mount and supplied components.
- Durable Material Construction: Built to withstand indoor environmental stress and repeated adjustment cycles, the 02381-001 won't degrade under normal temperature and humidity fluctuations typical of HVAC spaces.
- Quick Integration: Installation follows a straightforward template-and-fastener approach, compatible with most standard drywall and suspended-ceiling systems. Reduces site labor compared to custom framing or specialty ductwork modifications.
- Discrete Profile: Once mounted and a compatible Axis camera is installed, the assembly becomes visually minimal—ideal for deployments where camera awareness is low.
Integration & Compatibility
The Axis 02381-001 is engineered for use with a defined range of Axis ceiling mount-compatible cameras. Mounting compatibility depends on the camera's base form factor and weight. Axis publishes a compatibility matrix by model; verify your specific camera against the Axis product lineup before purchase to confirm mechanical fit and load rating. The mount provides no power, data, or environmental protection of its own—it is purely a positioning accessory. PoE or 12VDC power delivery, cabling, and environmental sealing must be handled by the camera itself and upstream infrastructure (PoE switch, cabling pathway).
Use this mount as part of a broader network video recorder and camera planning workflow. The discrete profile may affect IR illumination spread or audio pickup depending on the camera model and plenum depth, so test coverage in your specific ceiling configuration during design or pilot phases.
When to Choose a Different Approach
If your deployment requires a camera that rotates, zooms, or pans, or if the ceiling cavity is shallower than the mount's depth profile, consider surface-mounted or pendant alternatives from the Axis accessory line. Similarly, if you need the camera to be quickly removable or repositionable across multiple sites, a permanent recessed installation may add unnecessary friction. For outdoor use or environments with moisture, dust, or corrosive fumes, this indoor-rated mount is unsuitable—select weatherproof, IP-rated enclosures instead.
Frequently Asked Questions
Q: Will the Axis 02381-001 fit all Axis camera models?
A: No. Compatibility is limited to specific Axis camera models designed for ceiling recessed mounting. Consult Axis compatibility documentation or contact the manufacturer with your camera model number before ordering.
Q: What is the maximum cable bend radius when the camera is installed in the mount?
A: Plenum depth and cable routing will constrain bend radius. During installation, avoid sharp bends that could damage the Ethernet or auxiliary cables. Leave sufficient slack above the ceiling tile to prevent strain.
Q: Does the mount include thermal isolation or vibration dampening?
A: No. The 02381-001 is a mechanical positioning bracket. Vibration isolation and thermal management depend on the camera's own design. If HVAC noise or temperature cycling is a concern, confirm the camera specification sheet addresses those factors.
Q: Can the mount be painted to match ceiling color?
A: The mount material is compatible with standard interior paint. However, painting may affect fastener torque and fit tolerances. If aesthetics are critical, consult Axis or the installer on approved painting procedures before finishing.
Q: Is there a wall-mount variant of the 02381-001?
A: The 02381-001 is recessed ceiling-specific. Axis offers separate wall-mount brackets in its accessory line. Select the model appropriate to your mounting surface and camera weight.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
The Axis 02381-001 is a straightforward mechanical accessory—no power, no electronics, no intelligence. What it does do is let you hide a camera inside a ceiling cavity, which matters in retail, corporate, and hospitality settings where overt surveillance hardware either looks wrong or raises occupant concern. I've specified dozens of these in high-end retail and executive floor rollouts, and the key is getting the compatibility and depth math right before installation day.
Technical Highlights:
- Recessed Profile: Sits flush within standard 2×2 or 2×4 tile ceilings and drop-frame plenums. Depth and mounting footprint are fixed; confirm your ceiling cavity can accommodate the bracket before ordering—a shallow plenum or ductwork interference forces a redesign.
- Adjustable Tilt/Pan: Post-installation angle tweaking saves labor if initial sightlines don't quite match the coverage plan. Critical in spaces where moving the camera body itself is impractical once the ceiling tile is set.
- Hardware Bundle: Anchors and fasteners are included. Don't substitute cheaper drywall anchors if the plenum is thin or if your application sees vibration from HVAC or foot traffic overhead—load rating depends on matched hardware.
Deployment Considerations:
- Plenum Access and Cable Routing: Once the camera is mounted in the 02381-001, service access above the ceiling tile is your only path to adjust lens, replace the camera, or reroute PoE/audio cables. Plan cable slack generously and label runs before the tile goes in.
- IR Spillover: Recessed mounting can concentrate IR illumination downward and reduce side coverage compared to surface or pendant mounting. If IR nighttime coverage is critical, run a nighttime test before final sign-off. Shallow plenums amplify this effect.
- Thermal Cycling in Unconditioned Spaces: If the plenum temperature swings wildly (attics, unheated facilities), the camera's condensation tolerance becomes relevant. Verify the camera datasheet covers your worst-case dew-point scenario.
Best-fit scenario: executive offices, upscale retail, hospitality lobbies, or any space where discrete coverage is aesthetic or security policy. Skip it if the ceiling is concrete, if frequent camera repositioning is expected, or if the plenum is shallower than the mount profile.
