Axis TA1901 DIN Rail Clip - 02685-021

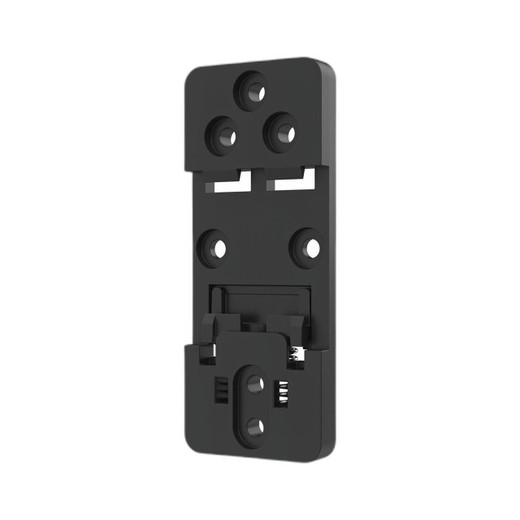

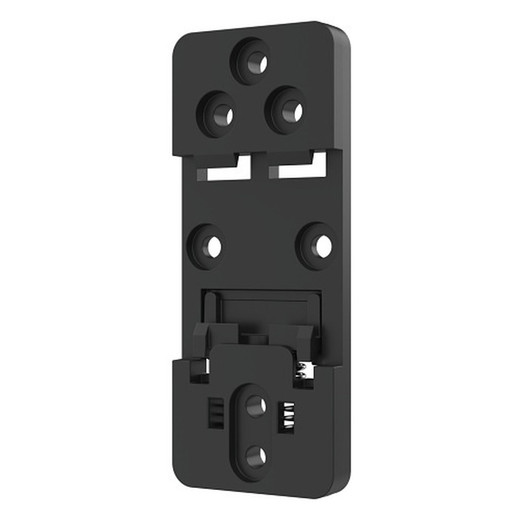

Axis 02685-021 DIN Rail Clip

Overview

The Axis 02685-021 is a purpose-built mounting bracket designed to secure Axis network door controllers and network I/O relay modules onto standard 35mm DIN rails. This accessory addresses a common integration requirement in access control installations: reliable, repeatable mounting of control logic modules in electrical enclosures and control cabinets. If you're deploying Axis access control modules, you need a consistent way to position them on DIN rail infrastructure without improvisation or site-built workarounds.

Key Features

• 35mm DIN Rail Compatibility: Mounts securely to standard 35mm DIN rails, the industry-wide mounting standard in electrical enclosures and control cabinets. No custom drilling or adapter plates required.
• Designed for Axis Door Controllers: Fits Axis network door controllers and Axis network I/O relay modules without modification. Precision-engineered for these specific form factors, ensuring a tight mechanical fit and eliminating play during installation or vibration.
• Straightforward Installation: No special tools or mounting templates needed. The clip slides onto the DIN rail and locks in place, reducing installation labor and the risk of field-mounted misconfiguration.
• Stability and Durability: Metal construction withstands typical cabinet environments. Holds the module securely even in installations where vibration or thermal cycling occurs—common in industrial settings or outdoor electrical enclosures.

What's in the Box

• 1x Axis TA1901 DIN Rail Clip
• Installation Guide

Deployment Context

The 02685-021 (often searched as 02685 021) is essential if you're building a centralized access control system using Axis network door controllers. In a typical deployment, the door controller mounts in an electrical enclosure alongside a PoE switch, an optional UPS, and supplementary relay modules. DIN rail mounting keeps the control logic organized and allows for future expansion without cabinet redesign. This clip ensures that each module sits at the correct height and spacing for cable management and thermal airflow.

Choose this clip if you are deploying Axis controllers in a structured cabinet environment. If your installation is simpler—for example, a wall-mounted single-door controller with an external housing—you may not need a DIN rail solution. Verify the specific Axis module model before ordering to confirm compatibility.

Frequently Asked Questions

Q: Which Axis modules does the 02685-021 fit?

A: The clip is designed for Axis network door controllers and Axis network I/O relay modules. Confirm the specific model number of your Axis module against the product documentation before purchase.

Q: Can I use this clip on a 50mm DIN rail?

A: No. The 02685-021 is engineered for 35mm DIN rails only. Using it on 50mm rail will result in poor fit and potential module instability.

Q: Does this clip require any additional hardware?

A: The clip itself includes all mounting hardware. No additional brackets or fasteners are needed for standard DIN rail installation.

Q: Is the clip suitable for outdoor or harsh environments?

A: The clip is designed for use within electrical enclosures and control cabinets. If the enclosure itself is rated for outdoor or NEMA 4X service, the clip will perform within that environment as long as the cabinet provides appropriate environmental protection.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02685-021 is a straightforward but essential component for any centralized access control build. If you're standardizing on Axis network door controllers, this DIN rail clip eliminates improvisation and ensures repeatable, code-compliant cabinet layouts. The clip's precision fit to 35mm rail is not negotiable in industrial or enterprise cabinet environments—loose or misaligned module mounting can lead to cable stress, thermal issues, and reliability problems during the life of the system.

Technical Highlights:

• 35mm DIN Rail Geometry: Engineered for exact fit on standard 35mm DIN rail, eliminating rocking or lateral movement under vibration. In a shipping facility or manufacturing plant where electrical enclosures experience thermal cycling and mechanical stress, a secure mount matters—loose modules can damage adjacent hardware or fail prematurely.
• Designed for Axis Controllers: This clip is tailored to the physical form factor of Axis network door controllers and I/O relay modules, not a generic bracket. That means cable routing, ventilation gaps, and module spacing are optimized, not approximated.
• Straightforward Installation: No special tools, alignment jigs, or custom site engineering. The clip slides onto rail and locks—reducing on-site labor and the risk of field-constructed mounting solutions that fail inspection or code review.

Deployment Considerations:

• Verify the exact Axis module model before ordering. The clip is specific to Axis controllers and I/O modules; using it on third-party hardware will not work.
• Ensure your electrical enclosure or cabinet uses 35mm DIN rail. If your site uses 50mm rail or an alternative mounting standard, this clip is not compatible—request the correct variant.
• Plan cable routing and thermal airflow around the mounted modules. While the clip itself is passive, proper spacing between mounted controllers is essential in enclosures with high component density.

Deploy the 02685-021 in any access control cabinet where Axis network door controllers or I/O relay modules are part of a centralized system architecture. This is the correct choice for enterprise-scale installations, distributed multi-door access control systems, and any environment where cabinet organization and code compliance are requirements.
