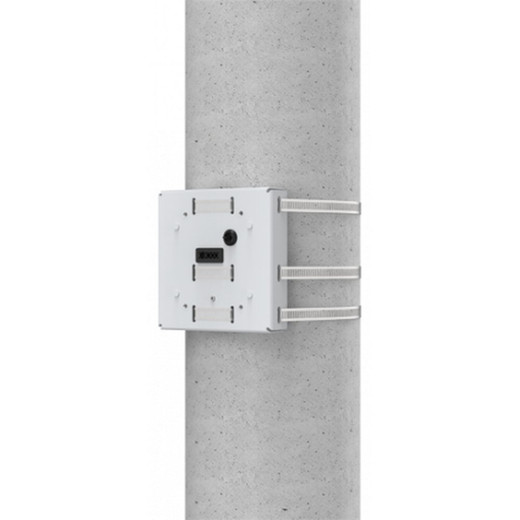

Axis 5901-341 Pole Mount
The Axis 5901-341 is a stainless steel pole mount engineered for PTZ and positioning cameras in outdoor and exposed installations. Built to handle poles ranging from 60–400mm (2.4–15.7 inches) in diameter, this accessory delivers the durability and corrosion resistance demanded by perimeter surveillance, traffic monitoring, and coastal deployments where weather and impact are constant concerns.
Key Features
- Stainless Steel Construction: Premium stainless steel resists corrosion in salt spray, humid, and industrial environments — a practical choice if your site sits near coastline, in high-pollution zones, or subject to frequent washdowns.
- IK10 Impact Rating: Rated to withstand 20 joules of directed impact without cracking or deforming. This matters in high-vandalism zones or where equipment sits near machinery, loading docks, or pedestrian traffic. Equivalent to a 5 kg steel ball dropped from 1.6 meters.
- Three Stainless Steel Straps: Accommodate poles from 60–400mm diameter without requiring custom adapters or shims. The wide range eliminates the need to stock multiple mount styles for different pole sizes on a multi-site deployment.
- Sealing Gaskets at Cable Entry: Integrated gaskets prevent insects and moisture from entering the junction between cable and housing. Not a substitute for proper cable grommet sealing, but a practical secondary barrier in dusty or wet environments.
- Secure Fastening for Positioning Units: Engineered to eliminate vibration and drift when mounting motorized pan-tilt-zoom cameras or positioning units. Critical for image stability during PTZ movement and long-term reliability of pan-tilt bearings.
- Compatible with Axis Positioning Cameras: Works with the full range of Axis IP cameras equipped with standard positioning mounts — simplifies inventory management when standardizing on a single bracket family.
Integration & Compatibility
The 5901-341 is designed exclusively for Axis positioning cameras and positioning units. If you're deploying an Axis PTZ camera, verify that your specific model supports the standard positioning mount interface. For non-Axis PTZ cameras or fixed cameras from other vendors, consult the manufacturer's mount compatibility matrix — third-party mounting solutions exist but require separate evaluation.
Pair this mount with PoE network switches to power your positioning camera and eliminate running separate DC supply cables up the pole. A well-planned cable route minimizes wind loading and provides a cleaner, lower-maintenance installation.
Deployment Context
This mount excels in scenarios where a camera needs elevation and visibility: perimeter fence lines, parking lot corners, traffic intersections, and rooftop or elevated platform positions. The IK10 rating and stainless steel body make it suitable for outdoor industrial sites, ports, and facilities subject to corrosive environments. If you need a compact indoor wall mount or ceiling pendant, this pole mount is not the right choice — consider flush-mount or wall-bracket alternatives for those scenarios.
Cable management up the pole is your responsibility: budget for conduit, UV-resistant cable ties, or spiral wrap to protect cabling from UV degradation and mechanical damage. The 5901-341 provides the structural base; environmental hardening of the complete installation still depends on your site-specific design.
Environmental Durability
Stainless steel construction does not eliminate the need for routine maintenance in extreme environments. In coastal salt-spray zones, periodic freshwater rinse and inspection of fasteners (typically 304-grade stainless) is recommended annually. Standard steel fasteners (if any) should be replaced with stainless equivalents during commissioning to prevent galvanic corrosion.
FAQs
Q: Will the 5901-341 work with my non-Axis PTZ camera?
A: No. The mount is designed for Axis positioning units only. If your camera uses a different proprietary mount interface, you'll need a different bracket. Consult your camera manufacturer's accessory documentation.
Q: Can I mount a fixed (non-PTZ) camera on the 5901-341?
A: Technically yes, but it's overkill. The mount is engineered for the weight and vibration profile of positioning cameras. A fixed camera would be better served by a simpler, less expensive wall or pole bracket.
Q: Does the IK10 rating mean the camera itself is vandal-proof?
A: No. IK10 applies to the mount bracket only. Your camera's vandal resistance depends on the camera's own housing rating. Pair this mount with an IK10-rated camera for end-to-end impact protection.
Q: What's the maximum weight capacity?
A: Weight capacity is not specified in available documentation. Consult the Axis datasheet or contact Axis sales engineering for exact load limits based on your camera model.
Q: Can I use the 5901-341 indoors?
A: Yes, but there's no practical reason. The stainless steel and IK10 rating add cost and weight. Indoor deployments typically use lighter wall mounts or ceiling pendants.
Q: Will stainless steel fasteners corrode in my coastal environment?
A: 304-grade stainless resists salt spray well, but not indefinitely. In extreme salt-spray zones, 316-grade stainless or periodic freshwater rinsing extends service life. Verify the fastener specification with Axis if corrosion is a concern.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 5901-341 is purpose-built for one job: holding a motorized positioning camera rigid on a pole in a harsh outdoor environment. The stainless steel body and IK10 impact rating aren't marketing add-ons — they're responses to real deployment pain points. If you're mounting a PTZ camera on a perimeter pole or traffic mast, this bracket earns its cost through longevity and zero-drift stability.
Technical Highlights:
- IK10 Impact Rating (20 J, 5 kg @ 1.6 m): Protects against deliberate strikes, thrown objects, and accidental impacts near loading docks or pedestrian zones. Essential in high-vandalism or industrial settings where a cheaper plastic or thin-wall mount would crack and require replacement.
- Stainless Steel Construction: Resists salt spray and corrosive atmospheres without sacrificing structural integrity. Unlike painted steel that rusts from the inside out, 304-grade stainless degrades slowly and predictably, extending mount life 10–15+ years in coastal zones.
- 60–400mm Pole Diameter Range: Single bracket accommodates standard utility poles, metal conduit, and custom structural supports. Eliminates SKU proliferation on multi-site deployments where pole sizes vary site-to-site.
Deployment Considerations:
- Positioning cameras generate rotational and vibration forces during pan-tilt motion. This mount isolates those vibrations from the pole, preventing image jitter and protecting PTZ bearing alignment over years of daily operation.
- Cable routing discipline is critical: a loose cable whipping in wind acts as a lever arm that magnifies pole-top stresses. Use proper conduit, strain relief, and cable securing to prevent premature fastener fatigue.
- The sealing gaskets reduce insect ingress but are not a substitute for proper cable gland sealing at the camera's junction box. Pair this mount with a sealed or re-sealed camera connector.
The 5901-341 is the right choice for permanent PTZ installations on poles in exposed outdoor environments — perimeter lines, traffic signals, parking lot corners, and industrial perimeters. If your deployment is temporary, uses fixed cameras instead of PTZ, or runs entirely indoors, the cost and weight penalty make this mount the wrong decision. For non-Axis PTZ cameras, verify mount compatibility before purchase.
