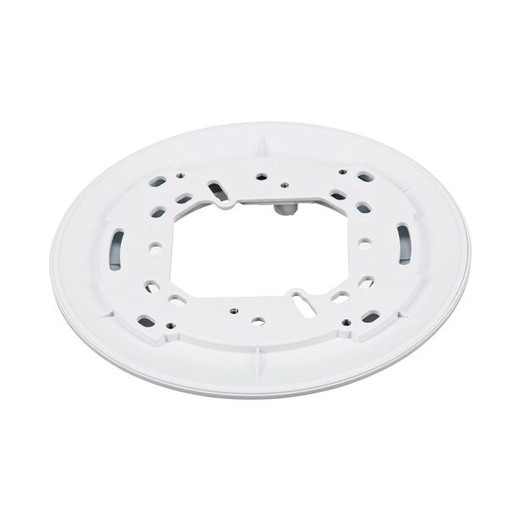

Axis 5801-421 J-Box/Gang Box Mounting Plate
The Axis 5801-421 is a purpose-built adapter plate that solves a real installation problem: deploying compact Axis IP dome cameras into existing electrical infrastructure without custom fabrication. If your building already has junction boxes or gang boxes run to camera locations, this plate lets you leverage that existing conduit and box preparation instead of drilling new holes or running new rough-in.
Key Features
- Multiple Junction Box Compatibility — Mounts to 4" square boxes, 4" octagon boxes, single-gang boxes, and double-gang boxes. This flexibility matters because retrofit projects rarely have uniform box configurations; this plate handles the common variants without needing different SKUs.
- Engineered for M3044-V, M3045-V, M3046-V — These three compact Axis domes are among the most widely deployed in retail, office, and education verticals. The 5801-421 is precision-fitted to their mounting geometry, eliminating play and ensuring repeatable installation across multiple sites.
- Reduces Installation Time — By using existing electrical boxes as anchor points, you avoid running new conduit, drilling through structural elements, or patching drywall afterward. On a 20-camera retrofit, this translates to several hours saved per technician.
- Maintains Building Code Compliance — Electrical boxes already satisfy fire rating, load-bearing, and structural inspection requirements. Using them for camera mounts keeps your installation within building department expectations and avoids conflicts with jurisdictional inspectors.
- Durable Indoor Construction — Engineered for reliable performance in controlled indoor environments such as retail sales floors, office spaces, educational facilities, and warehouses. Not rated for outdoor or high-moisture environments; use outdoor-rated camera mounts for those applications.
Integration & Compatibility
The 5801-421 is compatible exclusively with the AXIS M3044-V, M3045-V, and M3046-V compact fixed-dome cameras. These models are entry-tier fixed optics designs optimized for tight interior spaces and discreet mounting. If you're deploying varifocal or PTZ models, or other manufacturers' camera lines, verify mounting compatibility before ordering. The plate mounts directly to electrical boxes with standard hardware; no additional adapters or rails are required.
For larger camera deployments, consider pairing this with a network video recorder sized to your camera count and retention policy, and ensure your network switch has sufficient PoE capacity for your compact dome models. A camera selection guide can help you confirm the right models for your coverage requirements.
What's in the Box
- 1x Axis T94B02M J-Box/Gang Box Plate
Frequently Asked Questions
Q: Does the Axis 5801-421 work with any Axis dome camera, or only specific models?
A: The 5801-421 is designed specifically for the AXIS M3044-V, M3045-V, and M3046-V compact dome cameras. These three models share the same mounting footprint. Other Axis dome variants may have different mounting geometries and are not guaranteed to fit.
Q: What types of electrical boxes does the 5801-421 fit?
A: The plate is compatible with 4" square boxes, 4" octagon boxes, single-gang boxes, and double-gang boxes — the most common electrical outlet and switch box sizes found in retrofit projects.
Q: Can I use the 5801-421 for outdoor camera installations?
A: No. The 5801-421 is rated for indoor use only. Outdoor and high-moisture environments require mounts and junction boxes with weatherproof ratings (IP66 or higher). Consult your camera's datasheet and environmental specifications before deploying in outdoor locations.
Q: Does this plate include mounting hardware, or do I need to purchase fasteners separately?
A: The datasheet specifies included contents; verify the hardware list before installation. Standard electrical box fasteners typically work, but confirm compatibility with your specific electrical box type and local installation codes.
Q: What's the advantage of using an electrical box versus wall-mounting the camera directly?
A: Electrical boxes already exist in most retrofit locations, are approved by building code, and are designed for load and fire rating. Direct wall mounting requires drilling, patching, and additional structural verification. Using existing infrastructure saves time, avoids aesthetic issues, and ensures compliance with building inspections.
Q: Is the 5801-421 suitable for high-vibration environments like factories or warehouses?
A: The 5801-421 is engineered for standard commercial indoor environments. If your warehouse has vibration, heavy machinery, or impact risk, consult a system integrator to verify that electrical box mounting provides adequate stability for sharp focus and low-vibration video. High-impact environments may require shock-mount accessories or alternative mounting strategies.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 5801-421 solves a specific integration problem that most generic mount suppliers ignore: how to land a compact dome camera on existing electrical infrastructure without custom fabrication. If you're retrofitting retail or office space where the electrical contractors have already run boxes to your camera locations, this plate (5801-421) lets you avoid the cost and delay of installing new structural mounts or conduit runs.
Technical Highlights:
- Dual-form-factor design: Supports both square electrical boxes (4" and standard junction boxes) and gang boxes (single and double). This eliminates SKU proliferation and standardizes your retrofit kit across multiple building types.
- M3044-V, M3045-V, M3046-V geometry lock: Purpose-engineered mounting footprint for these three compact Axis domes means zero rework, zero adapter plates, and repeatable installation time across multi-site deployments.
- Code-compliant anchor points: Electrical boxes already carry fire ratings and load-bearing approval from local building departments. Mounting cameras through them avoids the separate structural certification that direct wall mounts sometimes trigger.
Deployment Considerations:
- Retrofit-only scope: This is for existing electrical infrastructure. New construction projects may justify purpose-built camera conduit and wall mounts instead of retrofitting to legacy box locations.
- Indoor environments only: The 5801-421 is not rated for outdoor, wet, or high-vibration settings. Confirm your electrical boxes and camera enclosure already meet your environment's IP rating requirements before ordering.
- Measurement and verification: Box dimensions matter — confirm your site's existing boxes match the 4"/gang sizes supported. A site visit or rough-in photos prevent shipment-to-job surprise delays.
Position the 5801-421 in retail checkout areas, office hallways, education facility corridors, or warehouse entry points where existing electrical infrastructure is already positioned at your exact sight lines. Saves weeks of structural negotiation and rough-in rework compared to installing new conduit or wall anchors.
