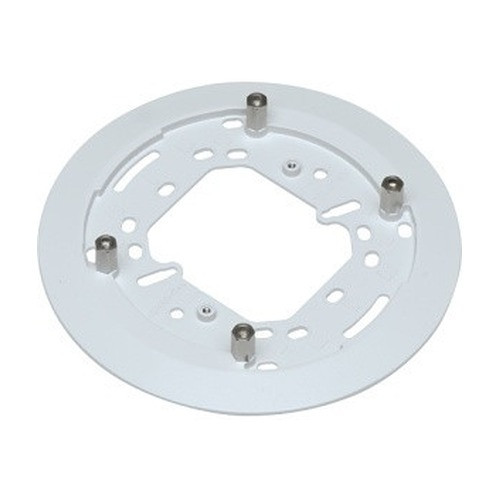

Axis 5503-921 J-Box/Gang Box Mounting Plate
The Axis 5503-921 is a standardized mounting plate that bridges network cameras to existing electrical junction boxes, eliminating the need for custom fabrication or auxiliary mounting hardware. It accepts 4-inch square boxes, 4-inch octagon boxes, single-gang, and double-gang electrical enclosures—the boxes already in your walls during retrofit or new construction. An integrated RJ45 network coupler lets you connect Ethernet directly without additional adapters, reducing cable clutter and installation time.
Key Features
- Multi-box Form Factor Compatibility: Mounts to 4" square, 4" octagon, single-gang, and double-gang junction boxes. This flexibility means you can deploy the same mounting plate across different parts of a facility without carrying multiple SKUs, cutting logistics and training overhead.
- Integrated RJ45 Coupler: Built-in network connector eliminates the need for external adapters or pass-through connectors. Reduces one point of failure and keeps the cable run inside the box, protecting connections from physical damage and environmental exposure.
- Supports Multiple Axis Camera Models: Compatible with AXIS M3006, M3007, M3024-LVE, M3025-VE, M3026-VE, and P14 Series cameras. Verify your specific camera model before ordering to ensure compatibility.
- Reduces Installation Labor: Eliminates custom drilling, fabrication, or conduit rerouting. Installers can mount the camera to the plate, push it into the existing box, and secure it—meaningful time savings on large deployments or retrofit jobs where running new infrastructure isn't feasible.
- Professional Cable Organization: Routes power and network connections through the box cavity, keeping cables out of sight and meeting aesthetic and safety standards. Particularly valuable in offices, retail, or other customer-visible areas.
- Retrofit-Ready Design: Designed specifically for existing building infrastructure. If a junction box is already present, you avoid wall patching, re-plastering, or electrical rework—cost and schedule wins on retrofit projects.
Integration & Compatibility
This plate works with standard electrical boxes found in North American building codes (UL-listed junction boxes). Pair it with any compatible Axis camera to create a clean, wall-mounted surveillance point. For PoE-powered Axis IP cameras, confirm your network switch has available PoE ports; most modern switches deliver sufficient power to compact Axis models. When planning multi-camera deployments, use this plate in conjunction with your network video recorder and IP camera selection guide to ensure consistent form factor and cabling standards across the installation.
Frequently Asked Questions
Q: Does the 5503-921 work with non-Axis cameras?
A: The plate is designed and tested for AXIS M3006, M3007, M3024-LVE, M3025-VE, M3026-VE, and P14 Series cameras. Other brands or models may not align with the mounting holes or form factor. Contact the manufacturer or an installer to verify compatibility with non-Axis models.
Q: What size hole does the RJ45 coupler opening require?
A: The integrated coupler is factory-installed; the plate is sized for standard electrical boxes. No additional drilling or hole-saw work is required beyond standard box knockout removal for cable entry.
Q: Can I use the 5503-921 with an outdoor camera?
A: The plate is mounted to an electrical box inside the wall or enclosure. If you're deploying an outdoor camera, the box itself must be weatherproof or recessed so the plate and camera remain protected from rain. Verify environmental rating of your chosen camera model separately.
Q: What's the maximum cable run distance from the box to the switch?
A: Standard Ethernet is rated to 100 meters (328 feet). The integrated coupler supports the same distance limit; cable length is determined by your network infrastructure, not the plate.
Q: Do I need special tools to install the 5503-921?
A: Basic hand tools (screwdriver, possibly a knockout punch for the box) are sufficient. The plate itself mounts with standard electrical box hardware or self-tapping fasteners, depending on box type.
Q: Is the plate reusable if I remove a camera later?
A: Yes. The 5503-921 remains mounted to the box and can accept a replacement Axis camera compatible with the model list, or be left in place as a future expansion point.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 5503-921 is a straightforward accessory that saves installation time on one condition: you already have electrical boxes in the right locations. It's not a universal mounting solution, and it's not a substitute for proper infrastructure planning. Use it when retrofitting into existing buildings or when new construction already includes junction boxes where cameras need to go.
Technical Highlights:
- Integrated RJ45 Coupler: Eliminates the extra adapter step and reduces clutter inside the box. This is particularly valuable on large projects where you're installing dozens of cameras—fewer connection points means lower failure rates and faster troubleshooting if a camera loses network.
- Multi-Box Compatibility: The 5503-921 works with 4-inch square, 4-inch octagon, single-gang, and double-gang boxes. This flexibility lets you standardize on one part number across different areas of a facility, simplifying procurement and training.
- Camera Model Lock-In: Confirmed support for M3006, M3007, M3024-LVE, M3025-VE, M3026-VE, and P14 Series. Always verify your specific model before ordering—mounting hole alignment varies, and incompatible models will not mount properly.
Deployment Considerations:
- Box location is critical. If the box is recessed deep in a wall cavity, you may need conduit or cable routing tricks to get the Ethernet cable where it needs to go. Survey your boxes before committing to quantities.
- The plate doesn't solve power delivery. If your camera is PoE, you still need to run an Ethernet cable back to a PoE switch. If you're installing a non-PoE Axis model or a model that draws more than 15W, you'll also need a separate 12VDC or 24VAC supply routed to the box—that adds complexity fast.
- Indoor-only. This plate and its standard electrical boxes aren't rated for outdoor rain or extreme temperature swings. If your camera is outdoor-rated but the box is exposed, the box enclosure itself becomes a liability.
Best deployment scenario: new construction or selective retrofit into climate-controlled offices, retail storefronts, or warehouses where junction boxes align with surveillance points and PoE is available at the switch. Avoid on outdoor perimeters, data centers, or sites where custom mounting angles (say, ceiling-flush or wall-corner PTZ) are required.
