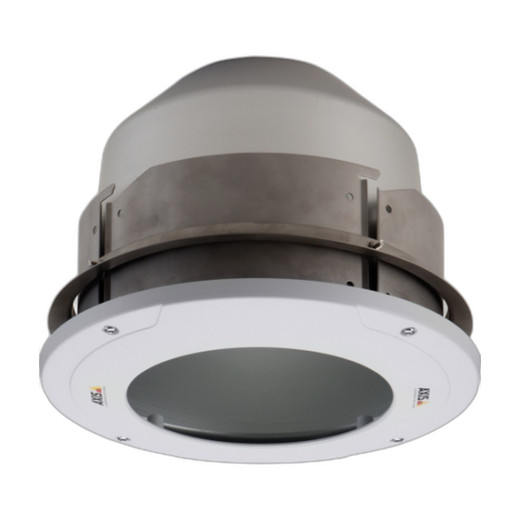

Axis 5505-721 T94A01L Recessed Mount for Q60-E Cameras
The Axis 5505-721 is a purpose-built recessed mounting bracket engineered to integrate Axis Q60-E cameras into building facades, soffit panels, and structural surfaces. Constructed from aluminum and stainless steel, this mount delivers the corrosion resistance and durability needed in outdoor environments—coastal, industrial, and high-moisture deployments where standard steel brackets will degrade within months.
Key Features
- Aluminum and stainless steel construction: Resists salt spray, humidity, and oxidation far longer than galvanized or painted steel. Relevant if you're deploying in maritime, chemical processing, or humid climates where corrosion failure rates climb steeply after 18–24 months on inferior materials.
- Recessed form factor: Cameras sit flush into the mount cavity, reducing visual profile and creating a cleaner aesthetic suitable for retail, hospitality, and municipal deployments where visible surveillance is a design concern. Also limits direct wind load on the camera body itself.
- IK10 impact rating: Withstands 20 joules of direct impact (equivalent to a 5 kg weight dropped from 40 cm)—a meaningful spec in high-traffic areas, retail environments, or locations prone to vandalism. Skip this if you're mounting above normal reach or behind protective barriers.
- Two 3/4" plenum-rated conduit holes: Accepts standard commercial electrical conduit for cable entry. Plenum-rated means the PVC/polyethylene meets fire code for return-air spaces in HVAC systems—mandatory in many commercial buildings. Two holes provide routing flexibility and support dual-cable deployments (power + network backup, or multi-camera runs).
- Compatible with multiple surface types: Mounting plates and fastening hardware adapt to panel, wood, and concrete—reduces the need for custom fabrication or site-specific brackets on mixed-material facades.
- Q60-E camera compatibility: Mechanically and optically designed for the Axis Q60-E form factor, ensuring proper alignment, vibration isolation, and cable strain relief specific to that model family.
Integration and Compatibility
The 5505-721 integrates seamlessly with outdoor IP camera deployments using Axis Q60-E units. Conduit provisions support integration into structured cabling systems, and the recessed design pairs well with modern building management approaches where minimalist camera aesthetics are a specification requirement. Mount with standard fasteners (not supplied separately); consult the Axis Q60-E installation guide for optical alignment and cable routing details.
When to Choose a Different Mount
If your deployment requires a pendant or pole-mount configuration (traffic monitoring, parking lot perimeter), a different form factor will be more cost-effective. If you need integrated environmental heating, cooling, or wiper provisions, consider a full camera enclosure instead. For interior-only installations with low vandalism risk, a simpler bracket will suffice and reduce cost.
Deployment Considerations
Plan cable routing before installation—the two 3/4" conduit holes are fixed in location, so confirm alignment with your network/power runs during site survey. Recessed mounting means the camera sits deeper into the bracket cavity; verify that lens orientation and field-of-view angles are acceptable for your coverage plan (narrow vertical angles or obstructed sightlines can result if mounting height or angle is suboptimal). For multi-camera facade deployments, order mounting templates early to avoid field rework.
Frequently Asked Questions
Q: Is the 5505-721 suitable for coastal or salt-spray environments?
A: Yes. The aluminum and stainless steel construction provides long-term corrosion resistance in maritime and high-salt-concentration air. Standard galvanized mounts typically show rust blooming within 12–18 months in these conditions; the 5505-721 extends useful life to 5+ years with minimal maintenance.
Q: Can I mount the 5505-721 vertically on a wall, or only on overhead soffit?
A: The mount supports vertical wall installation provided the surface (panel, concrete, wood) is structurally adequate. Confirm with a structural review if mounting on thin or composite panels—the weight of the camera and bracket can exceed 10 lbs depending on configuration.
Q: Do I need to order conduit separately?
A: Yes. The mount provides two 3/4" holes for standard electrical conduit; you source and install conduit (PVC or metal) separately based on your building code and cable management plan.
Q: What fasteners are used to secure the mount to the surface?
A: Fasteners are not included in the mount shipment. Use corrosion-resistant fasteners (stainless steel or hot-dip galvanized bolts/anchors) sized for your substrate—concrete anchors, wood lag bolts, or panel fasteners as appropriate. Consult the Q60-E installation guide for torque specifications.
Q: Is this mount suitable for extreme temperature swings?
A: Aluminum and stainless steel have excellent temperature cycling performance. Verify operating temperature limits of your Axis Q60-E camera separately—the mount itself will function across typical outdoor ranges (-40°C to +60°C and beyond with no mechanical failure).
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 5505-721 is a solid mounting choice for recessed outdoor camera deployments where material durability and aesthetic integration matter. The aluminum and stainless steel construction is the key differentiator here—it's not marketing language, it's a practical constraint. If you're specifying this mount for a coastal facility, high-humidity warehouse, or industrial site with aggressive air chemistry, the corrosion resistance directly translates to a 3–5 year service extension compared to standard galvanized brackets. That's worth the cost premium on a 3+ year surveillance contract.
Technical Highlights:
- IK10 impact rating: 20-joule vandalism resistance—meaningful in retail, transit, or public spaces where casual impact damage is a budget line item. Not essential above normal reach or in low-traffic zones, but essential if you're protecting visible optics in pedestrian areas.
- Plenum-rated 3/4" conduit provisions (two holes): Meets fire code for HVAC return-air spaces—non-negotiable in commercial buildings. Dual holes support split cable routing or redundant network runs, reducing single-point-of-failure risk on critical surveillance zones.
- Recessed form factor: Flush mounting reduces wind load on the camera body and cuts visual profile—matters less in industrial sites but is a contract requirement in retail, hospitality, and municipal bids where exterior aesthetics are a specification line.
Deployment Considerations:
- Fasteners and conduit are not included—plan your supply chain early. Stainless or hot-dip galvanized hardware is mandatory to avoid corrosion mismatch with the aluminum/stainless bracket.
- Recessed mounting means the camera cavity is deeper—verify field-of-view angles during site survey. A shallow vertical tilt or obstructed sightline will degrade coverage if the mounting height or angle is wrong.
Deploy the 5505-721 on outdoor Q60-E camera systems where coastal corrosion, vandalism risk, or code-mandated plenum routing are real constraints. Skip it if you're mounting above walkway level in low-risk environments—a simpler, cheaper bracket will serve equally well.
