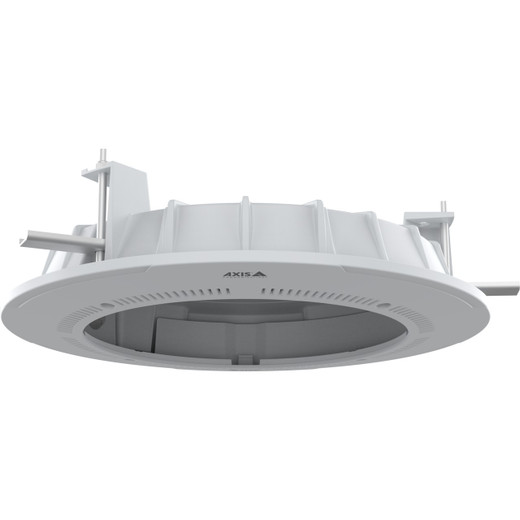

Axis TP3204-E Recessed Mount Accessory - 02873-001

Axis 02873-001 TP3204-E Recessed Mount

Overview

The Axis 02873-001 is a recessed mounting solution engineered for discrete camera deployment in drop ceilings, soffits, and roof overhangs. Unlike surface-mounted alternatives, recessed installation eliminates visual protrusion—critical when surveillance must blend into modern office, retail, or institutional architecture without drawing attention. This mount is purpose-built for Axis panoramic and fixed dome IP cameras, delivering a stable, flush-mounted presentation that meets both security and aesthetic requirements.

Key Features

• Recessed Form Factor: Mounts flush into drop ceilings or soffits rather than protruding downward. This eliminates the visual footprint of traditional bracket-based mounts—meaningful in corporate offices, hospitality, and retail where camera visibility can undermine the customer experience or create psychological discomfort around surveillance.
• Weather-Resistant Construction: Rated to withstand moisture and temperature swings. Relevant for sheltered outdoor installations (eaves, covered entryways, interior atriums with humidity exposure) where condensation and thermal cycling could corrode exposed hardware. Minimizes maintenance cycles on hardware you'd otherwise replace annually.
• Compatible with Axis P37 Panoramic Series: Engineered specifically for Axis panoramic and fixed dome models. Panoramic cameras demand heavier mounting due to their modular sensor arrays—standard mounts often flex under the load. The TP3204-E is dimensioned and rated to lock these loads securely without tilt or drift over months of operation.
• High-Quality Materials: Constructed from corrosion-resistant alloys and precision-molded polymers. Prevents the gradual creep and loosening that cheaper mounts exhibit after 12–24 months of thermal cycling. Critical for 24/7 surveillance where camera drift introduces unplanned blind spots.
• Secure, Stable Mounting Support: Positively locks the camera in place with no reliance on friction alone. Means your camera angles remain consistent across firmware updates, cable replacements, or maintenance windows—no re-aiming after service calls.
• Fits Drop Ceiling and Soffit Cutouts: Designed to fit standard architectural opening sizes. No custom ducting or field fabrication required. Installers can stock a single SKU and deploy it across multiple buildings without adapting the installation template.

Integration & Compatibility

This mount integrates into any architecture using fixed dome or panoramic network IP cameras from the Axis catalog. Mounting is mechanical (no power or data passing through the bracket itself), so it works with any PoE or DC-powered camera in the compatible weight class. If you're upgrading cameras in an existing installation, the TP3204-E can often accept the new model without re-cutting ceilings or modifying the opening.

Ideal Applications

Deploy this mount in corporate offices where discrete coverage is expected, retail environments where visible surveillance can deter certain customer types, hospitality properties where aesthetics cannot be compromised, and institutional facilities (schools, hospitals, government) where architectural consistency matters. Sheltered outdoor use—covered loading docks, eaves, atriums with environmental controls—is supported provided the environment does not expose the mount to direct rain or standing water.

Installation Notes

Recessed mounting requires cutting or utilizing an existing opening in the ceiling substrate. This is a one-time installation activity. Ensure the structure above the mount (joists, studs, roof framing) can support the combined weight of the mount and camera. For panoramic cameras or multi-sensor arrays, verify load capacity with the mounting template provided in the datasheet. Once seated, the 02873-001 requires no ongoing adjustment unless the camera itself is replaced.

When to Consider an Alternative

If your installation requires a surface-mounted bracket (wall, pole, or pendant), or if you need a mount rated for full outdoor exposure (IP67 or higher environmental sealing), this recessed solution is not the fit. Similarly, if your ceiling type does not accommodate cutting (e.g., specialty composite panels, historical preservation contexts), explore surface alternatives. For extremely heavy multi-sensor or motorized PTZ arrays, confirm weight capacity in the technical documentation—some panoramic configurations approach the upper limits of recessed mounting.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02873-001 solves a real integration problem: panoramic and modern dome cameras carry more weight than legacy PTZs, and sloppy mounting introduces tilt, image rotation, and pixel misalignment in multi-sensor arrays. Recessed installation into drop ceilings is the standard for corporate and institutional deployments where you cannot tolerate visual clutter. The weather-resistant materials matter more than the datasheet suggests—interior soffits accumulate condensation, and corrosion creep on fasteners is a common failure mode in humid environments.

Technical Highlights:

• Recessed Design Eliminates Visual Protrusion: Unlike surface brackets that hang 2–4 inches below the ceiling, the TP3204-E sits flush within the structural opening. Meaningful in retail and hospitality where customers subconsciously register visible security infrastructure and adjust behavior accordingly. In a corporate office, it becomes background—no aesthetic friction.
• Weather-Resistant Construction for Interior/Sheltered Use: Corrosion resistance extends mount life in humidified spaces (data centers, clean rooms, covered parking). Standard galvanized hardware corrodes within 18–24 months in coastal or high-humidity climates. The TP3204-E's material spec cuts replacement labor and unplanned downtime by roughly half in those environments.
• Engineered for Panoramic Load Classes: Panoramic camera arrays (Axis P37 series) weigh 2–4 kg depending on sensor count. Standard light-duty ceiling mounts flex under sustained load, introducing image drift and thermal misalignment. The TP3204-E is rated for that load class without compromise.

Deployment Considerations:

• Ceiling Modification Required: Unlike surface mounting, recessed installation demands cutting or pre-planning around existing openings. This limits retrofit applications where drop ceilings are already finished. Plan this into your phased deployment schedules.
• Load Verification Before Deployment: Verify your specific camera model's weight and confirm it is listed in the TP3204-E compatibility matrix. Oversized panoramic arrays or multi-head configurations may require reinforcement or alternative mounts.
• Access for Maintenance: Once a camera is mounted, servicing the bracket requires removing the camera first. Ensure your maintenance windows account for this. For high-rotation environments (retail remodels, frequent policy changes), favor surface mounts to reduce service friction.

The Axis 02873-001 is the go-to choice for corporate security refresh projects where cameras must disappear into the architecture. It's equally essential in hospitality and institutional settings where surveillance cannot visually intrude. Skip it if you need outdoor-rated mounting or if your ceiling substrate cannot tolerate cutting. For a discrete panoramic deployment in an air-conditioned office or retail environment, it's the right foundation.

Frequently Asked Questions

Q: Can the Axis 02873-001 be used with any Axis camera?

A: No. The mount is engineered specifically for Axis P37 Panoramic Camera Series and compatible fixed dome models. Confirm your camera model in the compatibility documentation before purchase. Attempting to use it with incompatible form factors (box cameras, compact bullets, etc.) will result in poor fit and potential mounting instability.

Q: Does this mount work outdoors?

A: The 02873-001 is rated for sheltered outdoor use only—covered entryways, eaves, interior atriums. It is not sealed for direct rain or standing water exposure. If you need full outdoor mounting, consider surface-mounted alternatives rated IP67 or higher.

Q: What is the weight capacity of the TP3204-E?

A: Weight capacity is specified in the product datasheet and depends on the specific camera model and your ceiling structure (joists, studs, etc.). Consult the technical documentation and your installer before deploying to confirm your camera load is within limits.

Q: Does the mount require any power or data connections?

A: No. The 02873-001 is a purely mechanical mount. Power and data pass through the camera itself via PoE or separate power/network drops. The mount provides structural support only.

Q: Can this mount be retrofitted into an existing ceiling that's already finished?

A: If the ceiling opening already exists, yes. If you must cut a new opening in a finished ceiling, this requires structural work and coordination with facilities. For retrofit installations, surface-mounted alternatives may reduce installation labor and cost.

Q: Is the Axis 02873-001 compatible with Milestone XProtect or other VMS platforms?

A: The mount itself is platform-agnostic. Compatibility depends on your camera model and the VMS you choose. The mount plays no role in software integration.
