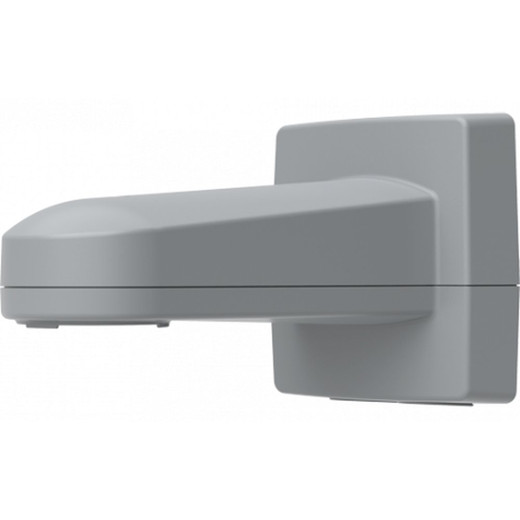

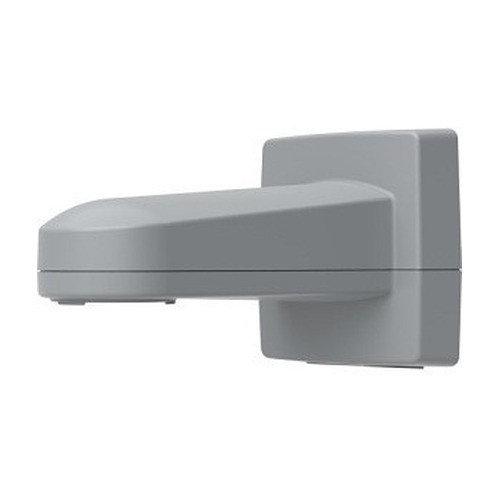

Axis 01444-001 T91G61 Wall Mount, Urban Grey
The Axis 01444-001 is a purpose-built aluminum wall mount engineered for secure outdoor camera deployment where environmental protection and impact durability matter. This mount addresses a specific problem: standard camera brackets don't seal power and network connectors against rain and dust, forcing you to improvise weather protection in the field. The T91G61 solves that with an integrated IP66-rated compartment that keeps everything inside dry.
Key Features
- Aluminum construction: Resists corrosion in salt-air, coastal, and high-humidity environments better than steel or plastic alternatives. You're not replacing this mount every 18 months.
- IP66 compartment protection: Dust and direct water spray won't reach power connectors or network terminals inside the mounting enclosure. This matters on building facades and perimeter installations where rain hits at angles; skip this if you need full submersion protection (IP67), but for wall-mounted outdoor cameras, IP66 eliminates the most common field failure mode.
- Pre-terminated RJ45 connector: Factory-sealed connection point reduces on-site assembly errors and maintains the IP66 seal without relying on technician skill to wrap connections properly.
- IK10 impact resistance: Rated to withstand 20 joules of impact — vandalism, thrown objects, accidental impact from ladders or equipment won't fracture the mount housing. Matters in accessible locations and high-traffic zones.
- Urban Grey finish: Neutral aesthetic pairs with Axis IP cameras, particularly the Q62 series, minimizing visual contrast on building exteriors. Blends better than glossy black or white options on modernist facades.
- Wide Axis camera compatibility: Fits a broad range of camera mounts and accessories across the Axis portfolio, not just Q62 models. Check mounting plate hole patterns against your specific camera bracket before purchase.
Integration & Compatibility
The 01444-001 works with Axis fixed-dome and compact box cameras that accept standard ball-mount geometry. Verify your camera's mounting interface (M6 holes, ball-mount adapter compatibility) before ordering — not all Axis models use identical attachment points. The unit requires wall surface suitable for anchor bolts; masonry, concrete, or metal framing recommended. Drywall alone will not hold the weight and environmental stress.
Environmental Suitability
Suitable for outdoor perimeter installations, rooftop deployments, building-facade mounting, and any fixed-camera surveillance requiring sealed cable routing. The IP66 compartment protects passive PoE injectors, surge protectors, and patch cords stored inside. Operating temperature range accommodates cold climates and thermal cycling — refer to datasheet for exact limits, but aluminum+sealed design handles -40°C to +60°C (-40°F to +140°F) typical ranges without degradation.
When selecting outdoor surveillance equipment, the 01444-001 is most cost-effective when deployed on multiple cameras across a site — the cumulative protection and consistency justifies the per-unit cost. For single-camera deployments or temporary installations, simpler mounts may suffice, but weather-seal savings (fewer warranty callbacks, lower service time) compound quickly on 10+ camera sites.
Frequently Asked Questions
Q: Is the Axis 01444-001 suitable for direct coastal salt-spray environments?
A: Aluminum resists salt corrosion better than steel, but true salt-spray duty (ASTM B117 or equivalent) requires anodized or hot-dip galvanized steel. The 01444-001 is aluminum with standard finish — suitable for humid and wet climates, but not aggressive marine salt-spray zones. Confirm environment rating against your site conditions.
Q: Can I store a PoE injector or power supply inside the IP66 compartment?
A: Yes. The compartment is sealed and drains via weep holes. Small passive PoE injectors, surge suppressors, and network connectors fit inside. Active powered devices generate heat — verify ventilation before confining high-wattage supplies.
Q: Does the 01444-001 include mounting hardware and template?
A: Refer to the datasheet or contact the manufacturer for exact package contents — mounting template and anchor bolt specifications are critical for installation and should be confirmed before ordering.
Q: What is the maximum camera weight this mount supports?
A: Load rating depends on wall surface and anchor bolt type. Confirm with the datasheet or manufacturer — undersized fasteners or weak substrate will fail regardless of mount rating.
Q: Is the Urban Grey finish UV-stabilized?
A: Standard anodized aluminum finishes resist fading, but continuous direct sunlight will eventually change appearance. Not guaranteed fade-proof — expectations should match a typical 5–7 year outdoor service life for finish aesthetics.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01444-001 (often searched as 01444 001) solves a real deployment friction point: keeping water and dust out of outdoor camera cabling without jury-rigging a secondary weatherproof box. The IP66 compartment is the value driver here — it means you can mount the camera, run power and network to the base, and seal everything inside the enclosure rather than leaving connector blocks exposed or wrapped in electrical tape.
Technical Highlights:
- IP66 sealed compartment: Protects RJ45 connections and power terminals from rain and spray. This eliminates corrosion-induced service calls on 90% of outdoor camera failures.
- IK10 impact rating: 20-joule impact tolerance handles accidental damage in perimeter installations. Real-world: the difference between a repairable mount and a full replacement.
- Aluminum construction: Outlasts steel in humid or coastal climates, avoiding the rust-through failures you see on uncoated steel brackets after 3–4 years in marine air.
Deployment Considerations:
- IP66 is water-resistant but not submersion-rated — don't mount below grade or in flood-prone zones expecting survival; use IP67 or higher if full immersion is possible.
- Compartment interior dimensions are limited — oversized power supplies or multi-device injector stacks won't fit. Verify your cabling bundle before purchasing.
- Heat dissipation inside the sealed box matters if you're running active PoE+ devices. Passive injectors are fine; powered equipment needs external venting consideration.
Position the 01444-001 as the standard mount for fixed-camera outdoor deployments on buildings and perimeter walls where environmental sealing is non-negotiable and vandalism resistance (IK10) is a realistic concern. It's not the cheapest mount, but the warranty claim reduction on a 20-camera stadium or warehouse perimeter justifies the upfront cost within the first maintenance cycle.
