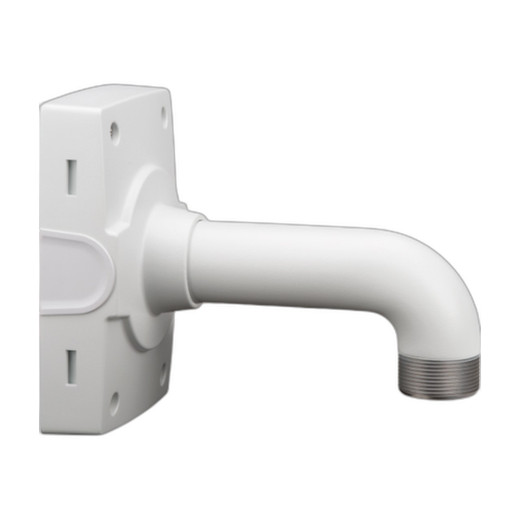

Axis 5504-821 Wall Mount 1.5" NPS
The Axis 5504-821 is a professional wall mount designed to secure fixed dome pendant surveillance kits in indoor and outdoor installations. Built from chromated and powder-coated aluminum, this accessory provides corrosion resistance and structural stability where environmental exposure demands durability — without sacrificing a clean, integrated appearance on walls and ceilings.
Key Features
- 1.5" NPS Thread Connection — Industry-standard pipe thread compatible with fixed dome pendant kits. NPS (National Pipe Straight) ensures repeatable, reliable mechanical connection across multiple camera platforms, reducing installation time and compatibility headaches on multi-vendor deployments.
- Chromated and Powder-Coated Aluminum — Two-stage finish resists salt spray, humidity, and UV degradation. Matters in coastal, humid, or high-corrosion environments where bare steel or untreated aluminum would fail within 12–24 months. White finish integrates into most interior and exterior architectures without additional painting or masking.
- Flexible Cable Routing — Routes network and power cables either behind the mount body or through a dedicated 3/4" conduit hole. Keeps cable runs organized and protected from weather, foot traffic, and UV damage. Conduit passage also simplifies retrofits where existing infrastructure already runs conduit through walls or ceilings.
- Complete Mounting Hardware — Ships with bracket, mounting plate, pipe seal, and conduit cover. Pipe seal prevents water and dust ingress around the threaded connection — critical for outdoor installations where rain or condensation can degrade network performance.
- Lightweight, Rigid Design — Aluminum construction minimizes load on structural anchor points while maintaining sufficient stiffness to prevent camera sag or vibration, which can degrade image quality on motion-sensitive applications like perimeter monitoring.
Compatibility & Installation
The 5504-821 is designed for Axis fixed dome pendant kits, which use a 1.5" NPS thread interface. Verify your camera model documentation before ordering. Installation requires wall or ceiling anchors appropriate to your substrate (drywall, concrete, steel). The included mounting template helps position holes accurately on first attempt. Cable management supports both exposed routing and in-wall conduit systems, so deployment flexibility adapts to existing infrastructure constraints.
When to Choose This vs. Alternatives
Choose the 5504-821 if you're installing Axis pendant dome cameras indoors or in covered outdoor areas where UV and salt exposure are not extreme. If your site faces coastal salt spray, extended submersion risk, or mechanical vibration from machinery, confirm the powder coat thickness with the manufacturer — this mount is durable but not military-spec armored. For PTZ cameras or heavier camera bodies (over 3 lbs), verify weight rating with your camera documentation; if the pendant kit exceeds the mount's load capacity, consider a reinforced pedestal mount instead.
Frequently Asked Questions
Q: Is the 5504-821 rated for outdoor use?
A: Yes. The chromated and powder-coated aluminum finish resists corrosion in outdoor environments. However, it is not submersible — use for wall or eave mounting, not for underwater or fully submerged installations.
Q: What fasteners does the 5504-821 come with?
A: The mount includes a bracket, mounting plate, pipe seal, and conduit cover. You will need to supply anchor bolts appropriate to your wall or ceiling material (e.g., concrete anchors, toggle bolts for drywall, lag bolts for wood).
Q: Can I use the 5504-821 with non-Axis pendant kits?
A: Only if they use a 1.5" NPS thread interface. Check your camera's mounting documentation. Mixed-brand systems require mechanical compatibility verification before purchase.
Q: What size conduit does the mount support?
A: The dedicated conduit hole is 3/4" nominal. This accommodates standard electrical conduit and simplifies cable protection on outdoor installations.
Q: Is this mount suitable for high-vibration environments?
A: The aluminum construction is rigid and resists sag under typical surveillance camera weight (under 3 lbs). If your site experiences continuous mechanical vibration, verify the camera's weight and mounting torque limits with the manufacturer, then test the assembly in situ.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 5504-821 (often searched as 5504 821) is a straightforward, no-surprises accessory — the kind you buy once and never think about again, which is exactly what you want from a mount. The chromated finish and 1.5" NPS thread are industry standards, and that means compatibility across Axis pendant lines and zero guesswork on installation day.
Technical Highlights:
- Chromated + Powder-Coat Dual Protection: Resists salt spray and humidity for 5+ years without repainting in most temperate outdoor environments. Coastal or marine sites should plan for recoating at year 5–7.
- 1.5" NPS Thread: Repeatable mechanical connection — no adapter sleeves, no stripped threads. Compatible across the Axis fixed dome pendant family, reducing spare parts inventory on multi-site deployments.
- 3/4" Conduit Pass-Through: Eliminates cable sag and UV exposure. On retrofit installations where you're running cable through existing wall conduit, this saves a second trip for cable protection.
Deployment Considerations:
- Verify your anchor fasteners for substrate type before installation — the mount itself is robust, but a toggle bolt in drywall will fail under 3+ lbs of camera weight faster than a concrete anchor in a masonry wall.
- The pipe seal is included but inspect it before installation; if it's dried out or cracked, replace it to prevent water pooling around the threaded connection.
Right choice for retail, office, parking, and perimeter surveillance where cameras are 2–3 lbs and weather exposure is moderate. Skip this if you need vibration isolation (use a damped pedestal instead) or if you're installing in extreme salt spray zones without annual maintenance access.
