Axis T91B57 Aluminum Pole Mount 57" - 01470-001

Axis 01470-001 Aluminum Pole Mount

Overview

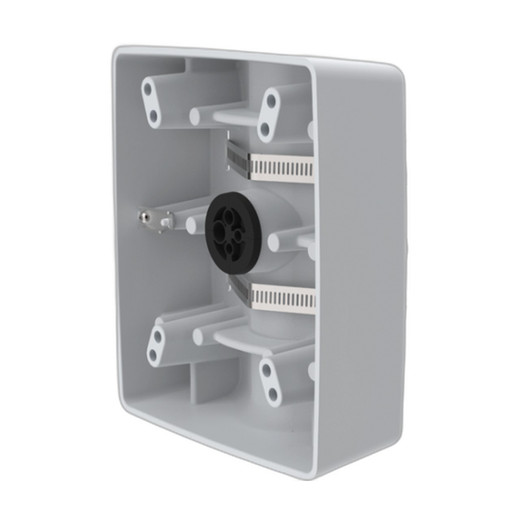

The Axis T91B57 (model 01470-001) is a pole-mount adapter for fixed surveillance installations on cylindrical supports. Designed to couple Axis T91-series wall mounts and T98A cabinet enclosures to pole structures between 100–410mm (4–16in) diameter, this mount handles the mechanical load of outdoor and indoor camera housings without requiring custom fabrication. IK10 impact rating means the aluminum frame resists vandalism damage — relevant for accessible mounting locations. Stainless steel straps rated for outdoor corrosion exposure. Maximum load capacity: 30kg (66lb).

Compatibility

Works with AXIS T91G61 and T91H61 wall mounts, and AXIS T98A-VE cabinet series. The mount does not directly support cameras; it adapts a wall-mount housing to pole geometry. Confirm your camera housing model is T91G61, T91H61, or compatible with T98A-series before purchase. The mount provides cable routing via a back cable hole and bottom feed-through designed for T91/T98A cable management.

Installation Notes

Measure pole diameter before ordering — the 57-inch (1450mm) stainless steel straps are fixed length and non-adjustable in wrap circumference. The mount includes an insect-proof cable gasket to block entry points — relevant for locations where pest ingress into electronics is a concern. Powder-coated aluminum casing is white (NCS S1002-B). Stainless steel hardware resists corrosion in salt spray or high-humidity outdoor environments. Installation is mechanical only — no electrical connections required.

What's in the Box

• 1x Axis T91B57 Aluminum Pole Mount (assembled)
• 1x Insect-proof cable gasket
• 1x Installation Guide
