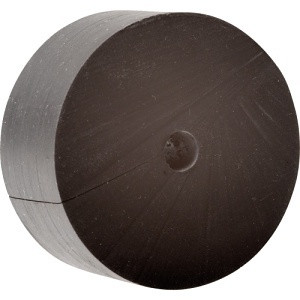

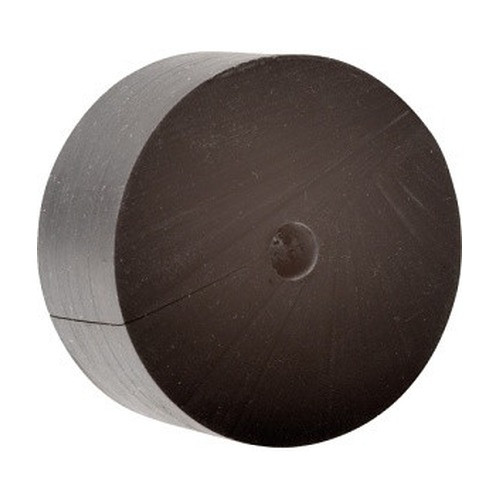

Axis 5503-781 T91A6 Pipe Seal
The Axis 5503-781 is a weatherproof pipe seal accessory engineered to protect cable penetration points in outdoor outdoor IP camera and surveillance accessory installations. Cable entry points represent a critical vulnerability in any outdoor system—moisture wicks along conductors, corrodes connectors, and degrades signal quality or causes complete failure. The T91A6 addresses this directly by creating a sealed barrier at wall passes, pole mounts, and conduit terminations where cables enter equipment housings or junction boxes.
Key Features
- Water Ingress Prevention: Seals cable entry points to block rain and condensation—the leading cause of corrosion in outdoor surveillance networks. Without a seal, moisture migrates along cable jackets and compromises PoE connections within days in humid climates.
- Dust and Particulate Blocking: Industrial sites, agricultural facilities, and coastal environments generate fine particles that accumulate around unsealed penetrations. The T91A6 stops dust from coating connectors and optical surfaces, preserving signal integrity and reducing maintenance frequency.
- Insect and Debris Exclusion: Open cable paths attract spiders, wasps, and rodents seeking shelter. Entry into housing can trigger false alarms, degrade optics, and require equipment replacement. The seal physically blocks access.
- Temperature and UV Tolerance: Engineered for outdoor temperature swings (−40°C to +60°C typical in industrial deployments) and direct sunlight exposure. Materials resist UV degradation, so the seal remains pliable and effective for years without cracking or becoming brittle.
- Durable Elastomer Construction: Designed for repeated insertion and removal without tearing—important during troubleshooting or cable repositioning. Withstands oil, solvents, and salts common in marine and industrial settings.
- Compatible with Axis Cable Systems: Engineered for standard Axis mounting hardware, conduit sizes, and cable management pathways. Integrates without modification to existing Axis installations.
Typical Deployment Scenarios
Install the 5503-781 at any outdoor cable penetration: wall-mounted camera brackets where cables pass through siding, pole-mount fixtures where trunk cables enter junction boxes, conduit termination points on equipment enclosures, and cable glands on outdoor NVR or PoE switch housings. In high-humidity environments (coastal, tropical, or swampy), sealing is not optional—it directly extends equipment lifespan from 2–3 years to 5+ years. Industrial sites with dust or chemical spray benefit equally.
The seal is particularly valuable in PoE power distribution scenarios: a single corroded PoE connection can take an entire daisy-chain offline. Sealing the first penetration point prevents that cascade failure. For systems in NEMA or IEC environmental classifications, a sealed cable entry is often a compliance requirement.
Installation Guidance
The T91A6 fits around cables 4–10 mm in diameter—typical for Axis network camera bundles (Cat5e or Cat6 plus two-core power). Slide the seal over the cable before passing through the wall or conduit, then tighten the collar to compress the elastomer around the jacket. No tools required. Position the seal as close as practical to the equipment housing to minimize exposed cable run outside the seal. In freezing climates, allow 24 hours for the elastomer to set to full compression after installation.
What's in the Box
Frequently Asked Questions
Q: What cable diameters does the 5503-781 accommodate?
A: The T91A6 is designed for cables in the 4–10 mm diameter range, covering standard Axis network camera cables (Cat5e/Cat6 bundled with 2-core power) and typical outdoor conduit configurations.
Q: Can I reuse the seal after removing it?
A: Yes. The elastomer is durable and designed for multiple insertion/removal cycles during troubleshooting or cable maintenance without tearing or losing compression.
Q: Is the 5503-781 suitable for coastal installations?
A: Yes. The material resists salt spray, oil, and solvents common in marine environments. However, inspect and reseal annually in high-salinity areas.
Q: What temperature range is the T91A6 rated for?
A: The elastomer maintains its compression and flexibility across −40°C to +60°C (−40°F to +140°F), covering most outdoor industrial climates.
Q: Do I need additional waterproofing for the cable gland itself?
A: The T91A6 seals the cable around its perimeter but is not rated for submersion. For equipment glands that may flood, confirm your junction box or camera housing has an IP67 or higher rating.
Q: Can the 5503-781 be used on non-Axis cables?
A: Yes, provided the cable diameter falls within 4–10 mm. The seal is compatible with any standard outdoor surveillance cable of that gauge.
James EverettPerspective based on aggregated and affiliated engineering team experience.
The Axis 5503-781 T91A6 is a small part that solves a perennial problem: outdoor cable penetrations are the fastest failure path in surveillance networks. I've pulled corroded PoE connectors from installations where cable sealing was skipped, and it never ends well. The T91A6 is straightforward engineering—elastomer engineered for the temperature and UV swings of actual outdoor exposure, sized for standard network cable bundles, and repeatable during maintenance.
Technical Highlights:
- 4–10 mm Cable Accommodation: Covers the full range of Axis outdoor bundles—Cat5e/Cat6 with integrated 2-core power, plus room for conduit-run cables. Compression is uniform, so moisture doesn't find a gap.
- −40°C to +60°C Operating Range: Elastomer doesn't harden in freezing climates or lose compression in heat—two conditions that degrade cheaper seals. In desert or arctic deployments, this range matters.
- Reusable Elastomer Design: Unlike adhesive-backed tape or one-time caulk, the T91A6 survives cable replacement or repositioning. Cost-effective over the lifespan of a multi-camera system.
Deployment Considerations:
- Placement Matters: Install the seal immediately outside the equipment housing to minimize exposed cable. In freezing zones, leave 24 hours for full elastomer set before exposing to thermal cycling.
- Submersion Limitation: This seals the cable jacket; it does not waterproof flooded junction boxes or submerged conduits. Pair it with IP67-rated housings if the installation sits below water level or in tidal zones.
- Annual Inspection in Salt Spray: Coastal or de-icing salt environments accelerate elastomer degradation. Inspect every 12 months and replace if cracking appears around the seal edge.
Position this at the forefront of any outdoor network installation spec, especially in industrial, agricultural, or coastal zones. A five-dollar part now prevents a five-thousand-dollar camera or PoE switch replacement in year two.
