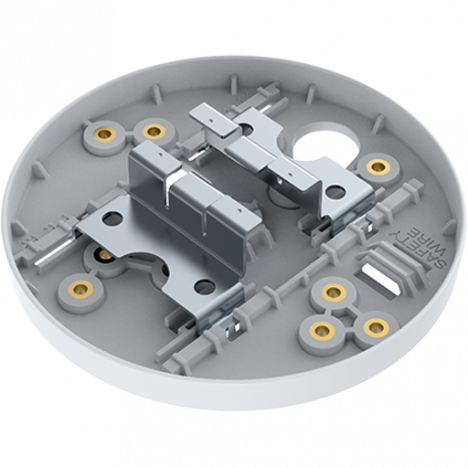

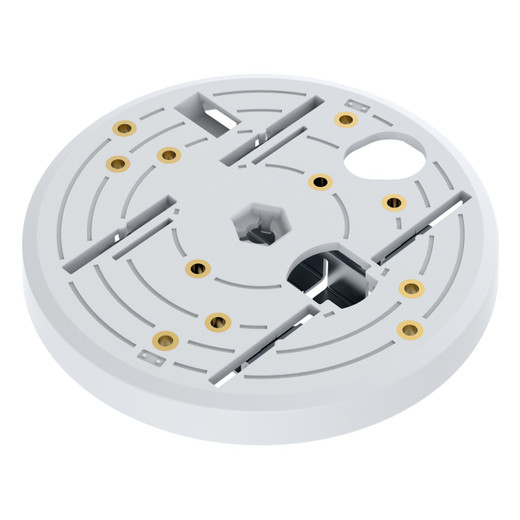

Axis 01612-001 Tile Grid Ceiling Mount 4-Pack
Overview
The Axis 01612-001 is a four-unit mounting accessory pack engineered to integrate Axis IP cameras and compatible stands into standard suspended ceiling grids. This is a practical choice for facilities with drop-tile infrastructure—offices, retail spaces, warehouses, and commercial buildings where ceiling-mounted surveillance blends into existing infrastructure rather than hanging visibly below the grid.
Each mount in the 01612-001 pack is finished in Axis White, designed to disappear into the ceiling aesthetically while providing solid mechanical support for camera equipment. The pack includes four independent mounts, allowing you to deploy multiple camera points across a facility without repeat ordering.
Key Features
- 4-Pack Quantity: Four mounts per box means you can cover multiple zones or rooms in a single purchase—reduces handling and ordering overhead in medium-scale deployments.
- T-Bar Compatibility (15mm, 24mm, 35mm): Supports the three most common suspended ceiling grid widths used in North American and European commercial construction. Measure your grid before ordering; mismatched T-bar width will cause installation friction and potential remounting.
- Square-Edge and Tegular Edge Tile Support: Tegular (recessed) tiles are common in older buildings and acoustic-heavy spaces; square-edge tiles are standard in modern construction. The 01612-001 handles both, eliminating the need to specify mount type at purchase.
- Axis White Finish: Matches standard Axis camera housings and blends with white drop ceilings. If your ceiling is a different color, you may need to paint or source color-matched covers—not included.
- Safety Wire Compatibility: Works with Axis Safety Wire (sold separately) for anti-theft anchoring in high-traffic or theft-prone areas. The mount accepts the wire attachment point; confirm wire length and gauge with your security integrator.
- Camera and Stand Support: Designed for standard Axis dome and compact fixed cameras, as well as Axis-brand mounting stands. Does not support heavy PTZ units or third-party camera lines without adapter verification—always confirm camera weight and mount pattern before deployment.
Integration & Compatibility
The 01612-001 is a passive mechanical accessory; it requires no power, network connection, or configuration. Installation is straightforward: secure the mount to the T-bar grid using the integral clamps, position the camera or stand on top, and level. Typical install time per mount is 5–10 minutes in an accessible ceiling. If your facility has drop-ceiling tiles larger than standard (36″ × 36″ common) or non-standard grid spacing, test fit before bulk installation.
For multi-camera deployments, pair these mounts with network switches and PoE injectors to deliver power and data to each camera location. Plan your cable runs (typically above the suspended ceiling) before mounting to avoid repositioning.
Installation Considerations
Suspended ceilings are rated to support limited weight—typically 1–2 lbs per grid cell for standard tile systems. A single Axis compact camera (roughly 0.5–1.5 lbs) is well within spec; stacking multiple cameras or mounts on one grid intersection is not recommended. Verify your ceiling design load and consult the building's mechanical drawings if deploying in a data center or high-security facility where additional bracing may be required. In seismic zones, additional seismic-rated mounting hardware may be mandated by code.
Frequently Asked Questions
Q: Can I use the 01612-001 mounts on a drywall or concrete ceiling?
A: No. The 01612-001 is engineered exclusively for suspended tile grid systems. For drywall or hard ceilings, use Axis pendant mounts or wall brackets instead.
Q: What is the maximum camera weight the 01612-001 can support?
A: The mount itself is rated for standard compact and dome cameras (typically under 2 lbs per unit). Maximum load depends on your ceiling tile system's weight rating—consult the tile manufacturer or building documentation. Do not exceed the ceiling's design load limit.
Q: Do I need to use Axis Safety Wire with the 01612-001?
A: Safety wire is optional. It is recommended in high-traffic retail or public spaces where theft or accidental dislodging is a concern. Standard installations do not require it.
Q: Will the 01612-001 work with my PTZ camera?
A: PTZ units are typically heavier than fixed domes and require specialized mounts with motorized pan/tilt bases. The 01612-001 is designed for fixed and compact dome cameras only. Confirm camera specifications and weight before purchase.
Q: Can I paint the 01612-001 to match a colored ceiling?
A: Yes. The Axis White finish accepts standard acrylic or spray paint. Test paint adhesion on a non-visible area first to ensure durability in a humid environment (if applicable).
Q: How do I know if my grid is 15mm, 24mm, or 35mm T-bar?
A: Measure the width of the metal grid runner (T-bar) with a ruler or caliper. 15mm (0.6″) is the narrowest, 24mm (0.9″) is mid-range, and 35mm (1.4″) is the widest common standard. All three are supported by the 01612-001.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 01612-001 is a no-nonsense accessory that solves a real problem: how to mount a camera in a drop-ceiling environment without obvious visible brackets. The four-pack format is practical—you're not buying single units and paying shipping multiple times. What you need to understand before deploying this is that the mount's rating depends entirely on your ceiling tile system's design load.
Technical Highlights:
- T-Bar Width Flexibility (15mm, 24mm, 35mm): The three-size compatibility eliminates guessing or remounting if you deploy across multiple buildings or zones with different ceiling generations. Standard office construction uses 24mm or 35mm grids; older facilities and data centers often use 15mm. No need to stock three different SKUs.
- Square-Edge and Tegular Tile Support: Tegular tiles have a recessed edge and are heavier; square-edge tiles sit flush. Supporting both means the 01612-001 works in acoustic-heavy older buildings and modern minimalist spaces without modification. A single SKU covering both tile types reduces inventory risk.
- Axis White Finish with Paint-Ability: If your facility's suspended ceiling is not standard white, the finish accepts acrylic or spray paint. Test paint curing in a humid environment first (if your facility runs HVAC with high humidity); paint adhesion can be an issue in extremely damp spaces like humid server rooms or non-climate-controlled warehouses.
Deployment Considerations:
- Ceiling Load Limits Are Your Constraint: The 01612-001 itself is not the failure point—your drop-tile ceiling system is. Standard suspended ceilings are rated for 1–2 lbs per grid cell. A compact Axis dome (0.5–1.5 lbs) is fine; stacking two cameras or mounts on one grid intersection is not. In high-seismic areas or retrofit installations, coordinate with your facilities team before large-scale deployment.
- Installation Time and Cable Management: Plan your network and power drops above the suspended ceiling before mounting cameras. If you're feeding 10+ cameras through the same grid area, cable congestion above the ceiling becomes a real headache. Route cables to accessible panel points and test cable stress before final mounting.
The 01612-001 is the right choice for multi-location office, retail, and light warehouse deployments where drop ceilings are standard and you want cameras to vanish into the infrastructure. It's not for exposed ceilings, outdoor sites, or environments where you need heavy-duty mechanical protection or seismic bracing. If you're deploying in a historic building with plaster ceilings or a modern open-plan warehouse with exposed trusses, you'll need a different mount strategy.
