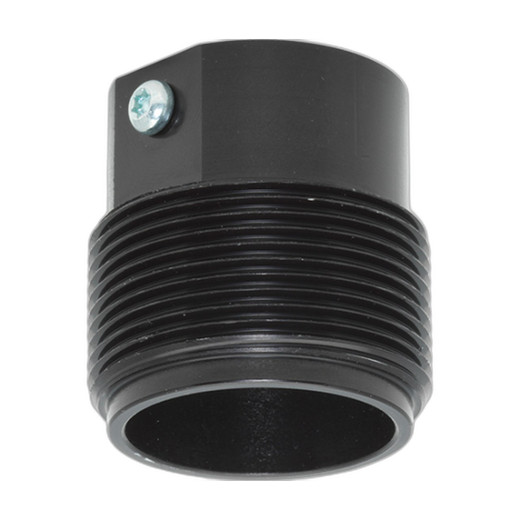

Axis T91A06 Pipe Adapter 3/4-1.5" - 5503-091

Axis 5503-091 Pipe Adapter 3/4-1.5"

Overview

The Axis 5503-091 is a threaded pipe adapter that solves a common installation constraint: bridging mismatched NPT and NPS thread sizes on pendant mounting systems. If your facility has existing 3/4" NPT pipe infrastructure but your Axis pendant kit requires a 1.5" NPS connection, this adapter eliminates the need to source custom fabrication or abandon existing conduit runs. It's a straightforward compatibility enabler for retrofit deployments and mixed-infrastructure sites.

Key Features

• Thread Conversion: 3/4" NPT to 1.5" NPS — Matches camera pendant kits to existing 3/4" pipe without cutting, rethreading, or replacement. Saves labor time on jobs where infrastructure is already in place.
• Full AXIS T91A Range Compatibility — Works across the entire T91A pendant bracket family, so you don't need to research individual model compatibility. One adapter covers multiple camera types and mounting scenarios.
• Durable Construction — Built to withstand vibration, thermal cycling, and the mechanical stress of camera load transfer. Means you won't face callbacks for loose connections or premature failure in the field.
• Straightforward Installation — Screw-in adapter design requires no special tools, no drilling, no pipe dope or sealant learning curve. Installation time measured in minutes per pendant, not hours.
• Discreet Profile — Designed to blend into typical ceiling and wall mounting environments. Not a visual liability in retail, institutional, or industrial settings where aesthetics matter.

Integration & Compatibility

The 5503-091 (often searched as 5503 091) is purpose-built for Axis T91A pendant kit systems. Verify your specific pendant model against the T91A family before ordering — the adapter handles thread conversion but assumes the pendant bracket itself is T91A-compatible. If you're unsure whether your mounting infrastructure uses NPT or NPS threads, check the existing pipe fitting or consult your facility documentation before purchase.

This adapter does not alter electrical properties, power delivery, or any other aspect of your camera or pendant system — it is purely mechanical. Deploy it in the same environmental conditions your camera and pendant are rated for.

When to Choose a Different Approach

If your existing pipe is not 3/4" NPT, or if your pendant requires a thread size other than 1.5" NPS, this adapter will not fit. Consider alternative pendant mounting hardware or custom pipe fabrication. If you're building new infrastructure from scratch, standardizing on a single thread size eliminates the need for adapters entirely.

Frequently Asked Questions

Q: Will the 5503-091 fit my Axis pendant kit?

A: Yes, if your kit is part of the AXIS T91A range. The adapter is designed specifically for T91A pendants. Check your kit model number against the T91A family before purchase.

Q: What thread standards does the 5503-091 handle?

A: It converts 3/4" NPT (National Pipe Taper) incoming to 1.5" NPS (National Pipe Straight) outgoing. NPT is tapered and self-sealing; NPS is straight. Ensure your existing pipe is NPT before ordering.

Q: Can I use this adapter outdoors?

A: The adapter itself is durable metal, but its environmental rating depends on your pendant and camera. Install it in the same conditions your camera system is rated for. If your camera is IP66, the adapter must not become a water-collection point — ensure proper mounting orientation.

Q: Do I need any special tools or sealant to install the 5503-091?

A: No. The adapter is a simple screw-on fitting. Hand-tight installation is standard; no thread sealant or pipe dope is required for mechanical fit, though you may add PTFE tape if your site standard requires it.

Q: What's the maximum load the 5503-091 can support?

A: The adapter transmits load from your camera and pendant to the existing pipe. Load capacity is limited by the pipe itself, not the adapter. Verify your 3/4" NPT pipe can support the total weight of your pendant and camera assembly.

Q: Is the 5503-091 NDAA or TAA compliant?

A: This is a passive mechanical adapter — no electronics, no software, no compliance certifications apply. It does not affect your camera's compliance status.

Ted Perry

Perspective based on aggregated and affiliated engineering team experience.

The 5503-091 is a low-cost solution to a real installation problem: thread mismatch. I've seen integrators waste half a day fabricating custom adapters or cutting/rethreading existing pipe because they didn't have the right intermediate fitting. Axis 5503-091 eliminates that work and keeps labor costs predictable.

Deployment Advantages:

• 3/4" NPT to 1.5" NPS Thread Conversion: Lets you mount T91A pendants on existing 3/4" infrastructure without pipe modification. On retrofit jobs, this saves material cost and installation time — typically 30 minutes per pendant, versus several hours for custom work.
• T91A Range Universality: One SKU covers the entire pendant bracket family, so your stock bin doesn't fill up with model-specific parts. Reduces spare parts burden and simplifies procurement.
• Mechanical Simplicity: No electronics, no compatibility matrix, no firmware questions. If the threads match, it works. On-site troubleshooting is instant.

Deployment Considerations:

• Thread Inspection Required: Verify that your existing pipe is NPT (tapered) and not NPS or BSPP. Wrong thread standard will cross-thread and create a leak or stuck fitting. Five minutes of verification saves callbacks.
• Load Path Verification: The adapter is only as strong as the pipe it screws into. If your 3/4" NPT is old, corroded, or undersized for your camera weight, the adapter won't rescue a weak installation. Do a pre-installation structural walk.
• Outdoor Orientation: If mounting outdoors, ensure the adapter is not positioned to collect standing water. The NPT/NPS seal is mechanical, not hydrophobic — water ingress can corrode threads if the assembly is mounted upside-down or in a pocket.

Use the 5503-091 on retrofit jobs where existing 3/4" NPT infrastructure is in place and you're retrofitting Axis T91A pendant cameras. It's a narrow-use tool, but on those jobs it pays for itself in one day of labor avoidance.
