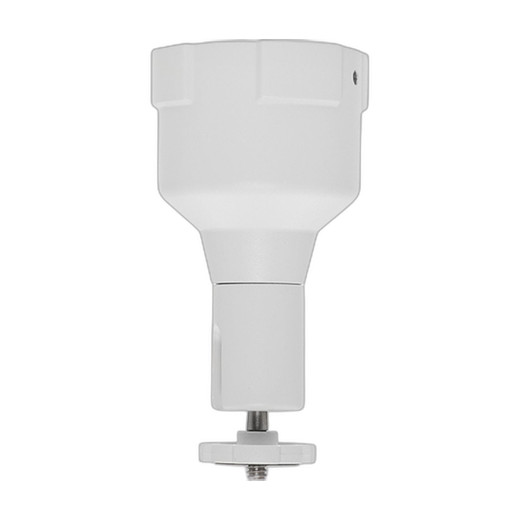

Axis 5017-051 T91A05 Camera Holder Pendant Mount
The Axis 5017-051 is a purpose-built pendant-mounted camera holder engineered for installations where overhead pipe infrastructure already exists or can be easily integrated. This accessory addresses a specific deployment constraint: securing an IP camera to existing building piping without requiring new wall penetrations, conduit runs, or structural modifications. If your facility has 1.5" NPS or NPT piping already in place—common in industrial, warehouse, and commercial buildings—this holder lets you leverage that infrastructure rather than adding mounting points.
Key Features
- 1.5" NPS and NPT Thread Compatibility: Threads directly onto standard 1.5-inch National Pipe Straight (NPS) or National Pipe Taper (NPT) fittings. Eliminates the need for drill-and-anchor wall mounts or ceiling penetrations if compatible piping runs through your surveillance zone.
- Universal Tripod Mount Interface: Accepts any camera with a standard 1/4"-20 tripod socket. This covers the vast majority of Axis IP cameras and third-party network cameras in the market, giving you flexibility to swap or upgrade optics without replacing the holder.
- Pendant-Drop Configuration: Suspends the camera below the pipe for clean sightlines in areas where wall or corner mounting isn't practical—particularly valuable in open-plan warehouses, manufacturing floors, and retail environments where ceiling or overhead structure is the only mounting option.
- Durable Construction: Built to withstand the weight and vibration typical of industrial environments and the slight sway of pendant mounting, ensuring the camera stays aimed and level during operation and maintenance cycles.
- Quick Installation: Hand-tight connection to pipe; no special tools or structural engineering required. Security integrators can install and aim multiple units rapidly without waiting for construction crews or facility modifications.
- Aesthetic Integration: Low-profile design that doesn't draw attention in customer-facing or managed-appearance facilities—important in retail, hospitality, and corporate spaces where visible security hardware can be a concern.
Integration and Compatibility
The 5017-051 mounts to any standard 1.5" threaded pipe, whether it's existing compressed-air lines, water piping conduit, or dedicated pipe runs you install for camera placement. Before ordering, verify your target pipe thread type (NPS vs. NPT) and that the pipe diameter is exactly 1.5 inches—common industrial pipe sizes include 1", 1.25", and 2", so measure carefully to avoid compatibility issues.
Because it uses the universal 1/4"-20 tripod socket, this holder works with Axis network cameras across their portfolio—dome, turret, and box models—as well as cameras from other manufacturers that follow the same tripod standard. This flexibility is valuable in multi-vendor environments or when you're planning upgrades.
For deployments requiring multiple camera angles or redundant coverage, the pendant approach scales well; you can space holders along a continuous pipe run without drilling individual holes or adding bracket clutter to walls and pillars.
When to Choose a Different Approach
If your facility has no suitable piping overhead, or if you prefer wall-mounted or corner-mount solutions, explore alternative mounting brackets and holders from the Axis portfolio or industry-standard quick-release tripod mounts. Similarly, if the target pipe is a different diameter (1", 2", etc.) or thread type, verify thread compatibility before purchase.
Frequently Asked Questions
Q: Does the 5017-051 work with all Axis cameras?
A: Any Axis camera with a standard 1/4"-20 tripod socket is compatible. This includes most Axis dome, turret, and compact box models. Verify your specific camera model has a tripod mount interface before ordering.
Q: What's the difference between NPS and NPT threads, and does it matter for this holder?
A: NPS (National Pipe Straight) and NPT (National Pipe Taper) are two different thread standards. The 5017-051 threads onto both, but you must match the thread type of your existing pipe. If you're unsure, take a photo of your pipe's end or thread marking and verify before installing.
Q: Can I use this holder for a 1-inch or 2-inch pipe?
A: No. The 5017-051 is designed specifically for 1.5" NPS/NPT pipes. Using it on a different diameter will not produce a secure, watertight connection. Confirm pipe diameter before purchase.
Q: Is the holder load-rated for heavy cameras?
A: The 5017-051 is built from durable materials designed for standard network cameras (typically 0.5–2 lbs). For exceptionally heavy camera housings or thermal modules, contact the manufacturer or your integrator to verify load capacity before deployment.
Q: How do I aim the camera after installation?
A: The tripod mount interface includes a friction ball or tilt-and-pan capability, depending on the specific tripod head you select. The holder itself provides the suspension point; the aiming is controlled by the mount adapter or head between the holder and camera.
Q: Does the holder come with pipe adapters or fittings?
A: The 5017-051 is the holder only. It threads directly onto 1.5" NPS/NPT pipe. If you're running new pipe or need adapters to match existing infrastructure, coordinate with your facilities or HVAC team—those are sourced separately.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 5017-051 is a no-nonsense pendant holder—it solves a real constraint in industrial and warehouse deployments where existing piping infrastructure can be leveraged for camera placement. This is an accessory that works only if you already have 1.5" NPS or NPT piping running through your surveillance zone; otherwise, it's the wrong tool.
Technical Highlights:
- 1.5" Thread Compatibility (NPS & NPT): Direct connection to existing or new 1.5-inch threaded pipe eliminates the need for wall anchors, conduit runs, or structural penetrations. In facilities with compressed-air, water, or process piping, this is a real cost and time saver during integration.
- Universal 1/4"-20 Tripod Socket: Accepts any standard tripod-mount camera, not just Axis. This flexibility matters when you're managing multi-vendor cameras or planning future upgrades without replacing the entire holder assembly.
- Pendant-Drop Configuration: Suspends the camera cleanly below the pipe for unobstructed sightlines in open floor plans. Particularly valuable in retail, warehousing, and manufacturing where wall space is limited and overhead structure is your only real estate.
Deployment Considerations:
- Pipe Diameter and Thread Type Matter Critically: The 5017-051 is thread-specific to 1.5" NPS or NPT. Measure twice—using it on a 1" or 2" pipe will not work, and common industrial piping includes multiple diameters. Verify existing infrastructure before ordering.
- Camera Weight is a Factor: While this holder is built for standard network cameras, very heavy housings (thermal modules, large PTZ gimbals) should be load-tested or confirmed with the manufacturer before deployment. Pendant mounting adds leverage that could strain connection points if the camera is significantly overweight.
The 5017-051 is ideal for warehouse and manufacturing environments where camera placement must integrate with existing facility infrastructure—especially when pipe runs already exist and drilling or structural modification is costly or inconvenient. In greenfield deployments or facilities without suitable piping, a wall-mount or corner bracket is likely a better choice.
