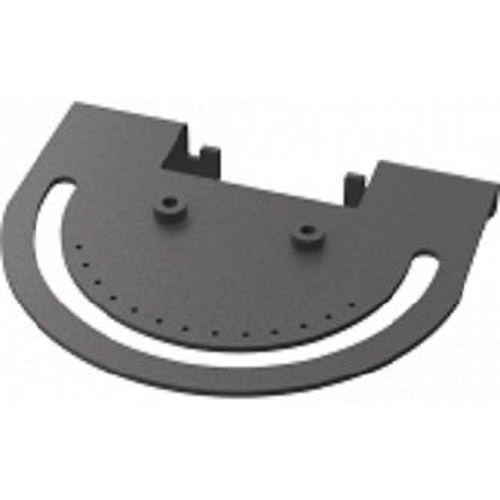

Axis 01220-001 T90 Single Bracket Mount
The Axis 01220-001 is a mounting bracket engineered to secure Axis T90 illuminators in outdoor surveillance deployments. This single-bracket solution handles the structural demands of exterior lighting infrastructure, where wind load, temperature cycling, and UV exposure are routine operational factors. If your deployment calls for dedicated supplemental lighting to extend camera coverage into low-light zones — perimeter fencing, parking lots, building facades, loading docks — this bracket provides the mechanical foundation.
Key Features
- T90 Illuminator Compatibility: Engineered specifically for Axis T90 series lighting units, ensuring mechanical fit and load rating alignment with the fixture design. No improvisation or universal bracket workarounds required.
- Outdoor-Rated Materials: Corrosion-resistant construction withstands direct rain, salt spray, and UV exposure without degradation. Relevant when installations are near coastal zones or heavy industrial environments where galvanic corrosion shortens bracket life significantly.
- Durable Construction: Robust structural design supports the weight and wind forces exerted by a mounted T90 unit. A flimsy bracket means light positioning drift, shadows creeping across camera view, and potential realignment work mid-season.
- Secure Fastening System: Precision mounting hardware ensures the bracket locks the T90 firmly in place. Vibration from wind or adjacent equipment won't loosen the illuminator or shift its beam angle over time.
- Weather-Resistant Finish: Surface treatment resists moisture intrusion and oxidation, preserving both structural integrity and appearance across seasonal temperature swings and wet conditions.
- Simplified Installation: Single-bracket approach reduces installation complexity compared to multi-point load frames. Quicker commissioning on building exteriors or pole mounts where access is constrained.
Integration and Compatibility
The 01220-001 mounts directly to Axis T90 illuminators. When planning a low-light surveillance augmentation strategy, pair this bracket with a compatible T90 unit and position it to cover blind zones where your primary cameras operate below their minimum illumination threshold. Mounting surfaces must be structurally sound (concrete, steel, or treated wood) and capable of supporting the combined weight of the bracket and illuminator. Verify mounting substrate before installation.
Deployment Applications
Typical deployments include perimeter security (fence line monitoring with nighttime illumination), parking facility lighting (reducing driver blind spots and improving forensic video), building entrance/exit points (clear facial identification in evening hours), and warehouse exterior surveillance (dock areas, loading ramps). Any outdoor camera installation operating below 0.5 lux at night without supplemental illumination is a candidate for T90 bracket mounting.
What's in the Box
- Axis T90 Single Bracket (01220-001)
- Mounting hardware
- User manual
Frequently Asked Questions
Q: Can the Axis 01220-001 mount to a standard conduit pole?
A: Yes, if the pole diameter matches the bracket's clamp range and the pole material is non-brittle (galvanized steel is standard). Verify pole specifications with the mounting manual before final installation. Wood poles require lag bolts into solid stock; thin-wall tubing may require reinforcement plates.
Q: Is stainless steel hardware included?
A: Hardware composition is specified in the user manual. Coastal or high-corrosion environments may require upgrading fasteners to stainless or A4 specification — confirm with the manual before specifying.
Q: What is the maximum T90 illuminator weight the bracket supports?
A: Load rating is detailed in the product datasheet. Wind load rating depends on mounting surface and orientation — consult the installation guide for your specific building/pole scenario.
Q: Does this bracket include a tilt adjustment mechanism?
A: The single-bracket design provides fixed positioning. If beam angle adjustment is required post-installation, check the T90 illuminator documentation for integrated tilt options or plan for bracket repositioning during commissioning.
Q: What surface finishes are available?
A: Standard outdoor-rated finish is supplied. Custom finishes (paint, powder coat) are not included; coordinate with integrators if color matching to building facade is required.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01220-001 is a straightforward mounting solution with no hidden complexity — which is exactly what you want from a bracket. Outdoor illuminator mounts live or die based on material durability and fastener specification. The 01220-001 addresses both: outdoor-rated materials resist salt, UV, and thermal cycling, and the included hardware is matched to the bracket design. That said, hardware composition matters in aggressive environments — always cross-check the manual for coastal installations.
Technical Highlights:
- Purpose-Built for T90 Illuminators: No universal bracket guessing. The 01220-001 is engineered to the T90's weight and beam angle, so installation alignment is predictable and repositioning stays minimal over the bracket's operational life.
- Corrosion-Resistant Materials: Outdoor-rated construction handles direct rain and UV without oxidizing or weakening. Matters significantly on multi-year deployments where bracket replacement interrupts camera coverage and requires truck rolls.
- Single-Point Installation: Reduces on-site assembly time. On building facades or pole mounts where working height and access are tight constraints, a simpler bracket speeds commissioning.
Deployment Considerations:
- Verify mounting substrate load capacity before installation — concrete and structural steel accept the bracket's fastening pattern easily; hollow drywall, thin metal studs, and composite panels do not.
- Fixed positioning means beam angle is locked at installation. If your lighting strategy requires post-commissioning adjustment, plan for bracket repositioning rather than relying on the illuminator alone.
- In high-wind zones or areas with seasonal ice/snow loads, confirm the bracket's rated wind resistance against local building codes and your site's worst-case exposure.
The 01220-001 is the right choice for outdoor perimeter and facility lighting where T90 compatibility is non-negotiable and installation surfaces are solid (concrete, steel). Skip this if your mounting scenario is temporary, requires frequent beam repositioning, or your T90 unit is not confirmed compatible with single-bracket geometry.
