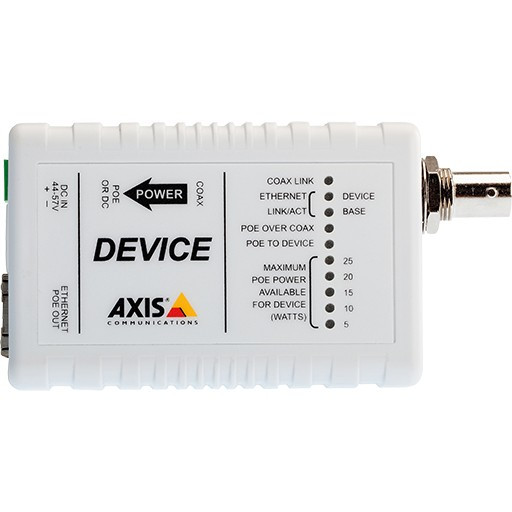

Axis 5027-421 PoE+ Over Coax Media Converter
Overview
The Axis 5027-421 is a PoE+ media converter that solves a practical problem: upgrading surveillance infrastructure without running new Ethernet cable. If you have coaxial cable already in walls, ceilings, or conduit — from an older analog system or a building with existing runs — this accessory lets you transmit both power and high-speed network data through that same coax. That matters because pulling new Cat6A or fiber across a large facility, through multiple floors, or through conduit in older buildings can cost thousands in labor alone. The T8642 (5027-421) eliminates that disruption by working with what's already there.
This is a wired, indoor-rated accessory designed for integrators and IT architects planning IP camera retrofits. It bridges the gap between legacy infrastructure and modern Axis IP cameras and compatible PoE+ devices, enabling cost-effective upgrades without facility reconstruction.
Key Features
- PoE+ and data over coaxial cable: Transmits both 802.3at power and Ethernet data down the same coax run — no need to run parallel Cat6 or fiber alongside existing cable. Saves conduit space and labor.
- Seamless integration with existing coax infrastructure: If the cable is already installed and functional, you deploy the converter pair (one at the camera end, one at the network end) and begin transmitting immediately. No new wall cuts, no rerouting through attic or plenum.
- Extended transmission range for remote device placement: Coaxial cable can deliver both power and signal across longer runs than standard Ethernet in some configurations, allowing cameras or network devices to sit further from the central switch or power source.
- High-speed data connectivity for reliable surveillance: Maintains sufficient bandwidth for real-time video streams from modern PoE+ powered devices. No degradation in frame rate or resolution due to the conversion layer itself.
- Plug-and-play installation with minimal configuration: Converters pair automatically — no complex addressing or pairing protocols. Connect power, coax, and Ethernet; the devices negotiate and begin forwarding traffic immediately. Reduces on-site engineering time.
- Compatible with Axis network cameras and third-party PoE+ devices: Works with any device that draws power via 802.3at PoE+ and communicates over standard Ethernet — Axis models and non-Axis gear alike. Vendor-agnostic, so you're not locked into a single camera brand downstream.
Integration & Compatibility
Deploy the Axis 5027-421 in pairs — one converter at the remote end (near the camera) and one at the central location (near your network video recorder or PoE switch). The remote unit receives DC power and coax input from the central converter; the central unit connects to your network infrastructure and provides the PoE+ source. Both units handle the electrical conversion and signal bridging transparently.
Typical scenarios: retail chains with existing coax in each store upgrading to IP cameras; industrial warehouses with legacy analog runs being repurposed for smart sensors; office buildings where running new Ethernet would disrupt tenants or require expensive structural work. Any deployment where coax already exists and you need to preserve it rather than replace it benefits from this approach.
For PoE power planning, confirm that your central PoE switch or injector can supply sufficient wattage for the total number of remote devices. The T8642 passes power through transparently — it does not add power budget loss beyond the coax cable itself.
Frequently Asked Questions
Q: Can I use the Axis 5027-421 with non-Axis cameras?
A: Yes. The T8642 is a standard PoE+ media converter. It works with any camera or PoE+ device that conforms to IEEE 802.3at power delivery and standard Ethernet — Axis or third-party.
Q: How long a coaxial run can the T8642 support?
A: The T8642 converts PoE+ and Ethernet to coax format. Actual transmission distance depends on coax type (RG-59, RG-6, RG-11) and quality. Axis documentation and the converter pair's technical specs will detail maximum range for your specific cable. Consult the manufacturer datasheet for your coax gauge and type.
Q: Do I need to configure the converters, or is it plug-and-play?
A: Plug-and-play. The Axis 5027-421 pair automatically negotiates and begins forwarding PoE+ power and Ethernet frames. No IP addressing, no configuration software required. Connect and power on.
Q: Is this accessory rated for outdoor use?
A: No. The T8642 is indoor-rated only. If you need to place converters in outdoor or wet enclosures, house them indoors and run the coax outside.
Q: Can multiple T8642 pairs coexist on the same PoE switch?
A: Yes. Each pair is independent. You can deploy as many converter pairs as your PoE switch's power budget and port count allow. Each central unit draws power from the switch; each remote unit is powered by its paired central unit.
Q: What happens if the coaxial cable degrades or is damaged?
A: The converters will not transmit power or data across a broken or shorted run. Test the coax with a standard cable tester before installing converters. Poor cable condition will result in link loss, similar to any Ethernet cable fault.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 5027-421 solves a real pain point in retrofit scenarios: you already have coax in the walls, and running new Ethernet would be prohibitively expensive or disruptive. The T8642 is the pragmatic answer. It's not a workaround — it's a legitimate infrastructure bridge that lets you preserve capital investment in existing cable runs while deploying modern PoE+ cameras and sensors.
Technical Highlights:
- PoE+ (802.3at) pass-through over coax: Delivers the full power envelope — up to ~30W at the remote end — through coaxial cable. Eliminates the need for separate power supplies or injectors at the camera location. That's meaningful in multi-story builds or long cable runs where you'd otherwise need midspan injectors every few devices.
- Transparent Ethernet bridging: The converters do not add latency or reduce bandwidth. Full-speed network data passes through; your NVR or VMS sees each remote device as if it were directly connected. No performance tax for the convenience.
- Indoor-rated deployment: T8642 units are built for climate-controlled environments. If your coax runs outdoors, enclose the converters indoors and use weatherproofed connector panels at the entry/exit points. This is common in retail and warehouse retrofits where the converter lives in a cabinet and coax terminates at wall plates in the sales floor or aisles.
Deployment Considerations:
- Coax cable condition is critical. Old, kinked, or corroded RG-59 may not reliably carry both power and data. If you're retrofitting a system more than 15–20 years old, budget for a pre-deployment cable audit. A cheap continuity test now saves a troubleshooting nightmare after install.
- Each T8642 pair consumes one PoE+ port and one Ethernet port on your central switch. A 48-port PoE+ switch can theoretically support 48 remote pairs, but power budget is the real limiter. At roughly 15–20W per remote device, a 740W budget on a typical enterprise switch means you're looking at 30–40 concurrent devices, not 48. Plan accordingly.
- The converter pair introduces two additional points of failure. Unlike a single Ethernet cable, you now have two active devices to power, monitor, and potentially troubleshoot. Build redundancy at the network edge if this is a critical camera line.
Best fit: retail chains or warehouse operators upgrading legacy coax camera runs to IP; office buildings where running new Ethernet would require destructive work or tenant disruption; distributed manufacturing sites with existing coax already run but no centralized network infrastructure. Avoid if your existing coax is unknown condition, or if you need future-proof 10G or higher speeds — those are best served by new fiber or higher-grade twisted pair.
