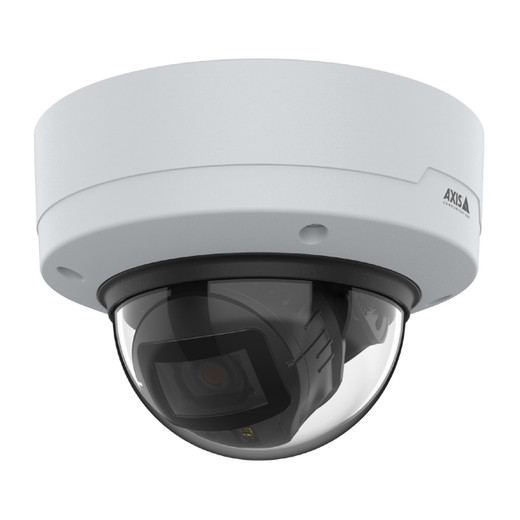

Axis Q9307-LV 5MP Low-Light Vandal Dome Camera - 02487-001

Axis 02487-001 Q9307-LV 5MP Low-Light Vandal Dome IP Camera

The Axis 02487-001 is a 5MP indoor dome designed specifically for low-light surveillance where traditional cameras require external lighting or struggle to maintain color fidelity. It combines exceptional light sensitivity with on-camera AI processing and physical durability — key when deployment rules out repositioning after installation. This is a genuine low-light performer, not a compromise camera marketed as one.

Overview

The Q9307-LV fills a practical gap in Axis IP cameras for facilities that demand forensic-quality video in near-darkness without external light sources or cloud processing. A 1/2.7" CMOS sensor paired with Lightfinder 2.0 technology achieves 0.13 lux minimum illumination in full color — meaning you capture usable detail when overhead lighting is minimal or switched off. This eliminates a common tradeoff: black-and-white night mode or grainy color. IR illumination adds a true 24/7 option when ambient light drops further. The varifocal 3–8mm lens (104° wide to 40° zoomed) lets you adjust coverage angle at commissioning without swapping hardware.

Built-in AI object detection and classification run on the camera itself, not a separate server or cloud service. This means detected events trigger immediately — critical for time-sensitive responses in banking, retail, or facility security. Edge processing also cuts bandwidth: H.264 compression with Zipstream technology reduces storage footprint by prioritizing foreground motion and detail over static backgrounds.

The IK10 vandal rating (rated for impacts up to 20 joules) protects against deliberate strikes or bumps common in high-traffic or hostile environments. IP52 splash and dust protection ensures reliable operation in indoor spaces where humidity or minor water spray occurs — think kitchens, cooling rooms, or loading docks. Axis Edge Vault secures firmware updates and stored credentials, blocking unauthorized modification.

Key Features

• 5MP Resolution (2592 × 1944): Captures fine detail needed for facial recognition, license plate reading, or forensic review. Larger image size means you can zoom into recorded footage without excessive quality loss during post-incident analysis.
• Lightfinder 2.0 with 0.13 Lux Minimum: Maintains color video in dim indoor environments — retail aisles at closing time, basement corridors, server rooms. Eliminates the need to install additional lighting in many deployments, lowering project cost and complexity.
• Integrated IR Illumination: Built-in 850nm IR LEDs extend surveillance into complete darkness. No separate IR light fixture required, simplifying wiring and ceiling complexity.
• Forensic WDR: Automatically balances exposure when a subject moves from bright to shadowed areas — a scene-common challenge in retail and transit hubs. You get readable faces and bodies across the frame, not silhouettes against bright windows.
• AI Object Detection & Classification: On-camera analytics identify people, vehicles, or other objects and filter false alarms from reflections, shadows, or blowing leaves. Reduces alert fatigue and lowers bandwidth by suppressing events that don't match configured rules.
• Varifocal 3–8mm Motorized Lens: Remote focus and zoom from the control center mean you can adjust framing post-installation — useful when ceiling mounts are difficult to access. 104° field of view at wide angle covers large spaces; 40° at zoom focuses on specific high-value areas.
• IK10 Vandal Rating: Withstands deliberate impact attempts common in public-facing or at-risk environments. Protects your investment against tampering or destruction.
• IP52 Environmental Protection: Dust and splash resistant — appropriate for indoor deployments but not full rain exposure. Skip this if you need outdoor weatherproofing; consider an outdoor-rated variant instead.
• H.264 + Zipstream Compression: Reduces storage and bandwidth 30–50% compared to standard H.264 by adapting compression to scene complexity. On a 24/7 multi-camera system, this translates to meaningful storage savings and lower archive costs.
• PoE Powered: Single RJ-45 cable delivers power and data — no separate 12V supply or outlet needed. Typical draw is under 13W, so it operates on standard 802.3af PoE switches without straining the power budget.
• Integrated Audio Support: Built-in microphone and speaker enable two-way communication — useful for retail floor announcements or facility access points. Reduces reliance on separate intercom systems.
• Operating Range 0–50°C: Suitable for climate-controlled indoor spaces. If your facility drops below freezing or experiences extreme heat, verify this range aligns with your environment.

Integration & Compatibility

The 02487-001 is ONVIF Profile S compliant, integrating with network video recorders and VMS platforms from mainstream vendors. Consult your system's ONVIF compatibility list to confirm explicit support, though broad adoption makes integration straightforward. Axis Camera Station and third-party NVRs recognize it as a standard IP camera. Edge-based analytics output through standard event hooks — your VMS can trigger alarms or notifications based on detected object classes without custom configuration.

When to Choose a Different Model

The Q9307-LV assumes indoor operation in controlled temperature ranges. If you need outdoor weatherproofing (rain, direct sun, extreme cold), choose an outdoor-rated dome camera with IP67 or higher. If your deployment is well-lit and low-light performance is not a priority, a standard 5MP dome without Lightfinder 2.0 will cost less. If you require higher resolution for wide-area coverage, consider an 8MP or 12MP variant in the same family. For open outdoor sites where vandalism is not a primary concern, a lower-cost bullet camera may suffice.

Deployment Context

Deploy the Q9307-LV in banks (teller areas, vaults), retail environments (checkout, stockrooms), casinos (gaming floors, back-of-house), hospitals (medication rooms, secure corridors), and government facilities where low-light surveillance, AI-assisted monitoring, and tamper resistance are essential. The compact dome form factor blends into suspended ceilings and fits professional installations without drawing attention. Audio capability enables security staff to communicate directly with visitors or alert personnel to incidents in real time.

Frequently Asked Questions

Q: Does the Axis 02487-001 work with Milestone XProtect?

A: Yes. The Q9307-LV is ONVIF Profile S compliant and integrates with Milestone XProtect as a standard IP camera. Consult Milestone's ONVIF camera compatibility matrix to confirm your specific XProtect version and desired feature set (analytics passthrough, event triggers, etc.).

Q: What is the maximum IR range on the 02487-001?

A: The datasheet specifies integrated IR illumination, but the exact range is not detailed in available evidence. Contact the vendor or manufacturer for IR throw distance specifications if IR range is critical to your deployment.

Q: Can I use the Q9307-LV outdoors?

A: The IP52 rating and 0–50°C operating range limit the Q9307-LV to indoor or covered outdoor spaces. Direct rain exposure and temperature extremes will void reliability. For outdoor deployments, select an outdoor-rated variant with IP66/IP67 protection.

Q: How much power does the 02487-001 draw?

A: The camera is PoE powered and draws under 13W maximum, compatible with standard 802.3af switches. This low draw means you can deploy multiple units on a single switch port budget without requiring PoE+ (802.3at) infrastructure.

Q: Does the Q9307-LV support RTSP or MJPEG streaming?

A: The camera is ONVIF Profile S compliant and supports H.264 compression with Zipstream technology. ONVIF Profile S includes RTSP streaming. Confirm MJPEG support with your vendor, as availability varies by firmware version.

Q: What credentials or firmware security features does the 02487-001 have?

A: The Q9307-LV includes Axis Edge Vault, which secures firmware updates and stored credentials, protecting against firmware tampering and unauthorized credential access. This is essential in facilities requiring strict cybersecurity compliance (healthcare, finance, government).

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02487-001 is a genuine low-light workhorse, not a marketing title. The Lightfinder 2.0 sensor at 0.13 lux performs meaningfully in near-total darkness while keeping color fidelity — a rarity at this price tier. On-camera AI object detection running at the edge eliminates the latency and complexity of sending every frame to a cloud or remote analytics engine. For time-critical security operations (retail loss prevention, facility access points, banking), that immediate detection and local alarm trigger matters.

Technical Highlights:

• 0.13 Lux Minimum Illumination: Captures usable color video in lighting conditions where most standard cameras drop to black-and-white or become unusable. Paired with built-in IR, you have true 24/7 coverage without external light sources — a real cost and complexity win on retrofit projects.
• IK10 Vandal Rating: Withstands 20-joule impacts, protecting the optical path and sensor from deliberate strike or tampering. Critical in public-facing environments or at-risk facilities where camera damage is a real threat.
• Edge-Based AI Analytics: Object detection and classification run locally on the camera, not a separate server. Detection results push to your VMS or NVR in real time, enabling immediate alerts and reducing false positives from shadows, reflections, or environmental motion.
• H.264 + Zipstream Compression: Cuts storage footprint 30–50% compared to standard H.264 by encoding motion regions at higher quality and static backgrounds at lower bitrate. On a 24/7 multi-camera system, this translates to 3–6 months longer retention on fixed storage.
• Forensic WDR: Maintains readable exposure across subjects moving from bright to dark areas — a common scene in retail, transit, and facility environments. You get usable face and body capture, not silhouettes.

Deployment Considerations:

• IP52 protection is indoor/covered-space only. Direct rain or temperature swings outside 0–50°C will stress the seal and optics. Verify your facility climate before committing to ceiling mount.
• PoE draw is under 13W, so it plays nicely on standard 802.3af switches. No power-budget surprises when wiring multi-unit deployments.
• ONVIF Profile S is mainstream, but confirm explicit support in your VMS before procurement if you're running a proprietary or older platform.

Position the Q9307-LV (02487-001) for retail, banking, and facility security where low-light capture, on-camera AI, and physical durability are non-negotiable. It's not the absolute lowest-cost 5MP dome, but it eliminates major operational headaches: external lighting, cloud processing latency, and vandal repair downtime.
