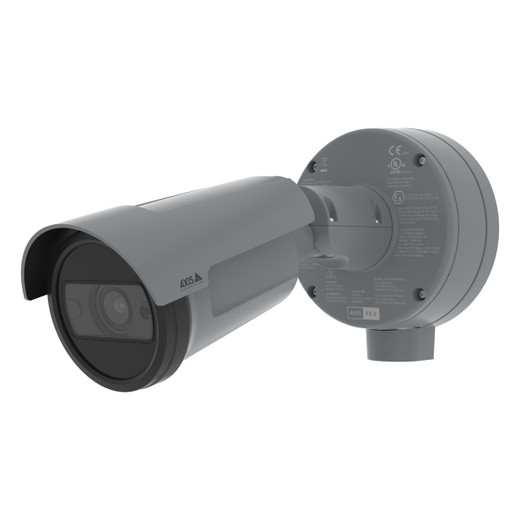

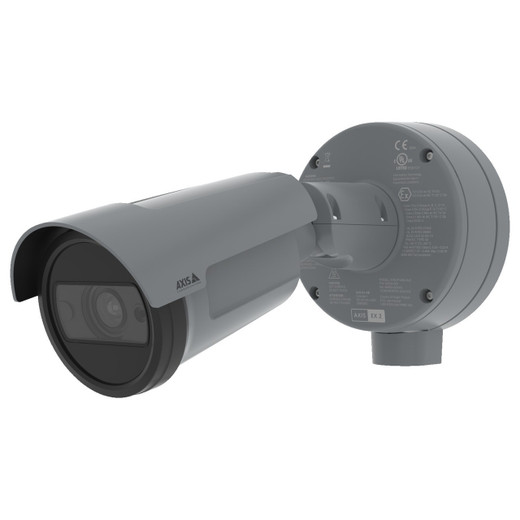

Axis 02534-001 P1468-XLE 8MP Explosion-Protected Bullet IP Camera
The Axis 02534-001 (often searched as 02534 001) is purpose-built for surveillance in hazardous and explosive atmospheres where regulatory compliance is non-negotiable. Certified for Zone 2, 22, and Class I/II/III Division 2 environments, this 8MP bullet camera combines explosion-protected industrial housing with forensic-grade imaging technology, enabling reliable security monitoring where standard cameras cannot operate.
Key Features
- 8MP Resolution at 50/60 fps: Captures detailed video suitable for forensic investigation and regulatory evidence preservation—essential when incident review or compliance audit demands proof-quality footage.
- Lightfinder 2.0 Technology: Achieves 0.07 lux minimum illumination with color fidelity and detail retention in near-total darkness. This means you capture investigable footage in low-light hazardous areas without forcing IR-only recording, reducing nighttime false alarms and improving forensic value.
- Forensic WDR (Wide Dynamic Range): Balances exposure across scenes with extreme lighting contrasts—common in industrial facilities with bright skylights and dark machinery areas. You avoid blown-out highlights or crushed shadows that waste storage and forensic detail.
- 2.08x Optical Zoom with Motorized Focus: Focal length range of 6.2–12.9 mm delivers a 108–49° horizontal field of view. Motorized remote focus and zoom via PoE allow technicians to adjust coverage without entering restricted hazardous zones, reducing safety risk and compliance violations.
- IR Night Vision: Integrated 850nm infrared illumination ensures 24/7 surveillance in complete darkness. No separate lighting infrastructure required in explosive atmospheres where standard floodlights introduce ignition risk.
- H.264 with Zipstream Compression: Reduces bandwidth and storage overhead compared to uncompressed or baseline H.264 streams—a practical factor when recording multiple cameras continuously in remote or bandwidth-constrained industrial sites.
- PoE Powered (Class 3, 7.6W average / 13.0W maximum): Draws under 13W via standard 802.3af PoE, eliminating the need for dedicated power wiring in explosive atmospheres. Single-cable installation simplifies commissioning and reduces installation labor in hazardous-area environments.
- IP66 Weatherproof Housing: Rated for direct rain, dust, and washdown. However, IP66 is not submersion-rated—do not install below water level or in fully immersed environments; that requires IP67 or higher.
- Explosion-Protected Certification: Meets Zone 2/Class II Division 2 standards for gas and dust explosive atmospheres. Certification is audited; verify current documentation with your compliance officer before final installation approval.
- Secure Boot and Signed Firmware: Prevents unauthorized firmware modifications and ensures data integrity—important in regulated industries where audit trails and hardware provenance are compliance requirements.
Integration and Deployment Considerations
The 02534-001 integrates via standard IP camera protocols and ONVIF-compliant VMS architecture, but installation in hazardous zones requires coordination with your facility's engineering and compliance teams. PoE-based remote focus and zoom are valuable when technician access to the camera location is restricted or dangerous; test these functions from your control room before final commissioning.
Pair the P1468-XLE with a network video recorder sized for continuous 8MP 50/60 fps recording across your camera deployment. Zipstream compression reduces storage footprint, but verify your NVR supports this codec before purchase. For large-scale outdoor IP camera installations in hazardous areas, consider PoE switch capacity and UPS backup power requirements early in design—these cameras demand reliable power in safety-critical environments.
When to Choose a Different Model
If your facility does not require explosion-protected certification, consider a non-certified industrial bullet in the Axis family—you'll gain cost savings without sacrificing image quality. If you need pan-tilt-zoom coverage or significantly wider field of view without repositioning, a PTZ variant may be more practical. If your site demands submersion capability (e.g., underwater or fully submerged perimeter), step up to IP67 or IP68-rated models.
Frequently Asked Questions
Q: Is the Axis 02534-001 suitable for Class I Division 1 (continuous hazardous gas) environments?
A: No. The P1468-XLE is certified for Zone 2 and Class I/II/III Division 2 only—intermittent or accidental exposure. Class I Division 1 (continuous or long-duration exposure) requires a camera with higher explosion-protection certification. Consult your site engineer and the full certification documentation before deployment.
Q: What is the maximum IR illumination range on the 02534-001?
A: The datasheet does not specify a fixed IR range in meters. IR performance depends on scene reflectivity, lens aperture, and target distance. Test IR performance in your actual installation environment before final acceptance.
Q: Can the P1468-XLE be integrated with Milestone XProtect or similar third-party VMS platforms?
A: Yes. The camera supports ONVIF Profile S and standard IP video protocols, enabling integration with most major VMS platforms. Verify your VMS vendor's compatibility list for the specific version and codec support.
Q: What is the warranty on the Axis 02534-001?
A: Consult the manufacturer's current warranty terms or your specialty distributor. Explosion-protected equipment may have additional maintenance or recertification requirements that affect coverage.
Q: Does the motorized zoom require any manual focusing after installation?
A: The camera features motorized remote focus, meaning you can adjust focus via PoE from your control interface. However, initial commissioning focus and zoom setup must occur before the camera enters service. Test these functions in your staging environment.
Q: Is the 02534-001 NDAA Section 889 compliant or listed on any restricted-source list?
A: Verify current NDAA and country-of-origin compliance status with your distributor or the manufacturer directly. Compliance designations change; do not assume based on product age.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02534-001 P1468-XLE occupies a rare niche: explosion-protected housing paired with premium 8MP forensic imaging. In regulated hazardous-area surveillance, certification is non-negotiable and often forces a trade-off between compliance and image quality. This camera rejects that trade-off. The 1/1.2" CMOS sensor and Lightfinder 2.0 delivering 0.07 lux color imaging deliver investigable footage comparable to non-certified industrial bullets—critical when regulatory audits demand proof-quality video.
Technical Highlights:
- Lightfinder 2.0 at 0.07 lux: Captures color detail in near-darkness, reducing reliance on IR-only night vision. This matters in compliance reviews where colored footage is more defensible than monochrome IR.
- Forensic WDR: Balances extreme lighting contrasts without losing detail—a real problem in industrial facilities with skylights and dark machinery. Your storage gets dense, investigable footage instead of blown-out or crushed frames.
- PoE-based motorized focus and zoom: Technicians adjust coverage from the control room without entering restricted zones. In Class II Division 2 facilities, reducing site visits is a documented safety win.
- H.264 + Zipstream: Compression reduces bandwidth overhead on remote or congested plant networks—practical in facilities where IT infrastructure was never designed for 24/7 multi-camera video.
Deployment Considerations:
- Certification scope is Zone 2/Class I/II/III Division 2 only. Do not assume applicability to Class I Division 1 or other designations without explicit engineering sign-off from your compliance officer.
- PoE power is stable and straightforward, but verify your switch has the available budget—13W max per camera adds up across a large deployment. IR illumination has no published range specification; test in your actual light environment before final acceptance.
Position the 02534-001 for oil and gas refineries, chemical storage facilities, and pharmaceutical manufacturing where explosive atmospheres are documented and certified, and where forensic-quality footage is a compliance requirement. For non-certified outdoor industrial sites, you'll overpay for certification you don't need—consider a standard bullet instead.
