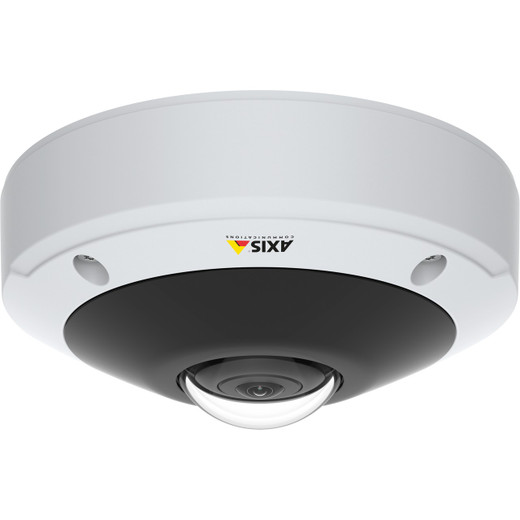

Axis 01567-001 Clear Dome Replacement 4-Pack
The Axis 01567-001 is a bulk replacement dome set engineered for the AXIS M3057/58-PLVE camera series. These clear domes are spare parts intended to restore optical clarity and environmental protection after scratching, fogging, or damage in the field. They are not standalone products — they are purpose-built replacements compatible only with the M3057/58-PLVE housing line.
Key Features
- Anti-scratch hard coating: Resists abrasion from cleaning, weathering, and UV exposure — keeps light transmission consistent over months of outdoor deployment so you don't lose image sharpness to surface degradation.
- Rubber gaskets with environmental sealing: Creates a reliable moisture and dust barrier, protecting the camera internals — essential if you're deploying in high-humidity, dusty, or salt-spray environments where condensation or particulate ingress would degrade sensor performance.
- Clear acrylic or polycarbonate construction: Maintains full optical field of view without color shift or distortion — unlike tinted or smoked alternatives that reduce low-light performance or introduce chromatic artifacts.
- Precision fit for M3057/58-PLVE housings: Drop-in replacement — no modification, shimming, or optical realignment required. Seal and optical geometry are pre-engineered to match the original camera housing, so installation takes minutes instead of hours.
- 4-piece bulk pack: Reduces per-unit replacement cost and eliminates the need to order domes individually. Holds spares on hand to minimize downtime when damage occurs in the field.
- UV-resistant material: Outdoor deployments expose domes to continuous solar UV; non-UV-resistant materials yellow and turn opaque over 12–24 months. This formulation resists that degradation, extending the serviceable life of the replacement dome.
Integration & Compatibility

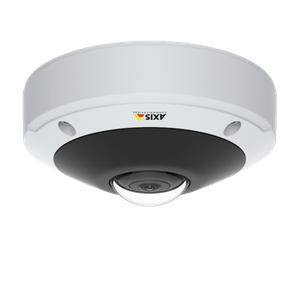

The Axis 01567-001 (often searched as 01567 001) is compatible only with AXIS M3057-PLVE and AXIS M3058-PLVE cameras. Do not attempt to use these domes on other Axis dome models — housing geometry, gasket seat, and optical alignment differ significantly across the M30 and M40 series, and forcing a mismatched dome will result in light leaks, condensation, or optical vignetting.
If you're integrating M3057/58-PLVE cameras into a larger surveillance network, verify that your network video recorder or management platform supports ONVIF Profile S or T discovery, so newly installed or replacement cameras are detected automatically during re-commissioning.
What's in the Box
4× Axis M30-PLVE Clear Dome A units (replacement domes only). Gaskets are pre-installed on each dome. No tools, mounting hardware, or adapters are included.
Deployment Scenarios
These domes are typically ordered as spares when running multi-camera outdoor surveillance systems:
- High-traffic commercial environments (parking lots, building entry points): Mechanical wear from dust storms, sand blasting, or pressure-washing eventually scratches the dome. Keeping 1–2 spare domes on hand avoids sending a technician back to the site twice.
- Industrial facilities with chemical or abrasive atmospheres: Facilities handling grain, cement, or other particulates generate airborne dust that accelerates dome fogging and coating degradation. A rotating replacement schedule keeps cameras clear year-round.
- Outdoor perimeter surveillance in coastal regions: Salt spray accelerates corrosion of gasket materials and causes hazing of uncoated polycarbonate. UV-resistant coated domes extend replacement intervals from 12 to 24+ months.
- Vandalism-prone deployments: If a dome is deliberately damaged, a replacement from this 4-pack can be swapped in the field within minutes, restoring full coverage without a service call.
When to Choose a Different Approach
If your M3057/58-PLVE camera is deployed indoors or in a protected overhang, dome replacement is seldom necessary beyond initial defect returns. If you are evaluating dome camera models for a new installation and are concerned about long-term dome lifecycle costs, consult the manufacturer's recommended replacement interval for your climate zone — some applications warrant heated or hydrophobic dome variants instead.
Dimensions & Environmental Rating
These domes are sealed to IP66 when installed correctly on an M3057/58-PLVE housing — that means direct rain and water jets from all angles are excluded, but sustained submersion or high-pressure washdowns at close range should be avoided. Storage and shipping temperature tolerance is standard for Axis accessories; consult the datasheet for exact limits if deploying in extreme arctic or desert environments.
Frequently Asked Questions
Q: Will the 01567-001 dome fit my M3044-WV or M3045-WV camera?
A: No. The 01567-001 is engineered exclusively for the M3057-PLVE and M3058-PLVE series. Older M30 models (M3044, M3045, M3047) use different dome assemblies with incompatible gasket seats and optical geometries. Installing a mismatched dome will cause light leaks and condensation.
Q: Can I clean the dome with a pressure washer?
A: No. Use a soft lint-free cloth with distilled water or mild soap solution. High-pressure jets can force water past the gasket seal. Abrasive or acidic cleaners will degrade the anti-scratch coating over time.
Q: How long does the anti-scratch coating last?
A: In typical outdoor deployments (temperate climate, moderate dust, no industrial chemicals), the coating should maintain effectiveness for 24–36 months. Harsh environments (coastal salt spray, abrasive industrial atmospheres, frequent cleaning) may reduce this to 12–18 months. UV resistance slows yellowing but does not prevent it entirely.
Q: What is the optical clarity loss compared to a new dome?
A: These domes are new replacement units, not refurbished. Optical clarity is equivalent to factory originals when installed. Over time, scratches and coating degradation will accumulate naturally from environmental exposure, which is why spare domes are ordered proactively.
Q: Do I need any special tools to install the 01567-001?
A: No. The dome slides into the M3057/58-PLVE housing and locks mechanically via the rubber gasket and housing lip. A small flathead screwdriver may help align the gasket during installation, but no torque tools or adapters are required.
Q: Can the gaskets be replaced separately?
A: The 01567-001 comes with gaskets pre-installed and integrated into the dome assembly. Gasket replacement as a standalone service is not a supported field procedure. If gaskets are damaged, order a new dome unit.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01567-001 is a straightforward spare parts item — clear domes with anti-scratch coating and IP66-rated gaskets for the M3057/58-PLVE camera series. If you're running these cameras outdoors, plan to stock at least one spare 4-pack. The anti-scratch coating and UV resistance are the differentiators here; uncoated polycarbonate will yellow and lose clarity in 12–18 months under continuous solar exposure, whereas these coated units hold transparency through 24–36 months in temperate climates.
Technical Highlights:
- Anti-scratch hard coating: Maintains light transmission and image sharpness over extended outdoor deployment — coating degradation is the primary cause of dome replacement in dusty or high-traffic environments, so this specification directly maps to replacement interval and lifecycle cost.
- UV-resistant material: Slows yellowing and hazing from solar exposure. Non-UV-resistant acrylic becomes unusable in 12 months; UV-resistant formulations extend to 24+ months depending on climate and cleaning frequency.
- IP66-rated gasket seal: Direct rain, wind-driven spray, and dust jets are excluded when installed correctly on the M3057/58-PLVE housing. This rating does not cover high-pressure washdowns or submersion — important distinction if your facility uses pressure cleaning equipment near camera mounts.
Deployment Considerations:
- Compatibility is rigid. These domes fit only the M3057-PLVE and M3058-PLVE camera line. Do not attempt to retrofit older M30 or newer M40 series cameras — gasket seat geometry and optical alignment are model-specific. A mismatched dome will trap moisture and introduce vignetting.
- Gaskets are not user-replaceable. If seals are damaged or compressed after repeated installation/removal cycles, order a new dome unit. Running a camera with a compromised gasket will introduce condensation inside the housing within days in humid climates, and that internal fogging is not reversible without full camera replacement.
- Preventive restocking is cost-effective. In multi-camera outdoor deployments (10+ cameras), maintaining 1–2 spare 4-packs on site eliminates emergency service calls. A technician dispatched to swap a dome costs far more than the dome itself — plan ahead if you cannot tolerate downtime.
The 01567-001 is essential spares inventory for any organization running M3057/58-PLVE cameras outdoors in dust, salt, or high-traffic zones. For indoor deployments or well-protected overhangs, dome replacement is rare — order as needed for defects or damage. For coastal or industrial sites, budget 1–2 replacement cycles per year per camera, and stock domes accordingly.
