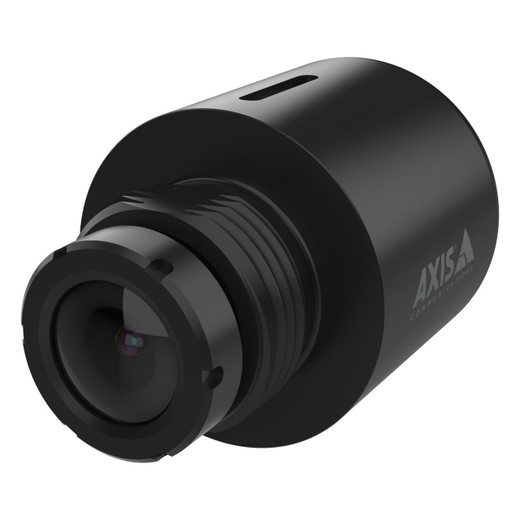

Axis 02640-001 F2105-RE Full HD 1080p Modular Sensor
Overview
The Axis 02640-001 is a modular surveillance sensor engineered as part of Axis's F-Series camera platform, delivering 2MP Full HD 1080p video in a compact, swappable unit. Unlike traditional fixed cameras, this modular architecture lets you pair the sensor with compatible Axis F-Series main units, tailoring coverage to your specific deployment without replacing the entire camera. The F2105-RE is built for outdoor and mobile deployments — think buses, emergency vehicles, or harsh industrial sites — where durability and environmental resilience matter.
The sensor's 1/2.8" progressive scan RGB CMOS imager and 3.1mm F2.0 lens deliver a 108° horizontal field of view, capturing wide-area detail across typical surveillance zones. At 1080p resolution (1920 × 1080), video quality is sufficient for facial identification at close ranges and general activity recognition across mid-depth scenes. Paired with a compatible 2nd-generation Axis F-Series main unit like the AXIS F9111, the 02640-001 can output up to 180 fps at 720p for high-speed forensic review, or 60 fps at full 1080p for standard operation.
Key Features
- Full HD 1080p @ 60 fps (or 180 fps @ 720p): High frame rate capture reduces motion blur during fast-moving scenarios — critical for traffic enforcement, crowd monitoring, or vehicle-mounted surveillance where subjects move unpredictably. The 180 fps option at 720p resolution is available when paired with specific main units, enabling slower-motion forensic playback without storage overhead.
- Lightfinder Technology: Low-light performance without grainy or washed-out footage. Lightfinder preserves color and detail in dimly lit environments (parking lots, dusk, interior vehicle cabins), reducing the need for supplemental IR illumination and cutting false alerts from IR-sensitive analytics. Typical minimum illumination is not explicitly stated in the evidence, but Lightfinder is Axis's proven low-light enhancement.
- Forensic WDR (Wide Dynamic Range): Handles high-contrast scenes — bright windows alongside dark hallways, or reflective windshields against shadowed road surfaces. WDR ensures detail in both light and dark areas, preventing blown-out highlights or crushed shadows. Essential for accurate forensic analysis where lighting is uncontrolled.
- IP66 Environmental Rating: Dust-tight and can withstand direct rain jets. IP66 is sufficient for most outdoor installations and vehicle-mounted applications. Note: does not support full submersion or high-pressure water jets (those require IP67 or IP6K9K ratings, which the sensor family supports, but the standard 02640-001 variant is IP66). Operational across -40°C to +70°C (-40°F to +158°F) covers extreme cold and heat, from arctic shipping yards to desert border installations.
- SMA-FAKRA Connectors: Modular connection to 2nd-generation Axis F-Series main units and cables. SMA-FAKRA is a vibration-resistant military-grade connector designed for vehicle and mobile deployments where cable flex and vibration are constant stressors. Secure seating prevents intermittent signal loss.
- Low Power Draw (1–1.7W typical): Extremely efficient modular design. Power is delivered through the main unit, typically via PoE or dedicated supply. At under 2W, this sensor won't overload your power infrastructure — relevant when deploying multiple sensors on a single main unit or power-constrained mobile platforms.
- 1/2.8" RGB CMOS Sensor (3.1mm F2.0 Lens): Compact optics and sensor preserve image quality in small form factors. The F2.0 aperture gathers sufficient light in moderate indoor/outdoor lighting without requiring excessive electronic gain. The 108° horizontal field of view is wide enough for corridor or wide-angle vehicle coverage without distortion artifacts typical of extreme fisheye lenses.
Integration & Compatibility
The 02640-001 is exclusively compatible with 2nd-generation Axis F-Series main units and their associated cables. Confirm your main unit model before purchase — first-generation F-Series main units require different sensor models. The modular design allows you to swap sensors on a single main unit platform, enabling rapid field reconfiguration without procuring new cameras.
Integration into video management systems is handled by the main unit (e.g., AXIS F9111), which manages ONVIF compliance, authentication, and codec selection. Verify that your VMS supports the specific main unit model you've selected.
When to Choose a Different Model
If you require higher resolution (4MP, 5MP, or 8MP), explore higher-megapixel modular sensors within the Axis F-Series family. If you need submersion capability (pools, fully enclosed environments with water spray), confirm that your target sensor variant supports IP67 or IP6K9K — the standard 02640-001 is IP66 only. For fixed (non-modular) outdoor surveillance, consider traditional Axis outdoor IP cameras, which may offer cost savings if you don't need swappable sensors.
Frequently Asked Questions
Q: What main units are compatible with the Axis 02640-001?
A: The 02640-001 (model F2105-RE) is compatible with 2nd-generation Axis F-Series main units. Confirm your specific main unit model in the product documentation before purchase. First-generation main units require different sensor models.
Q: Can I use the 02640-001 as a standalone camera, or does it require a separate main unit?
A: The 02640-001 is a modular sensor only. It requires a compatible 2nd-generation Axis F-Series main unit to function. The main unit houses the processing, power, and network connectivity.
Q: What is the maximum frame rate and resolution?
A: The sensor delivers up to 60 fps at Full HD 1080p (1920 × 1080) under standard operation. When paired with compatible main units like the AXIS F9111, it can output up to 180 fps at 720p resolution for high-speed forensic playback.
Q: Is the 02640-001 suitable for vehicle-mounted applications?
A: Yes. The IP66 rating, operating temperature range (-40°C to +70°C), and SMA-FAKRA vibration-resistant connectors make it suitable for buses, emergency vehicles, and other mobile platforms. The low power draw (1–1.7W) also reduces strain on vehicle power systems.
Q: Does the sensor support low-light recording without infrared?
A: The sensor includes Lightfinder technology, which preserves color and detail in low-light conditions. This reduces reliance on IR illumination, though IR performance depends on the main unit's IR capabilities, not the sensor itself.
Q: What power supply does the 02640-001 require?
A: Power is supplied through the compatible 2nd-generation main unit. The sensor itself draws 1–1.7W typical and is powered via the SMA-FAKRA connector. Confirm that your main unit supports PoE or your preferred power input method.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
The Axis 02640-001 is a deliberate engineering choice for deployments where camera modularity and environmental hardening outweigh the need for integrated processing. The 2MP 1080p sensor paired with Lightfinder and Forensic WDR positions this unit squarely in the mobile-surveillance and outdoor-modular space — where the sensor is one swappable component on a shared processing platform. The 02640-001 itself is straightforward: modest resolution, wide aperture, low power, and tough connectors. The real value lies in the main-unit ecosystem you're buying into.
Technical Highlights:
- 60 fps @ 1080p; 180 fps @ 720p (with F9111): High frame rates are overkill for static scenes but essential for vehicle-mounted or rapidly-changing deployments. A bus cabin at highway speed or a police bodycam scenario benefits from this; a parked gate camera does not. Choose accordingly when sizing your main-unit frame-rate capability.
- IP66 with -40°C to +70°C operating range: This spec combination is uncommon in consumer/prosumer gear. It handles Russian winters and Middle Eastern heat simultaneously. The 1–1.7W power draw means you can cluster multiple sensors on a single 12W main-unit power budget — real for compact vehicle or multi-sensor pole installations.
- SMA-FAKRA connectors: Military-grade, vibration-rated, designed to survive repeated connect/disconnect cycles without signal drift. This is not a cost-cutting connector; it's a deliberate choice for field serviceability. Matters hugely in harsh mobile or emergency-response environments.
Deployment Considerations:
- 2MP is the constraint here, not a surprise. At 1080p resolution, facial ID works at roughly 8–12 feet under good lighting; beyond that, you're relying on gait or vehicle color. If you need wider-area facial recognition, upgrade to a higher-MP sensor variant in the same F-Series family.
- The 02640-001 requires a 2nd-generation F-Series main unit. Confirm your main unit supports the output frame rate and codec you need — the sensor doesn't negotiate those independently. First-generation main units are incompatible and will not work with this sensor.
- Lightfinder is effective but not a substitute for IR in pitch-black conditions (0 lux). If your deployment is fully dark overnight, you'll need the main unit's IR emitter or supplemental lighting. Verify your chosen main unit includes IR.
Deploy the Axis 02640-001 in multi-camera mobile platforms (transit fleets, law enforcement vehicles, construction-site monitoring) where swappable sensors, low power draw, and extreme temperature tolerance solve a real problem. Skip it if you need standalone operation, higher resolution, or a fixed outdoor camera without modularity overhead.
