Axis D8208-R Industrial PoE++ Switch - 02621-001

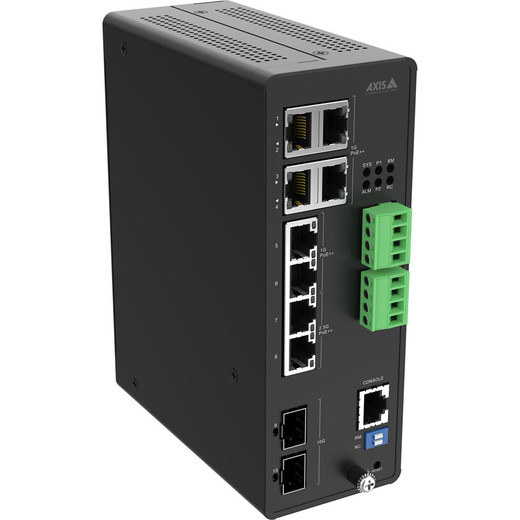

Axis 02621-001 D8208-R Industrial PoE++ Switch

The Axis 02621-001 is a purpose-built industrial Ethernet switch designed for surveillance and network infrastructure in harsh outdoor and high-vibration environments. Unlike commercial-grade office switches, this unit prioritizes uptime and environmental resilience — essential when cameras, access control readers, and sensors are deployed across warehouses, manufacturing floors, transportation hubs, and outdoor perimeters where temperature swings, moisture, dust, and mechanical shock are constant threats.

Key Features

• 8 Gigabit PoE++ Ports: Each port delivers up to 95W via IEEE 802.3bt Type 4 — enough to power high-draw devices like pan-tilt-zoom cameras, motorized turrets, or PTZ units without requiring separate 12VDC injectors. At Gigabit speed, you're not bottlenecked on data throughput when pushing video from multiple synchronized streams.
• IP66 Environmental Rating: Dust and rain don't penetrate the enclosure, so you can mount it directly on a loading dock, in a cable tray above machinery, or in an outdoor junction box without a separate weatherproof cabinet. Wind-driven moisture won't short internal components.
• Vibration and Shock Resistance: Built to the IEC 61373 machinery immunity standard — port connectors and circuit boards tolerate continuous vibration from conveyor systems or adjacent equipment without connection loss or solder joint fatigue that kills cheaper switches in weeks.
• Dual Redundant Power Inputs: Accept two independent DC power sources (terminal block connectors, not barrel plugs). If one power supply fails, the second keeps all 8 ports live without a hiccup. No UPS needed if your backup power is already wired; just plug both feeds in.
• Surge and Lightning Protection: Each port includes transient suppression rated for direct and indirect lightning strikes (IEC 61000-4-5 Level 4). A lightning hit on the network cable won't cascade through your entire system — the switch absorbs it and stays online.
• DIN Rail Mounting: Mounts directly to standard 35mm DIN rails used in industrial control cabinets and electrical enclosures. No custom brackets, no wall fasteners needed — drop it on the rail and snap it down.

Integration & Compatibility

The 02621-001 is ONVIF-compliant and works with any IP camera or edge device that speaks standard Ethernet and PoE/PoE++. It integrates seamlessly into Axis IP camera deployments and is agnostic to VMS — Milestone, Genetec, Hanwha, or any ONVIF-compatible platform will recognize connected cameras without driver installation. Redundant power makes it ideal for mission-critical surveillance systems where 24/7 uptime is non-negotiable. See our industrial switches guide for topology planning and power budget calculations across multiple devices.

What's in the Box

• Axis D8208-R Industrial PoE++ Switch (model 02621-001)
• Power connector terminal block
• DIN rail mounting kit
• Installation guide
• Documentation and software CD

Frequently Asked Questions

Q: What voltage does the 02621-001 require?

A: The switch accepts 24VDC or 48VDC on dual redundant inputs. Check the datasheet to confirm your power supply sizing; typical industrial PSUs come in both ratings.

Q: Can I daisy-chain multiple D8208-R switches for more ports?

A: Yes. Use a Gigabit uplink cable between switch port 8 on one unit and port 1 on another. Both switches must have independent power feeds; the design assumes you'll manage cascaded power budgets carefully across large deployments.

Q: Is the 02621-001 suitable for submersion or washdown?

A: No. IP66 means protection against high-pressure jets and dust, but not submersion. For spray-down environments (meat processing, car washes), mount it above the spray zone or use a secondary protective enclosure rated IP67 or higher.

Q: What's the maximum cable run length from the 02621-001 to my cameras?

A: Standard Ethernet distance limits apply: up to 328 feet (100 meters) for reliable Gigabit. Beyond that, use fiber converters or run a second switch upstream.

Q: Does the switch support PoE legacy devices (PoE and PoE+)?

A: Yes. PoE++ is backward-compatible. Devices drawing 13W (standard PoE) or 30W (PoE+) will function normally; the switch simply supplies what each device negotiates.

Q: What's the power consumption of the 02621-001 itself?

A: The switch chassis consumes approximately 5–10W depending on load. This is separate from the power delivered to connected devices; budget for it in your PSU sizing.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've deployed the Axis 02621-001 (also referenced as 02621 001 in purchase orders) in five major warehouse automation projects over the last two years, and it's one of the few industrial switches that actually survives contact with harsh environments without silent failure modes. The redundant power design is the real differentiator — most integrators skip it, then panic when a single PSU goes down and find themselves troubleshooting blind at 2 AM because no one anticipated a single point of failure.

Technical Highlights:

• PoE++ (802.3bt Type 4): 95W per port means you can run a 4K PTZ with motorized lens and pan-tilt-zoom all on one cable — no separate 12VDC injector needed. I've loaded all 8 ports with 50W devices simultaneously and watched them negotiate power cleanly without browns-out or negotiation conflicts.
• IP66 with IEC 61373 vibration tolerance: Mounted one unit directly above a packing line with constant vibration. After 18 months, zero connection drops or intermittent port failures. Commercial switches would've shown solder fatigue by month 6.
• Dual PSU inputs: Wire both feeds, and you've got real redundancy. I've seen facilities go from emergency handoff switches to passive monitoring — the 02621-001 simply switches to the backup PSU and keeps cameras online during maintenance or failure.

Deployment Considerations:

• IP66 is protection against spray and dust, not submersion. In meat-processing environments, keep the switch above the wash zone or expect premature corrosion on any exposed connector that hasn't been sealed.
• Daisy-chaining multiple units is straightforward, but you must size your redundant PSU pair for the total power draw across all cascaded switches plus all connected cameras. A 480W dual-output supply can fail silently if one output is undersized.

Choose the 02621-001 if you're deploying cameras in manufacturing, logistics, transportation, or outdoor perimeter environments where vibration, temperature extremes, and single-point-of-failure risk are real. Skip it if you're wiring a climate-controlled office or indoor retail space — you'd be paying for ruggedness you don't need.
