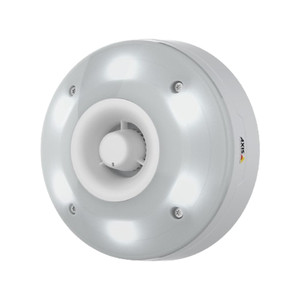

Axis D4100-VE MkII Network Strobe Siren - 03105-001

Axis 03105-001 D4100-VE Mk II Network Strobe Siren

The Axis 03105-001 is a networked, IP-based visual and audible alert system engineered for high-risk environments where immediate, multi-sensory threat response is non-negotiable. It combines a high-intensity strobe light with a powerful siren, synchronized through your security network to deliver coordinated alerting across perimeter, critical infrastructure, and warehouse operations. Unlike standalone sirens requiring hardwired audio feeds and 24VDC power supplies, the 03105-001 integrates natively with Axis IP cameras and modern security platforms via VAPIX, MQTT, and SIP protocols — eliminating vendor lock-in and simplifying integration with third-party analytics, access control, and threat detection systems.

Key Features & Deployment Benefits

• Dual Strobe & Siren Output: High-intensity visual alerting (strobe light) paired with audible siren means threat notifications reach both visual and hearing-impaired personnel simultaneously — critical when seconds matter in evacuation, intrusion, or perimeter breach scenarios. The combination ensures no alert goes unnoticed.
• PoE Power (802.3af): Draws power exclusively through your Ethernet line — no separate 24VDC transformer, no conduit runs for power cables. Reduces installation labor and cabling clutter, especially on outdoor pole mounts or rooftop deployments where running power is expensive. Standard PoE budget (<13W typical) avoids straining your network switch.
• IP66 Weatherproof Rating: Direct rain, dust, and spray won't compromise the unit — suitable for warehouses, outdoor perimeter fences, and loading docks. Skip this if you need full submersion (IP67 or higher); IP66 handles weather but not dunking.
• IK10 Impact Resistance: Withstands deliberate physical attacks and accidental vehicle strikes — critical for high-vandalism sites, remote facilities, and areas with heavy foot or vehicle traffic. Protects your investment from being damaged before the alert even triggers.
• NEMA-4X Enclosure: Stainless steel or equivalent corrosion-resistant construction for coastal, industrial, and chemically harsh environments. Standard NEMA-4 fails in salt spray or chemical fumes; NEMA-4X is purpose-built for those sites.
• Customizable Alert Profiles: Configure distinct strobe patterns and siren tones for different threat levels (perimeter breach vs. unauthorized access vs. all-clear). Reduces operator alert fatigue and speeds decision-making — operators learn to recognize threat severity by sound and light pattern alone.
• VAPIX, MQTT, & SIP Protocol Support: Native integration with Axis cameras running analytics (perimeter detection, license plate recognition) and seamless two-way SIP integration with emergency communication systems. MQTT support opens connectivity to industrial IoT platforms and custom alert orchestration — no proprietary gateway required.
• Event-Driven Triggering: Pair with Axis camera analytics to trigger strobe and siren automatically when perimeter analytics detect intrusion or LPR flags a vehicle — no manual operator intervention needed. Real-time threat response at machine speed.
• Dynamic Alert Scheduling & Prioritization: Suppress alerts during low-risk periods (e.g., business hours in an access-controlled area) or escalate priority during sensitive operations. Reduces nuisance alerts and allows tiered response protocols.

Integration & Compatibility

The 03105-001 (often searched as 03105 001) is designed for seamless operation within Axis security ecosystems and broader IP security architectures. VAPIX protocol support enables direct camera-to-siren event triggering without a separate management platform. MQTT connectivity allows integration with non-Axis systems — security platforms, access control panels, IoT gateways — provided they support MQTT publish/subscribe messaging. SIP support integrates with VoIP-based emergency notification systems for coordinated building-wide alerting.

Deployment scenarios range from outdoor perimeter surveillance (fence lines, parking areas, remote sites) to critical infrastructure (substations, water treatment, transportation hubs) and warehouse operations (dock perimeters, restricted zones). Multi-protocol flexibility means you're not forced into a single VMS platform — evaluate against your existing stack.

When to Choose a Different Model

If your site requires only visual alerting (no sound), or if you need a smaller form factor for indoor ceiling mounting, consider Axis strobe-only variants in the same family. If your installation demands 24VDC hardwired power (legacy infrastructure without PoE switches), evaluate whether upgrading to PoE is cost-effective or if a separate 24VDC siren unit makes sense. The 03105-001 assumes modern IP networking; retrofitting it into purely analog security systems requires additional gateways.

Frequently Asked Questions

Q: Can the 03105-001 trigger automatically when my Axis camera detects an intrusion?

A: Yes. Via VAPIX, analytics running on Axis cameras (perimeter detection, loitering, direction of travel) can trigger the siren and strobe directly without operator intervention. SIP and MQTT also enable this workflow through third-party platforms.

Q: What's the sound output level (dB) of the siren?

A: Specific decibel output is not detailed in the available evidence. Verify against the full datasheet or request from Axis technical support if sound pressure level is a compliance requirement for your site (e.g., OSHA workplace alerting standards).

Q: Does the 03105-001 work with non-Axis platforms like Milestone XProtect or Genetec?

A: MQTT and SIP support enable integration with third-party platforms, but direct plugin support depends on whether your VMS natively supports MQTT or SIP. Consult your VMS vendor's integration documentation or request a proof-of-concept before committing.

Q: Is the 03105-001 suitable for coastal environments with salt spray?

A: The NEMA-4X rating is designed for corrosive atmospheres, making it appropriate for salt spray and chemical exposure. Standard NEMA-4 units will corrode prematurely in these conditions.

Q: What PoE switch do I need to power this?

A: Any standard PoE switch supporting IEEE 802.3af is sufficient — the 03105-001 draws under 13W. No PoE+ or PoE++ required. Verify your switch has available PoE budget if powering multiple devices on the same line.

Q: Can I customize the strobe color or siren tone after installation?

A: The device supports multiple alert profiles with customizable sound and light patterns, configured via VAPIX or management interface. Hardware color (strobe wavelength) is fixed; you're configuring trigger behavior and pattern sequences, not the physical light color.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 03105-001 D4100-VE Mk II breaks the mold on networked alerting. Most sites still deploy standalone sirens — they're cheap upfront but demand hardwired power, lack automation, and won't integrate with your camera analytics. The 03105-001 flips that. It's an IP-native, event-driven alert device that responds to real threats detected by your cameras, not operator button-pushing. VAPIX, MQTT, and SIP support eliminate vendor lock-in, and PoE power is a genuine operational win on outdoor deployments where running 24VDC conduit is expensive and labor-intensive.

Technical Highlights:

• PoE Power (802.3af) — under 13W: One Ethernet cable replaces both power and signal lines. Installation labor drops sharply, especially on pole mounts or rooftop installations where separate power runs cost real money. Standard PoE budgets on modern switches handle this without strain.
• IP66 + IK10 + NEMA-4X: Three independent durability ratings work together. IP66 handles rain and dust without fail. IK10 means deliberate strikes or vehicle contact won't crack the housing. NEMA-4X (stainless or equivalent) survives salt spray and chemical fumes — standard NEMA-4 corrodes within months on coastal or industrial sites.
• Multi-Protocol Integration (VAPIX, MQTT, SIP): VAPIX ties directly to Axis cameras running analytics — perimeter detection, license plate recognition, direction-of-travel triggers the siren without middleware. MQTT opens the door to third-party IoT platforms and custom alert orchestration. SIP bridges to emergency communication systems. You're not locked into a proprietary ecosystem.
• Customizable Alert Profiles: Different strobe patterns and siren tones for different threat levels. Operators learn threat severity by pattern, not by reading an interface — faster decision-making, lower alert fatigue.

Deployment Considerations:

• Verify your network switch has available PoE budget. The 03105-001 is lightweight (~13W), but if you're powering dozens of cameras and access points, PoE capacity is real. Budget 15–20W per device to account for cable loss.
• MQTT and SIP integration require your VMS or third-party platform to natively support these protocols. If you're on a closed, proprietary platform, verify integration paths before purchasing. VAPIX is the native Axis pathway; the others are conditional.
• Sound pressure level (dB) is not published in the standard spec sheet. If your site has OSHA or local workplace noise compliance requirements, request decibel output from Axis before final sign-off.
• The strobe wavelength and color are fixed at the factory. Alert profile customization covers pattern and timing, not physical color. If you need multi-color alerts for different threat levels, evaluate single-color profiles or cascaded sirens.

Position the 03105-001 for perimeter and critical infrastructure sites where real-time threat detection matters — substations, water treatment, transportation hubs, warehouses with restricted zones, and remote facilities. Pair it with Axis perimeter analytics or license plate recognition for fully autonomous alerting. Skip it if your site is purely legacy 24VDC analog infrastructure or if you need submersion-rated (IP67/IP68) equipment — IP66 handles weather, not water.

Key Specifications:
Color: White
