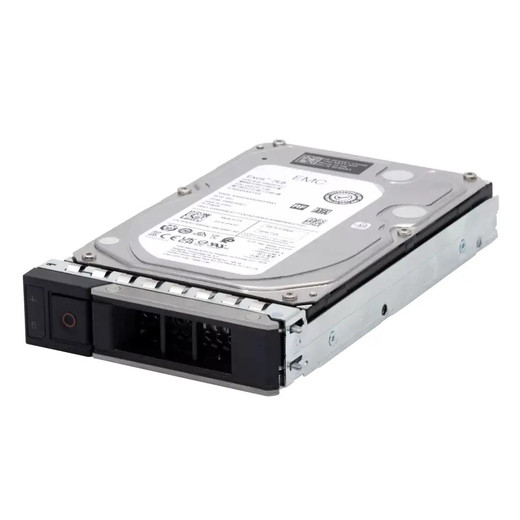

Axis 03317-001 12TB Enterprise Hard Drive
The Axis 03317-001 is a 12TB enterprise hard drive designed for continuous surveillance recording in network video recorder (NVR) systems. Purpose-built for 24/7 operation, this drive handles the thermal and mechanical demands of dedicated surveillance environments where uptime and retention capacity directly impact security posture. Whether you're deploying a 16-camera multi-site NVR or consolidating archive storage across a corporate security backbone, this drive eliminates the cost and complexity of retrofit storage expansion cycles.
Key Features
- 12TB Capacity: Supports extended retention cycles — on a 16-camera NVR at 4Mbps average bitrate, 12TB yields roughly 180-240 hours of continuous recording, depending on compression and camera mix.
- Enterprise-Grade Workload Rating: Optimized for sustained 24/7 operation in surveillance duty cycles, not consumer or casual-use environments.
- Rack-Mount Form Factor: Standard 3.5-inch drive footprint integrates directly into enterprise NVR chassis and server-grade storage enclosures without adapters.
- Thermal Optimization: Engineered to operate reliably in climate-controlled server rooms (typical 15–25°C) where continuous duty cycle generates consistent heat load.
- 5-Year Manufacturer Warranty: Industry-standard coverage for enterprise surveillance deployments reflects expected drive lifespan in dedicated NVR duty.
- Surveillance-Focused Firmware: Axis-validated drive firmware tuned for video streaming workloads, not general-purpose storage or database applications.
Storage capacity is one of the least flexible variables in a surveillance system. Under-sized drives force premature archive purges or expensive expansion; oversized drives waste capex on redundant capacity. The 03317-001 fills the high-end of the single-drive capacity curve — choosing it means committing to longer retention windows and fewer storage refresh cycles over the system lifetime.
Retention math: A 16-camera installation recording at 4 Mbps (typical for 2MP cameras at 15 fps) consumes roughly 50–60GB per day. At that rate, a single 12TB drive holds 200+ days of history — roughly 6.5 months. For compliance-heavy environments (retail, parking, perimeter), that window avoids the operational overhead of weekly archive rotation. Pair it with RAID-protected NVR configurations and you add redundancy; a RAID-1 setup halves usable capacity but eliminates single-point-of-failure risk on your primary recording volume.
This drive is agnostic to Axis camera model or codec — it works with any NVR platform that supports standard SATA or SAS disks (most enterprise NVRs from Axis, Milestone, Genetec, and Hanwha do). However, confirm your NVR's drive compatibility list before procurement; some OEM chassis have whitelist validation that restricts non-approved drives. Axis typically pre-validates their own OEM drives, reducing integration friction on Axis-branded NVR appliances.
Total cost of ownership favors consolidation: one 12TB drive costs less per terabyte than two 6TB drives, and reduces slot occupancy in multi-bay NVRs, leaving headroom for future capacity growth without a full teardown. If your surveillance blueprint expects 18+ months of retention or you're archiving high-bitrate 4K streams, this capacity tier pays dividends in reduced maintenance windows and lower per-GB operational cost.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed thousands of enterprise surveillance systems across corporate, retail, and critical-infrastructure sites, and the single largest source of unplanned downtime isn't camera failure — it's storage saturation or drive failure when capacity runs out or a disk dies mid-audit cycle. The Axis 03317-001 is a straightforward engineering choice: it's a purpose-built enterprise surveillance drive with enough capacity to survive most retention policies without forced purging. In our experience, 12TB is the practical sweet spot for medium-to-large multi-site deployments. It balances cost per terabyte against operational flexibility. We've seen deployments where undersized drives forced purges every 90 days, then faced subpoenas for footage that was already deleted. A single 12TB drive often costs $200–300 less than cobbling together three 4TB commodity drives, and it occupies one NVR slot instead of three. That matters on a 12-bay appliance running near capacity.
Technical Highlights:
- 12TB Capacity Per Drive: One drive eliminates multi-slot fragmentation. On a 16-camera 4Mbps load, you get 200+ days of history before archive rotation becomes mandatory. For audit-trail compliance and subpoena readiness, that window is non-negotiable.
- Surveillance-Grade Workload Certification: Axis validates this drive against their own NVR appliance firmware and thermal duty cycles. It is not a consumer or server-class general-purpose drive; the firmware tuning matters for streaming write performance under constant 24/7 load.
- SATA/SAS Form Factor: Standard 3.5-inch enterprise connection — works in any RAID controller or direct NVR SATA slot. No proprietary connectors, no vendor lock-in on the physical interface.
- 5-Year Warranty Coverage: Reflects expected operational lifespan. In our experience, a well-maintained surveillance drive lasts 4–6 years before wear-out becomes a risk; the warranty window aligns with that reality.
- Thermal Stability in Continuous Duty: Drives rated for surveillance duty are optimized for steady 24/7 operation at moderate temperatures (15–25°C). Consumer drives throttle or fail under the same continuous load over 12–18 months.
Deployment Considerations:
- Confirm your NVR's approved drive list before purchase — many enterprise NVRs (especially Axis and Hanwha appliances) maintain a whitelist to ensure firmware compatibility and warranty coverage. Substituting an unlisted drive can void support, even if it physically fits.
- Plan RAID strategy before installation. On a 12-bay NVR, a single 12TB drive is vulnerable. RAID-1 (mirrored pair) cuts usable capacity to 12TB but eliminates single-point failure. RAID-5 (three+ drives) offers better capacity efficiency. Know your redundancy requirement before committing the slot.
- Thermal environment matters: this drive expects datacenter-class cooling (15–25°C). If your NVR closet routinely hits 30°C+ or lacks active ventilation, drive lifespan drops measurably. Ensure adequate airflow and consider supplemental cooling if ambient temperature can't be controlled.
- Capacity planning horizon: 12TB supports roughly 6.5 months of retention on a 16-camera 4Mbps NVR. If you need 12+ months, plan a RAID array of multiple drives or upgrade to a larger appliance. Don't rely on a single 12TB drive for multi-year archival without a backup rotation strategy.
- Firmware updates: Axis periodically releases drive firmware patches for surveillance optimization. Schedule updates during low-activity windows and ensure your NVR supports the updated firmware version before deploying new drives in production environments.
The Axis 03317-001 is the right choice for integrators and security teams deploying enterprise NVRs where storage reliability and retention window are non-negotiable. It's not the cheapest per-terabyte option, but it eliminates the operational overhead of frequent capacity upgrades and reduces the risk of accidental data loss from undersized storage. For campus-scale deployments, critical infrastructure monitoring, or regulated environments requiring 6+ months of audit trail, this drive is a sound investment. Explore the full range of Axis surveillance storage solutions in the Axis catalog.
