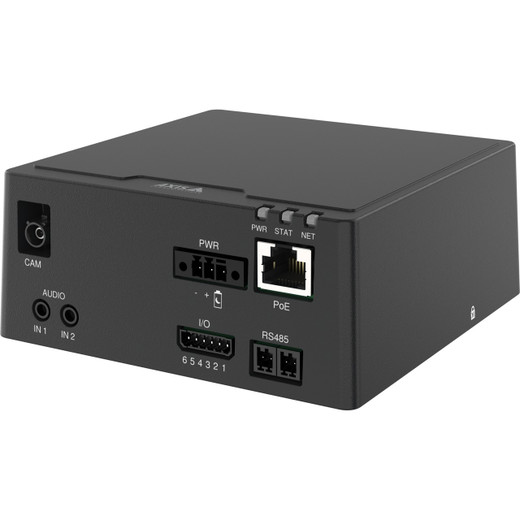

Axis 02998-021 F9111-R Mk II 5MP Modular Sensor Main Unit
The Axis 02998-021 is the processing core of the F9111-R Mk II modular surveillance platform, designed for deployments where sensor modularity and edge-based recording eliminate the overhead of traditional fixed-form cameras and centralized NVRs. This single-channel processing unit accepts interchangeable Axis sensor modules (fixed, varifocal, thermal, or other optical variants) and handles video compression, local storage, and ONVIF streaming in a compact industrial form factor. Operators select the optical module to match their specific coverage need—parking lot surveillance, perimeter scanning, or thermal monitoring—without buying surplus resolution or optics they don't use.
Key Features
- Modular Single-Channel Design: Accepts compatible Axis F9111-R Mk II sensor modules. Decouples optics selection from processing platform, reducing equipment waste and enabling mid-deployment sensor swaps without main-unit replacement.
- 5MP Video with Dual Compression: H.265 and H.264 codec support. H.265 cuts bitrate and storage footprint roughly 40–50% versus H.264 on identical quality; fallback to H.264 ensures broad VMS compatibility on legacy systems.
- PoE Class 5 (802.3af) Powered: Single Ethernet cable delivers data and power—no auxiliary PSU. Draws <12W typical, compatible with any 802.3af-capable switch without oversubscription.
- Wide Dynamic Range (WDR): Handles backlit and high-contrast scenes (sunlit doorways, vehicle headlights, reflective surfaces). Preserves detail in both highlights and shadows for forensic-quality footage.
- MicroSD Card Local Storage: Edge-based recording independent of network availability. Continuous 24/7 archival without cloud reliance; card capacity limited by physical card maximum (typically 512GB or 1TB industrial-grade microSD units).
- Wide Operating Temperature: −40°C to +60°C rated. Suitable for unheated outdoor enclosures, rooftop equipment cabinets, and extreme climate zones without additional thermal management.
- ONVIF Profile S & T Compliance: Streams video to all major VMS platforms—Genetec, Milestone, Avigilon, ExacqVision, Axis Camera Station. Profile T adds H.265 and advanced motion metadata over Profile S.
- Cybersecurity Hardening: Signed firmware, secure boot, and HTTPS encryption. Prevents unauthorized code injection and eavesdropping on video streams in hostile network environments.
- Day/Night Capability: Integrated IR cut filter and day/night switching. Paired with compatible thermal or low-light sensor modules for 24-hour surveillance without supplementary lighting infrastructure.
The 02998-021's modular architecture addresses a real pain point in surveillance deployments: the mismatch between fixed-camera capability and actual site requirements. A parking lot doesn't need the same focal length and resolution as a building entrance, yet traditional integrated cameras force you to buy both together. By separating the processing unit from optics, this platform lets you optimize per location and swap modules as coverage priorities shift—valuable over a five-year ownership cycle.
Video processing occurs locally on the unit, so analytics and motion detection don't consume upstream bandwidth or depend on a central NVR to be online. MicroSD storage means that if your network goes down, the camera continues recording; when connectivity returns, the recorder can backfill missed frames. This edge-first design is increasingly critical in distributed deployments where cabling runs are long or network redundancy is expensive to add.
H.265 compression is the efficiency anchor here. A 5MP feed at 24/7 recording on H.264 consumes roughly 2–3 Mbps; H.265 cuts that to 1–1.5 Mbps on the same visual quality. Across eight or ten modular units, that's enough to keep a single 10 Mbps WAN circuit from saturation and extends microSD card lifespan dramatically. Storage retention on a 512GB card shifts from 40 days to nearly 80 days on H.265 — meaningful for sites where monthly audits and incident reconstruction are the norm.
Integration is straightforward for any organization running ONVIF-compatible VMS. The 02998-021 announces itself as a standard IP camera; your NVR auto-discovers it, streams are configured in minutes, and you can apply uniform recording policies (motion-triggered, codec selection, retention) across modular and traditional cameras on the same platform. Secure boot and signed firmware mean IT teams can confidently deploy in regulated environments (banking, healthcare, critical infrastructure) without custom hardening.
The 5-year warranty and industrial operating temperature range position this unit for long-term outdoor and semi-outdoor duty. Many integrators use it in mobile or semi-permanent deployments—temporary perimeter monitoring, event security, or facility expansions—where permanent cabling and dedicated recorder infrastructure aren't justified, yet you need proper, auditable video capture.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Axis F9111-R Mk II platform across parking lots, warehouse perimeters, and temporary event venues—situations where you need real surveillance capability but don't have the budget or the time to run conduit, install an NVR closet, or wire discrete PTZs. The 02998-021 main unit is the linchpin: it's lean, edge-native, and doesn't force you into a all-or-nothing camera purchase. What sets it apart from traditional integrated domes is the optical flexibility. We've spec'd the same processing unit with a 2.8mm wide-angle module for parking-lot entries, a 6mm telephoto for gate scanning, and even swapped in a thermal module mid-deployment when a client's risk profile shifted. No rewiring, no new NVR licenses—just pop out the module, insert the new one, and repoint the VMS stream. That modularity saves time and money on maintenance cycles.
The real operational win is local recording + edge analytics. PoE Class 5 is tight—you're not running heaters or boost IR from the main unit—but the power budget is precise, and that makes it stackable on standard enterprise PoE switches. On a dozen units, you're still under 150W total draw, trivial compared to an NVR + dedicated storage array. MicroSD storage means every unit is an independent recorder; if your central NVR hiccups or a WAN link drops, that camera doesn't become a blind spot. We've seen clients go months with degraded network connectivity to remote sites; the modular approach kept evidence capture continuous.
Technical Highlights:
- H.265 Compression (Main Unit Capable): The 02998-021 can encode H.265 natively, cutting bitrate 40–50% versus H.264. On a 512GB microSD card running 24/7 5MP video, H.265 extends retention from ~40 days to ~75–80 days—major for compliance and incident reconstruction windows. Not all ONVIF platforms support H.265 playback, so confirm your VMS roadmap before committing; modern Genetec, Milestone, and Axis systems handle it fine.
- PoE Class 5 (802.3af) Power Envelope: Single-digit watt draw is deliberate. You can chain 16+ units on a single 48-port PoE switch without overload calculations. For comparison, traditional domes with IR and heaters pull 40–60W; this unit keeps total power consumption low enough for unpowered copper runs (100m+ without active repeaters) in some site layouts.
- WDR (Wide Dynamic Range): Handles sunlit parking-lot entrances and vehicle headlights without blooming or dark shadowing. Not forensic-grade WDR like some flagship domes, but adequate for motion detection, license-plate capture, and person/vehicle classification on edge analytics. Test on-site in your highest-contrast scenario before final sign-off.
- MicroSD as Primary Recording Medium: Reliable for edge buffering and offline archival, but microSD cards are consumables—expect 3–5 year lifespan in 24/7 duty. Budget card replacement into maintenance cycles. Industrial-grade cards (MLC, extended temp rating) outperform consumer microSD by 2–3x on write endurance; specify those in vendor agreements.
- Modular Sensor Compatibility: The 02998-021 is married to the F9111-R Mk II platform. Module selection is limited to Axis optics (no third-party alternatives); verify your desired lens/sensor combo exists before committing to the form factor. Axis regularly adds modules, but you can't substitute generic 5MP sensors.
- Secure Boot + Signed Firmware: Out-of-the-box tamper resilience. Critical for healthcare, banking, and regulated industrial sites. HTTPS encryption protects stream confidentiality on open networks; combine with managed switch VLANs for full isolation on shared infrastructure.
Deployment Considerations:
- Sensor module availability is the gating factor. Before specifying this main unit, confirm that the exact optical module you need (focal length, day/night vs. thermal, etc.) is in stock or on a predictable lead time. Axis publishes compatible module lists; cross-check against your coverage map.
- MicroSD card capacity is your recording window. A 512GB card gives ~75 days of 24/7 5MP H.265 at typical bitrate; calculate your required retention (30 days? 90 days?) and size the card accordingly. Budget replacements and keep spares on-site for field swaps.
- PoE Class 5 power is tight. Don't stack this unit next to other Class 5 devices on a switch with insufficient budget headroom. Use a dedicated PoE budget calculator or test with your exact switch model before committing multiple units to production.
- ONVIF Profile T support is not universal on older VMS. If you're running Genetec or Milestone circa 2016–2017, Profile S (H.264 only) is safer; confirm H.265 playback capability before encoding at that codec on older systems. Fallback to H.264 is trivial to configure but defeats storage efficiency.
- Thermal modules (if selected) require different cabling and enclosure considerations—they're not interchangeable with visible-light modules on the fly. Plan your module strategy at the RFQ stage, not after site survey.
The 02998-021 is the right choice for integrators and end-users building modular, distributed surveillance grids—especially where fixed-form cameras are oversized, NVR footprint is constrained, or optical flexibility matters over a multi-year lifecycle. It's not a universal replacement for traditional domes or compact cameras, but in the scenarios it targets, it delivers real operational and cost advantages. Explore the full range of compatible sensor modules and see how the Axis catalog can round out your modular surveillance strategy.
