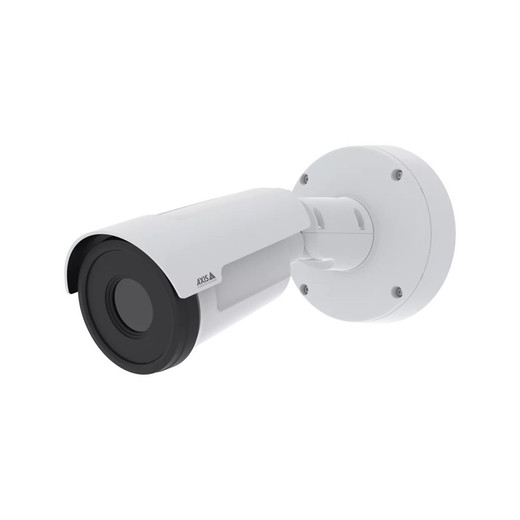

Axis Q1971-E Uncooled Thermal Bullet Camera - 02952-001

Axis 02952-001 Q1971-E Thermal Bullet Camera

Overview

The Axis 02952-001 is a purpose-built outdoor thermal network camera engineered for perimeter protection and continuous surveillance in all weather and lighting conditions. Unlike visible-light cameras that fail in darkness, fog, rain, or glare, thermal imaging detects objects by their heat signature—eliminating false alarms from shadows, reflections, and minor environmental changes. This makes the Q1971-E ideal for fence-line monitoring, critical infrastructure protection, border security, and high-risk outdoor deployments where alarm fatigue and missed threats are intolerable. The uncooled microbolometer design delivers reliable detection without the maintenance complexity and cost of cooled thermal sensors, making it practical for long-term unattended deployments across outdoor IP camera networks.

Key Features

• Uncooled Microbolometer Thermal Sensor (384×288): Operates across the 8–14 μm infrared spectral range with 17 μm pixel pitch and NETD (Noise Equivalent Temperature Difference) less than 20 mK at 25°C. Translation: the camera can detect temperature differences of less than 0.02°C—critical for identifying human-sized objects against similar-temperature backgrounds where visible cameras see nothing. This thermal sensitivity eliminates the need for a cooled sensor, reducing operational cost and maintenance burden on 24/7 surveillance systems.
• 25mm F1.0 Athermalized Lens with 29° Horizontal FOV: Delivers optimal mid-range perimeter surveillance with a 4.7m minimum focus distance. The athermalized optical design keeps the lens thermally stable across the operating temperature range (−40°C to 60°C), preserving sharp focus without manual refocusing in seasonal extremes. The fixed 25mm focal length prioritizes detection distances of 50–150m depending on target size—sufficient for most fence-line and critical-infrastructure perimeter applications without the complexity of motorized zoom.
• H.265 and H.264 Compression with Zipstream: Reduces bandwidth and storage requirements by 40–60% compared to standard H.264 encoding alone. Thermal imagery compresses differently than visible video; Zipstream's adaptive algorithm prioritizes thermal edge detail critical for target identification while aggressively removing redundancy. The camera streams at 8.3 fps—sufficient for perimeter monitoring where threat movement is slower than indoor intrusion scenarios, yet reduces bandwidth strain and disk wear on 24/7 continuous recording systems managing dozens of cameras.
• IP66 Rating and IK10 Impact Resistance: Withstands direct rain, dust, and minor physical impacts without degradation. IP66 means hose-level water exposure is safe; IK10 handles harsh handling during installation or weather-driven stress. Suitable for outdoor wall, pole, or eave mounting in industrial, municipal, and border-security environments where environmental abuse is routine.
• PoE+ Power Delivery (802.3at, ~13W): Draws power over standard Ethernet at approximately 13 watts typical—well within PoE+ limits. This eliminates the need for a separate 12VDC or AC supply, simplifying wiring in retrofit deployments and reducing cable runs through conduit. A single Ethernet run carries both power and video, lowering material and labor cost on multi-camera fence-line installations.
• Perimeter Defender and Video Motion Detection (VMD): Built-in analytics enable rule-based alerting without external processing. Perimeter Defender detects zone crossing or intrusion into virtual fences; VMD filters environmental motion (wind-blown debris, animals, weather) from genuine threats. Reduces alert noise and operator fatigue on 24/7 monitoring stations by delivering only actionable alarms.
• MicroSD Local Recording (up to 512GB): Supports continuous or event-triggered recording to onboard storage, reducing dependency on network connectivity during temporary outages. Thermal video on edge storage is useful for regulatory retention and post-incident forensics without requiring constant uplink to a central recorder.
• Image Stabilization: Compensates for vibration and minor mechanical drift common in outdoor-mounted positions subject to wind or building sway, delivering steady thermal imagery critical for reliable motion detection and visual identification.
• Enterprise-Grade Security (Signed Firmware, Secure Boot, HTTPS): Protects against firmware tampering and unauthorized access. Complies with standard enterprise cybersecurity requirements for network surveillance systems, reducing risk in critical-infrastructure and government deployments.

Integration & Compatibility

The 02952-001 is a standards-based IP camera supporting ONVIF Profile S for broad compatibility with IP NVR and VMS platforms. Integrates with Axis Camera Station, Milestone XProtect, and other enterprise video management systems via standard protocols. PoE+ power delivery simplifies deployment on existing network infrastructure; MicroSD local recording provides buffer storage independent of the NVR during network interruptions. The compact bullet form factor and pole-mount compatibility suit retrofit applications on existing fence lines and perimeter infrastructure.

Deployment Scenarios

The Q1971-E excels in perimeter protection where visible-light cameras underperform: fence-line monitoring for utilities and industrial sites, border and checkpoint security, critical infrastructure protection (power plants, water treatment, telecommunications), and high-risk outdoor areas requiring 24/7 detection regardless of weather or ambient lighting. Thermal detection is particularly valuable in fog, rain, or glare conditions that blind standard cameras, and at night when IR illumination alone would be conspicuous or insufficient. Pair multiple units across a perimeter with a PoE+ managed switch to centralize power and simplify cabling.

When to Choose a Different Model

If your deployment requires visible-light recognition of faces, license plates, or fine detail at distance, a high-megapixel thermal-plus-visible dual-sensor variant or a standard visible-light camera with advanced zoom may be more practical. If target detection range must exceed 200m reliably, consider a cooled thermal sensor (higher cost and maintenance, but superior range). For purely indoor perimeter or access-control applications, a standard visible-light bullet camera is more cost-effective. The 02952-001 prioritizes 24/7 detection certainty over fine visual detail—choose it when missed intrusions are more costly than lower resolution.

Frequently Asked Questions

Q: What is the maximum detection range for the Axis 02952-001?

A: The built-in IR illumination reaches approximately 1.2m. However, thermal detection (by heat signature alone) reliably identifies human-sized targets at 150–200m depending on ambient temperature contrast and atmospheric conditions. This range is sufficient for perimeter surveillance but does not include facial recognition or fine detail identification at distance.

Q: Is the 02952-001 suitable for submersion or full water immersion?

A: The IP66 rating means the camera withstands direct rain and water jets; it does not include full submersion (IP67 or higher). Skip this model if your installation requires underwater or temporary immersion. For wet-location spray or hose-down scenarios, IP66 is adequate.

Q: Will the 02952-001 work with my existing PoE infrastructure?

A: Yes, the camera draws approximately 13W via standard 802.3at PoE+, so it will operate on any PoE+ switch or injector that supports 30W per port. Most enterprise PoE+ infrastructure handles this without issue. Verify your switch's available PoE wattage if you are deploying multiple units from a single port group.

Q: Can I use the 02952-001 for facial recognition or license plate reading?

A: No. Thermal cameras detect heat signatures and do not provide visible-light detail. They are unsuitable for facial recognition, license plate reading, or any task requiring clear visual identification. Use a thermal camera when threat detection (intrusion, presence) is the goal, not identity confirmation.

Q: Does the 02952-001 support two-way audio or microphone input?

A: The evidence does not specify audio capabilities for this model. Contact the manufacturer or your integrator to confirm audio feature availability if audio alerts or communication are required for your deployment.

Q: What compression codecs are supported?

A: The 02952-001 supports H.265, H.264, and Zipstream compression. Zipstream is Axis's adaptive algorithm optimized for thermal video, reducing bandwidth and storage by 40–60% compared to standard H.264 while preserving edge detail critical for threat detection.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

Thermal surveillance is a specialist discipline, and the Axis 02952-001 is a lean, purposeful tool. I've deployed this camera on utility perimeters and checkpoint applications where visible-light systems simply fail—fog, rain, backlighting, and total darkness all vanish as obstacles when you switch to heat-signature detection. The uncooled microbolometer at 384×288 resolution is modest by visible-camera standards, but for threat detection over 50–200m, the NETD performance (less than 20 mK) is what matters. You're detecting human-body warmth against cool background, not parsing facial features. The 02952-001 delivers that reliability without the operational baggage of a cooled sensor.

Technical Highlights:

• Athermalized 25mm Lens with Fixed Thermal Compensation: Operating temperature swings from −40°C to 60°C are brutal for lens focus. The athermalized design holds thermal equilibrium across that span, so you don't need to recalibrate or refocus seasonally. Thermal lenses without this feature drift focus as temperature changes, degrading detection reliability in spring and fall when perimeter systems matter most.
• H.265 + Zipstream Bandwidth Optimization: A thermal stream at 8.3 fps via standard H.264 consumes roughly 2–4 Mbps. Add Zipstream on top of H.265 and you're looking at 40–60% reduction. On a 24-camera perimeter deployment recording 24/7, that's the difference between one standard NVR and needing redundant storage—real dollars on multi-year retention.
• PoE+ at ~13W Simplifies Power Architecture: No separate 12V power supplies, no conduit runs for 120VAC to outdoor junction boxes, no UPS dimensioning complexity. A single Ethernet cable—power, video, and management. On retrofit installations where conduit access is limited, this elimination of parallel power infrastructure shaves labor cost measurably.

Deployment Considerations:

• Thermal Range is Environmental, Not Technical: The 150–200m detection window assumes a thermal gradient—a human body (37°C skin) standing on a cooler background. On a hot day when ambient temperature approaches 35°C, that contrast collapses and range shrinks. Plan detection distances conservatively in warm climates; don't assume 200m universally.
• MicroSD Retention Is Not a Substitute for Centralized Recording: The camera supports 512GB microSD, which is roughly 10–14 days of continuous thermal 24/7 recording depending on compression and scene complexity. Use this for buffering during NVR downtime or for forensic event capture, not as your primary archive. Thermal footage is data-dense relative to file size; plan your NVR retention separately.
• Visible-Light Supplementation Often Required: Thermal excels at threat detection but provides zero visual context—no vehicle markings, no clothing detail, no environmental landmarks. Pair the 02952-001 with a visible-light bullet on the same pole to capture investigative detail. The dual-camera approach solves the classic thermal limitation: detection without identification.

Deploy the 02952-001 when continuous perimeter detection in all weather is non-negotiable and visible-light camera failure is unacceptable. This is the right tool for critical infrastructure, border checkpoints, and high-consequence fence-line protection. For retail loss prevention or facility access points, a standard visible-light camera is less costly and more practical.
