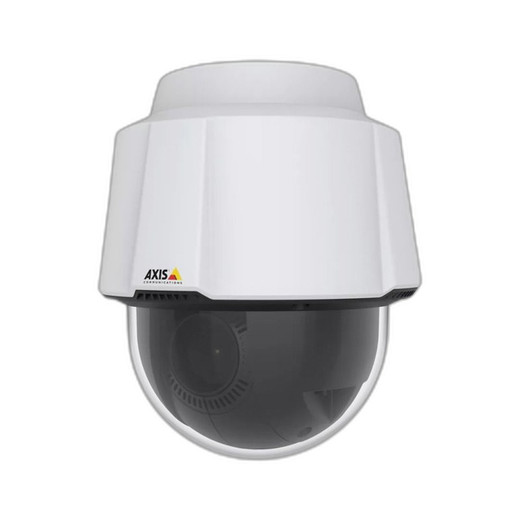

Axis P5654-E Mk II 1080p Outdoor PTZ Camera - 02914-001

Axis 02914-001 P5654-E Mk II 1080p PTZ Camera

The Axis 02914-001 is a professional outdoor PTZ camera engineered for wide-area surveillance and subject tracking at airports, ports, industrial facilities, and municipal networks. The 21x optical zoom varifocal lens (4.0–84.6mm, 77° to 3.6° field of view) eliminates the need for multiple fixed-lens cameras across large coverage zones—a direct reduction in equipment count, installation labor, and long-term maintenance overhead. Full HD 1920×1080 resolution at 50 fps across all zoom levels means no frame-rate collapse during telephoto tracking, keeping motion blur minimal and motion detection triggers reliable.

IP66/NEMA 4X environmental sealing handles direct rainfall, dust, and high-pressure washdown without degradation—critical for exposed rooftop and perimeter mounting. PoE+ (802.3at) power delivery supplies both video and motor control via a single Ethernet cable, eliminating separate 24VDC or 12VDC supply runs and the associated installation complexity.

Key Features

• 1920×1080 Full HD, 50 fps across all zoom ranges: Frame rate does not drop when zooming to telephoto fields—essential for tracking vehicles or personnel across large areas without introducing motion blur that breaks motion-detection rules or complicates forensic review.
• 21x Optical Zoom (4.0–84.6mm varifocal): Transitions from 77° wide angle down to 3.6° narrow field in a single lens—no digital cropping or interpolation. One camera can cover multiple coverage zones that would otherwise require three or four fixed-lens units, cutting wiring, switch port utilization, and storage allocation proportionally.
• 360° Endless Pan at 350°/s with 0.1° step precision: Rapid event response combined with fine-grained aiming for license-plate and facial-detail composition. 256 preset positions allow operators or VMS automation to jump between critical zones in seconds.
• Forensic Wide Dynamic Range up to 120 dB: Renders detail in both bright sunlit zones and deep shadows within a single frame—eliminates the need to record separate shadow and highlight clips. Measurable benefit: fewer stored recordings to manage during post-incident review, lower archival storage demand.
• Day/Night with automatic IR-cut filter and image stabilization: Monochrome low-light operation activates automatically. On-board stabilization dampens motion artifacts during pan and tilt operations, preserving image clarity when tracking fast-moving subjects.
• H.265 and H.264 codec support: H.265 delivers roughly 40–50% smaller file sizes than H.264 for equivalent visual quality—meaningful savings on 24/7 multi-camera NVR deployments where storage and network bandwidth accumulate rapidly across dozens of units.
• PoE+ (802.3at) Class 4, maximum 95W draw: Peak power consumption occurs during simultaneous pan, tilt, and zoom operation. Verify your PoE+ switch can sustain Class 4 loads across all connected PTZ cameras; a single undersized switch can collapse the entire deployment.
• IP66/NEMA 4X sealed enclosure: Protects against dust ingress and water jets at all angles. However, not rated for full submersion—if mounting near fountains or in spray-wash zones, confirm water patterns stay below the IP66 exposure threshold.
• microSD local storage (edge recording): On-camera backup recording continues during temporary NVR outages, decoupling camera operation from network dependency. Useful for sites where network redundancy is limited.
• Signed firmware, secure boot, and HTTPS encryption: Prevents unauthorized firmware modification and man-in-the-middle network interception—table-stakes for facilities under regulatory compliance mandates (NERC, CISA, HIPAA environments).
• ONVIF Profile S/T/G compliance: Integrates with Axis IP cameras and third-party VMS platforms (Milestone, Genetec, Hanwha, Vivotek) without lock-in constraints. Enables multi-vendor deployments and future VMS migration.

Integration and Deployment Context

The P5654-E Mk II belongs in the PTZ camera category for sites where single fixed-position mounting cannot cover required sight lines—airport aprons, container terminals, sprawling parking structures, or municipal traffic corridors. The 21x zoom and 50 fps performance suit both proactive surveillance (operator-controlled tracking) and reactive playback (forensic timeline review).

PoE+ power simplifies deployment on existing Ethernet infrastructure but requires a managed PoE+ switch capable of sustained Class 4 power delivery. For large multi-PTZ sites, dedicated switch infrastructure (not shared with other PoE devices) reduces risk of power-budget exhaustion.

Storage requirements depend on codec and scene motion. At 1080p/50fps using H.265, expect approximately 200–250 Mbps peak bitrate on high-motion scenes (crowds, traffic). A seven-day rolling buffer for a single 02914-001 unit typically demands 150–200 GB of NVR capacity. Multiply by camera count and retention policy when sizing an NVR or storage array.

When to Choose a Different Model

If 21x zoom and 1080p resolution suffice and power budget is constrained, consider lower-power fixed-lens alternatives in the same Axis family. If your site requires higher pixel density (4K resolution) or tighter low-light performance, evaluate higher-megapixel or higher-sensitivity PTZ variants. If full IP67 submersion-rated housing is mandatory, consult Axis's enclosed-dome PTZ models.

Frequently Asked Questions

Q: Does the Axis 02914-001 meet NDAA Section 889 restrictions?

A: No NDAA compliance data is supplied in the evidence. Confirm with the manufacturer or your procurement team if your contract mandates Section 889 certification.

Q: What frame rate does the 02914-001 deliver at 1080p resolution during zoom operations?

A: Full 50 fps at all zoom levels—from wide 77° field of view to narrow 3.6° telephoto. Frame rate does not drop during zoom transitions or extended zoom hold.

Q: Can the Axis 02914-001 be powered from standard PoE (802.3af)?

A: No. The unit draws up to 95W during peak motor operation (simultaneous pan, tilt, zoom). It requires PoE+ (802.3at, Class 4) infrastructure. Standard 802.3af (15.4W max) will not reliably power this camera.

Q: Is the 02914-001 suitable for mounting near water features or spray zones?

A: IP66 rating handles direct rain and water jets, but does not cover full submersion or sustained high-pressure spray environments. Verify your mounting location's water exposure patterns align with IP66 limits before installation.

Q: Does the Axis 02914-001 integrate with Milestone XProtect and Genetec Security Center?

A: Yes. The camera is ONVIF Profile S/T/G compliant, enabling integration with Milestone, Genetec, and other ONVIF-compatible VMS platforms without proprietary software dependencies.

Q: What is the maximum preset count on the 02914-001?

A: 256 preset positions. Allows operators and automation routines to jump between up to 256 pre-programmed pan, tilt, and zoom coordinates—sufficient for most large-area multi-zone surveillance workflows.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02914-001 is a workhorse outdoor PTZ for any deployment where a single camera must cover multiple zones. The combination of 21x optical zoom and unwavering 50 fps frame rate across all focal lengths makes it particularly valuable in scenarios where you cannot mount additional fixed cameras—airport perimeters, port container yards, or municipal traffic corridors. The H.265 codec support directly addresses storage pressure on large surveillance networks.

Technical Highlights:

• 21x Optical Zoom (4.0–84.6mm): Moves from a 77° wide view to 3.6° narrow field without digital interpolation—one physical unit replaces three fixed cameras while maintaining full optical detail across the entire zoom range.
• 50 fps at 1080p, any zoom level: No frame-rate degradation during zoom operation means motion-detection logic remains consistent, and forensic playback shows smooth panning without stutter artifacts.
• H.265 codec support (40–50% storage reduction vs. H.264): On 24/7 multi-camera deployments, codec selection directly impacts NVR storage footprint. The 02914-001 gives you the option; use it on high-motion scenes (crowds, traffic) to stretch your storage budget.
• 95W peak PoE+ draw: Not a problem if your switch is properly sized, but undersized PoE+ infrastructure will reveal itself under load. Confirm before deployment.
• IP66/NEMA 4X sealing: Dust and rain ingress are a non-issue, but submersion and sustained spray-wash environments require IP67 or higher—verify your mounting environment stays within IP66 limits.

Deployment Considerations:

• PoE+ infrastructure is non-negotiable: Standard 802.3af switches cannot sustain the 95W peak draw. A single undersized switch serving multiple PTZ units will introduce brownouts and motion jitter. Audit your switch capacity before ordering.
• Wide Dynamic Range (120 dB) is a genuine feature, not marketing: Simultaneous shadow and highlight detail in a single frame means fewer separate recordings during post-incident review—real time savings on forensic analysis.
• microSD backup recording decouples the camera from network availability: Useful in sites with unreliable network paths; the camera continues recording locally if the NVR drops offline temporarily.

Best suited for large outdoor sites where operator control or automated tracking is expected—airport security, container terminal perimeter watch, municipal traffic enforcement corridors. If your environment is purely passive monitoring (record-only, no tracking), a fixed wide-angle camera may be more cost-effective.
