Axis W120 1080p Body Worn Camera - 02681-004

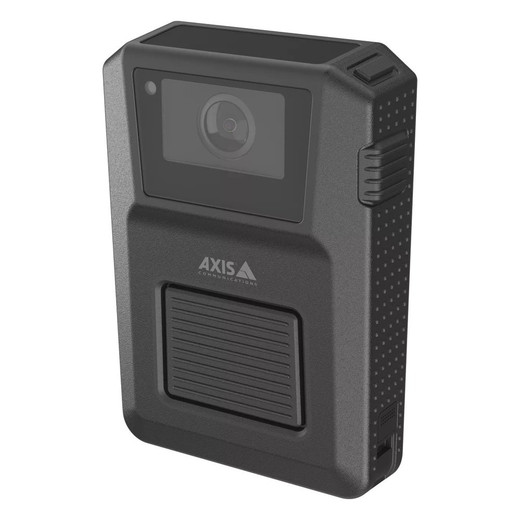

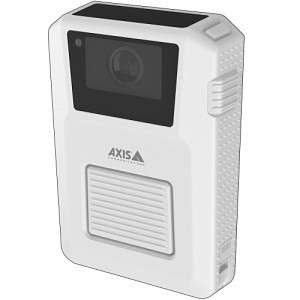

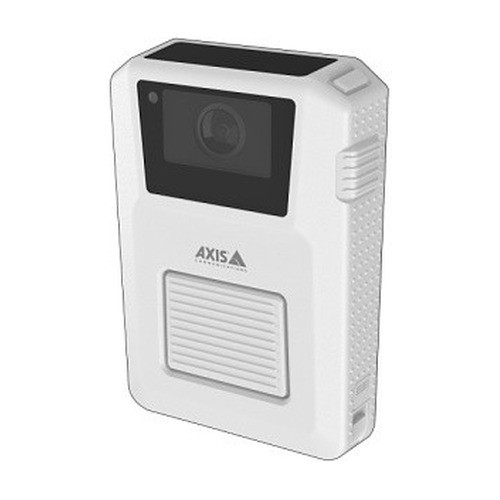

Axis 02681-004 W120 1080p Body Worn Camera

The Axis 02681-004 is a compact, professional-grade body worn camera engineered for law enforcement, security personnel, and mobile field operations requiring dependable video documentation in unpredictable environments. At 0.44 lbs, the device minimizes wearer fatigue during extended shifts while delivering 1080p resolution with electronic image stabilization—a practical balance that maintains forensic-quality evidence without the storage bloat of higher megapixel counts. This is a deliberate design choice: 2MP covers identification and incident detail for most courtroom admissibility standards while keeping file sizes and network bandwidth realistic across shift-long recordings.

Key Features

• 1080p (2MP) Resolution with Electronic Image Stabilization: Delivers usable evidence-grade video suitable for incident documentation, witness identification, and courtroom presentation. The 2MP sensor balances image detail with practical file sizes—a real constraint when agencies manage hundreds of hours of recording monthly across multiple officers. Electronic stabilization compensates for body movement and camera shake, improving usability of footage captured during active situations.
• Day/Night with Integrated Infrared: Built-in IR with 850nm wavelength enables 24/7 monitoring in low-light and night operations without requiring external illumination. Particularly valuable for undercover deployments, outdoor patrol in darkness, and indoor venues where additional lighting would compromise operational security or evidence capture. You don't need a secondary night-vision unit.
• Wide Dynamic Range (WDR): Manages extreme lighting transitions—critical when officers move from bright outdoor scenes into dark indoor spaces or when backlighting threatens to wash out facial features. WDR preserves usable video across these challenging exposure conditions without requiring manual exposure adjustment.
• H.264 Compression: Reduces file sizes 20–30% versus uncompressed or lower-compression formats. On shift-long recordings (12+ hours), this difference compounds significantly—fewer storage devices needed, faster network transmission over Wi-Fi, and reduced costs for cloud or local archival compliance systems managing hundreds of hours monthly across multiple users.
• Triple Connectivity (Wi-Fi, Bluetooth, USB Type-C): Wi-Fi enables real-time incident streaming to command centers or rapid emergency alerts without waiting until end-of-shift data transfer. Bluetooth supports wireless pairing with duty belts or secondary recording devices for multi-angle documentation. USB Type-C allows straightforward post-shift data transfer without proprietary docking stations, reducing chain-of-custody complexity and equipment cost.
• IP67 Weatherproof Rating: Survives dust, rain, and brief submersion (up to 1 meter for 30 minutes). Essential for outdoor patrol, tactical deployments, and adverse weather operations. Not rated for full underwater use—if sustained submersion is required, you'll need an IP68-rated variant from the Axis line.
• 12.5-Hour Battery Endurance: Covers a full patrol shift without mid-duty recharging. USB-C charging allows fast top-ups between calls or at shift change. For 24-hour continuous operations or back-to-back shifts without downtime, you'll need a second battery or external power pack.
• HTTPS Encryption: Ensures video transmitted over Wi-Fi remains encrypted, protecting sensitive evidence and officer identity from interception during wireless data transfer. Complies with standard agency chain-of-custody and data protection requirements.
• LCD Status Display: Provides real-time feedback on battery state, recording status, and connectivity—eliminating guesswork and reducing evidence loss from unintended recording stops or failed transmissions.
• Operating Temperature Range (-20°C to +50°C / -4°F to +122°F): Reliable deployment in extreme cold (winter patrol, high-altitude operations) and heat (desert environments, summer urban deployments). Verify your specific climate and seasonal extremes fall within this envelope before large-scale procurement.

Integration and Connectivity

The 02681-004 connects to network video recorders and command-center docking systems via Wi-Fi or USB. HTTPS encryption ensures secure transmission of evidence over wireless networks. Bluetooth pairing enables multi-angle recording with secondary devices. Integration with network video recorders or third-party VMS platforms supporting ONVIF simplifies evidence management and archival workflows. The compact form factor integrates with standard duty belt carriers and chest mounts without adding bulk.

When to Choose a Different Model

If your deployment requires continuous 24-hour uninterrupted recording, consider pairing the 02681-004 with an external battery pack or staging multiple units with staggered charging cycles. If full underwater immersion (IP68) is mandatory—for example, dive teams or water rescue operations—evaluate higher-rated variants in the Axis body camera family. For operations requiring higher resolution (4MP+) at the cost of larger file sizes and storage overhead, explore higher-megapixel Axis body cameras or fixed-site surveillance cameras that support larger sensors without the weight constraint of a worn device.

Frequently Asked Questions

Q: What is the actual battery life under real-world conditions?

A: Axis rates the 02681-004 at 12.5 hours of continuous recording. Battery life varies with Wi-Fi transmission load, infrared use, and display brightness. Continuous Wi-Fi streaming shortens endurance compared to local recording only. For shift-based deployments, plan on 12 hours as the baseline and have a second battery or charging dock available.

Q: Does the IP67 rating mean the camera is waterproof?

A: IP67 means the device survives dust and brief submersion up to 1 meter for 30 minutes. It's suitable for rain, splash, and accidental water exposure. It is not rated for sustained underwater use or full immersion beyond 30 minutes. If you require continuous submersion, you'll need an IP68-rated device.

Q: Can the 02681-004 stream live video while recording locally?

A: Yes. Wi-Fi connectivity supports simultaneous real-time streaming to a command center while the device records locally to internal storage. This dual-mode operation enables incident dispatch response while preserving an independent local copy for chain-of-custody compliance.

Q: What is the infrared range for night operations?

A: The 02681-004 includes integrated 850nm infrared illumination optimized for close to medium-range night operations. Exact range varies with reflectance and ambient conditions, but IR is sufficient for typical indoor patrol, dark corridors, and outdoor night scenes within 15–20 feet. For extended range night vision, external IR illumination or higher-power IR body cameras may be required.

Q: Is the 02681-004 NDAA Section 889 compliant?

A: Axis body cameras are manufactured outside the restricted jurisdiction. Verify current NDAA compliance status and any geographic sourcing requirements with your procurement or security team, as regulations and Axis product sourcing are subject to change.

Q: Can I integrate the 02681-004 with our existing VMS or command-center software?

A: Integration depends on your VMS or platform's support for ONVIF-based IP devices and USB data import. The 02681-004 transmits over HTTPS via Wi-Fi and exports video files via USB Type-C, making it compatible with most modern video management systems. Consult your VMS vendor or our integration team for specific plugin or API requirements.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02681-004 is a deliberate engineering choice for field teams that need compact, shift-duration recording without overcomplicating procurement or storage infrastructure. The 2MP 1080p resolution paired with H.264 compression hits a pragmatic sweet spot: you get forensic-quality evidence—sufficient for witness identification and courtroom use—while keeping file sizes reasonable enough that real-world deployments don't strain Wi-Fi bandwidth or require enterprise-scale storage arrays for compliance archival.

Technical Highlights:

• 12.5-Hour Battery and H.264 Compression: A full shift (8–12 hours) without mid-duty charging, plus file sizes 20–30% smaller than uncompressed or MJPEG alternatives. On a 100-officer department recording 8 hours per shift, you're looking at meaningful differences in storage costs and backup speed—quantify this before dismissing it as minor.
• Integrated 850nm IR and Day/Night Capability: No external illumination required for undercover work or night operations. The 02681-004 handles low-light capture without adding gear weight or compromising officer safety through visible light spillover.
• IP67 + Operating Range -20°C to +50°C: Rain, dust, and temperature extremes are handled. The brevity limit on submersion (1 meter, 30 minutes) is a real constraint—brief water crossings or splash are fine; extended water work is not.
• HTTPS-Encrypted Wi-Fi and Dual-Mode Recording: Real-time streaming to dispatch doesn't risk losing a local copy. Encryption protects evidence in transit, addressing both security and chain-of-custody auditing.

Deployment Considerations:

• Battery life is shift-dependent. Continuous Wi-Fi streaming uses more power than local-only recording. Stage charging docks at roll call or shift change if you're running back-to-back deployments.
• IR range is effective for typical patrol scenarios (indoor corridors, outdoor night scenes within 15–20 feet) but not long-range surveillance. If your team needs 50+ meter night range, you need external IR or a different device class.
• The 0.44 lb weight is genuine—lighter than comparable 4MP variants—but verify with end users that the physical form factor (placement on chest mount, belt clip) doesn't create operational friction for your use case.

The 02681-004 is the right call for law enforcement, correctional facilities, and security response teams where shift-duration recording, compact form factor, and infrared night operations matter more than maximum megapixel count. You're trading resolution ceiling for practical deployment simplicity and battery endurance—a trade that wins in the field.
