Axis C7050 Mk III Audio Management Appliance - 02723-004

Axis C7050 Mk III Audio Management Appliance - 02723-004

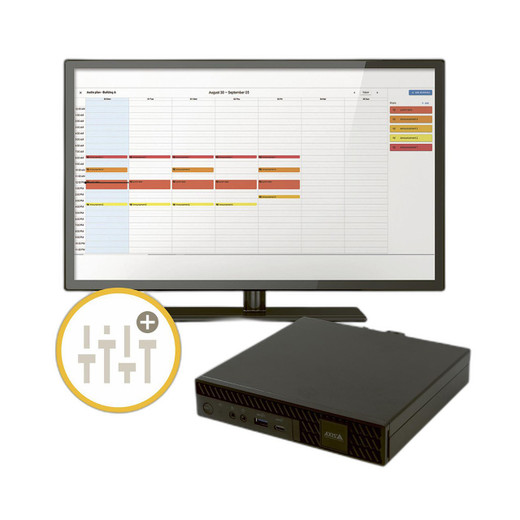

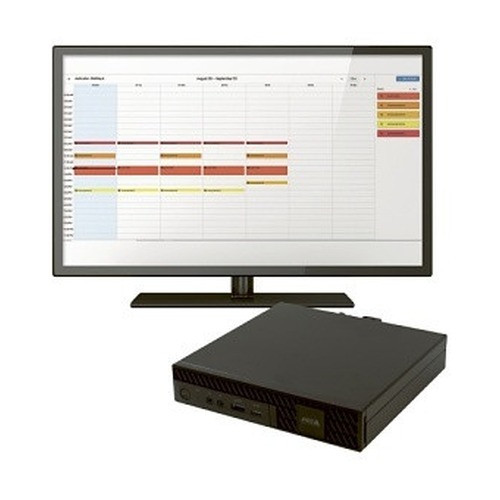

The Axis Audio Manager Pro C7050 Mk III (SKU: 02723-004) is a dedicated audio management appliance engineered for large-scale commercial and institutional deployments. Built on a hardened Windows 10 IoT Enterprise platform with enterprise-grade security, this system delivers centralized control and monitoring of complex audio environments across up to 5,000 devices organized into 100 zones.

Key Features

• Manages up to 5,000 audio devices across 100 independent zones
• Centralized device setup, volume control, content scheduling, and real-time configuration
• 24/7 system health monitoring with syslog server support
• Multi-format audio support: MP3, MP4, AAC, WMA, OGG, FLAC, WAV, and Opus streaming at up to 320 kbps
• Live announcements and emergency messaging with content prioritization
• SIP-based VoIP integration for two-way communication and IP-PBX connectivity
• Support for Internet radio (M3U, PLS, ASX formats)
• Dante connectivity via virtual soundcards
• Multilingual interface: 13 languages supported including English, French, Spanish, German, and Asian languages

Technical Specifications

• Processor: Intel Core i3-12100T
• Memory: 8 GB RAM (2×4 GB)
• Storage: 256 GB SSD
• Graphics: Intel UHD Graphics
• Network: Gigabit Ethernet (RJ45), IPv4/IPv6, HTTP/HTTPS, DNS, NTP, RTP, RTSP, DHCP, SIP, mDNS
• Connectivity: 1× USB 3.2, 1× USB 3.2 Gen 2, 2× USB-C, 4× rear USB 3.2, 2× DisplayPort 1.4a, front and rear audio jacks
• Power: 90W max, external AC/DC adapter (100–240V AC, 19.5V DC)
• Operating Temperature: 0–45°C (32–113°F) at 20–80% relative humidity
• Physical: 182×36×178 mm, 1.1 kg

Security & Compliance

• FIPS 140-2 Level 2 certified encryption
• Trusted Platform Module (TPM 2.0)
• Encrypted OS drive support
• Built-in OS recovery
• EMC compliance: EN 55032 Class B, FCC Part 15 Class B, ISED ICES-003
• Safety certifications: IEC/EN/UL 62368-1
• TAA (Trade Agreements Act) compliant

Applications

Ideal for retail chains, transportation hubs, healthcare facilities, universities, corporate campuses, emergency response centers, and any large-venue installation requiring synchronized audio distribution with centralized management and monitoring.

Ted Perry

Perspective based on aggregated and affiliated engineering team experience.

The C7050 Mk III represents a significant upgrade in audio management infrastructure. The i3-12100T processor and 8 GB RAM provide sufficient headroom for handling thousands of concurrent audio streams without performance degradation. The inclusion of Windows 10 IoT Enterprise LTSC 2021 ensures long-term support and security patching—critical for enterprise deployments.

Native SIP support integrates seamlessly with existing VoIP infrastructure, while Dante connectivity via virtual soundcards offers flexibility for hybrid audio environments. The 256 GB SSD is suitable for local caching of frequently-played content, reducing bandwidth consumption. FIPS 140-2 Level 2 certification and TPM 2.0 provide institutional-grade security, meeting compliance requirements in healthcare, finance, and government sectors.

The wide operating temperature range (0–45°C) supports deployment in non-conditioned spaces like loading docks and outdoor shelters. Next Business Day Onsite Support and a 5-year warranty minimize downtime risk for mission-critical installations.
