Axis A9910 I/O Relay Expansion Module - 02862-001

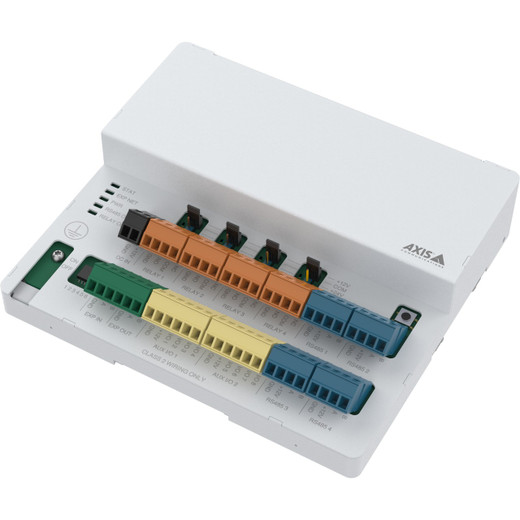

Axis 02862-001 A9910 I/O Relay Expansion Module

The Axis 02862-001 is a PoE-powered I/O relay expansion module designed to extend access control, environmental monitoring, and automation capabilities across large distributed security deployments. Unlike standalone relay modules that require separate power and data circuits, the A9910 operates as a slave to the Axis A9210 controller over a single network connection, reducing installation overhead and simplifying troubleshooting on multi-building campuses, logistics centers, and industrial facilities.

Key Features

• Eight Supervised I/O Ports: Each port detects open/short conditions and tamper events, meaning false alarms from cut wires or sensor disconnects are flagged immediately—critical for high-security perimeters where you need to know if a sensor line is intact, not just whether it's reporting.
• Four Form C Relays: Each relay handles both wet (powered switching) and dry contact (simple closure) operations. This flexibility lets you control HVAC dampers, magnetic locks, gate operators, and emergency beacons from a single module without custom wiring adapters.
• Four Modbus Sensor Ports: Direct integration of temperature and humidity sensors means environmental data flows into your security workflow alongside access events—no separate data collection layer required. Critical for pharmaceutical storage, data center monitoring, and climate-sensitive warehouses where a door event + temperature spike can trigger automated responses.
• Single PoE Connection: Draws power and carries full I/O data over one Ethernet cable. No 12VDC power supplies, no separate relay modules scattered across the site. Simplifies power budgeting and reduces the number of single points of failure.
• Multi-Drop Daisy-Chain Architecture: Up to 16 A9910 modules chain from one A9210 controller, scaling to 128 I/O points and 64 relays under a single IP address. For a warehouse with 12 loading docks, you'd install one A9210 at the network core and chain three A9910 modules to each dock entrance—minimal cabling, one management point.
• Vendor-Neutral Modbus Compatibility: Modbus is an open industrial protocol; you can integrate third-party environmental sensors without proprietary gateways or license costs.

Integration & Compatibility

The 02862-001 operates exclusively as a slave module to an Axis A9210 controller—it cannot function standalone. This dependency simplifies configuration (the A9210 handles all logic and event routing) but requires that controller to be present in your deployment. All I/O supervision, relay switching, and Modbus polling are managed by the A9210, meaning firmware and event correlation are centralized and auditable.

Integration with Axis surveillance cameras and network video recorders is native via ONVIF and Axis event protocols. When a supervised I/O port detects alarm (e.g., perimeter breach), the A9210 can trigger camera pre-recording, bookmark NVR footage, and activate relays—all in milliseconds without network latency.

For access control integration, the A9910 bridges traditional relay-based door hardware (mag locks, exit buttons, request-to-exit sensors) into IP-based identity and audit workflows. Environmental correlation is particularly valuable in PoE-powered infrastructure planning—if a HVAC sensor malfunctions, the A9210 logs the timestamp, flags associated access events, and alerts facility staff.

Deployment Considerations

The A9910 is modular by design. A single controller supports up to 16 modules, but organizations exceeding 128 I/O points must deploy multiple A9210 controllers (each with its own IP address and management domain). For campus-scale deployments with 300+ I/O points, that management overhead is real and should factor into your RFP scope.

Supervised I/O detection reduces false alarms but requires proper sensor wiring (no long unshielded runs in electrically noisy environments like motor control rooms). Test wire runs before final deployment, especially for dry-contact inputs running 50+ feet.

Applications

• Campus and perimeter security with centralized multi-building I/O control
• Logistics and warehouse automation requiring coordinated access and environmental awareness
• Industrial facilities needing integrated HVAC, alarm, and access relay switching under one management point
• Data centers and pharmaceutical storage where security events must correlate with temperature/humidity anomalies
• Multi-tenant and retail chains with distributed locations requiring scalable, unified I/O architecture

Frequently Asked Questions

Q: Can the Axis 02862-001 operate without an A9210 controller?

A: No. The A9910 is a slave module only and requires an Axis A9210 controller to function. The A9210 handles all I/O logic, relay triggering, and Modbus communication. The A9910 cannot be used standalone or with third-party controllers.

Q: What is the maximum number of A9910 modules I can chain?

A: Up to 16 modules per A9210 controller, supporting a maximum of 128 supervised I/O points and 64 Form C relays under a single IP address. If your deployment exceeds this capacity, you will need multiple A9210 controllers.

Q: Can the A9910 integrate temperature and humidity sensors directly?

A: Yes. The module includes four dedicated Modbus sensor ports for direct integration of third-party temperature and humidity sensors. Environmental data streams into the A9210 alongside I/O events, enabling real-time correlation between access and environmental conditions.

Q: Do the relays support both wet and dry contact switching?

A: Yes. All four Form C relays can operate in either wet (powered switching) or dry contact (simple closure) mode, depending on the connected load. This flexibility supports HVAC dampers, magnetic locks, gate operators, emergency signaling, and other diverse switching scenarios without custom adapter modules.

Q: What is the power consumption of the 02862-001?

A: The module draws power exclusively via IEEE 802.3af PoE, eliminating the need for auxiliary 12VDC supplies. Exact wattage depends on relay and sensor load; consult the datasheet or A9210 documentation for budget calculations on your specific PoE switch.

Q: Is the Axis A9910 compatible with third-party video management systems?

A: The A9910 itself is compatible with any VMS that supports ONVIF or Axis event protocols via the A9210 controller. However, some advanced environmental correlation and relay triggering features may require Axis Camera Station or AXIS Device Manager for full functionality.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02862-001 solves a real integration headache: most sites have scattered I/O—some wired to legacy alarm panels, some to access systems, some dangling from HVAC controls. The A9910 consolidates all of that under one IP-based workflow with supervised inputs and Modbus environmental sensors, so you're not flying blind if a sensor line cuts or a relay hangs. The PoE-only design is a huge practical advantage: no power supplies to rack, no auxiliary panels to wire, no 24VDC loops to troubleshoot.

Technical Highlights:

• Supervised I/O Detection: Open/short/tamper monitoring on all 8 inputs means you catch wiring failures in real time, not when a door-forced alarm fails to trigger. Essential for perimeter security where a cut fence sensor wire should raise an immediate alert, not go silent.
• Form C Relay Versatility: Four relays handling both wet and dry switching eliminates the need for external contactors or interface modules. A single A9910 can control mag locks, HVAC dampers, gate operators, and emergency strobes without custom hardware.
• Integrated Modbus Environmental Monitoring: Four dedicated sensor ports let you ingest temperature and humidity data without a separate gateway or polling overhead. In a pharmaceutical warehouse, a temperature spike + after-hours door unlock can trigger automated lockdown and alert facility management in parallel.
• Daisy-Chain Scaling: 16 modules per controller = 128 I/Os and 64 relays from one IP address. For a 12-dock loading facility, you install one A9210 and chain three A9910s—minimal cabling, centralized logging, and event correlation at network speed.

Deployment Considerations:

• The A9910 is not standalone—it requires an A9210 controller. If your site already lacks one, that's a controllerplus-module cost, not just the expansion board.
• Supervised inputs require clean wiring practices. Long, unshielded dry-contact runs in electrically noisy environments (near motor drives, VFDs, high-current switching) can trip false alarms. Test before deployment, especially runs exceeding 50 feet.
• The 16-module scaling ceiling (128 I/Os) is substantial but finite. Organizations exceeding that capacity require multiple A9210 controllers, each with its own IP address and management domain—a real operational step-up in complex sites.

The 02862-001 is the workhorse choice for warehouse automation, multi-building campuses, and industrial facilities where environmental awareness is as critical as access control. If you need to tie HVAC, alarms, access relays, and sensor data into one IP-based workflow without sprawling cabling or standalone gateways, this is the module that delivers it.
