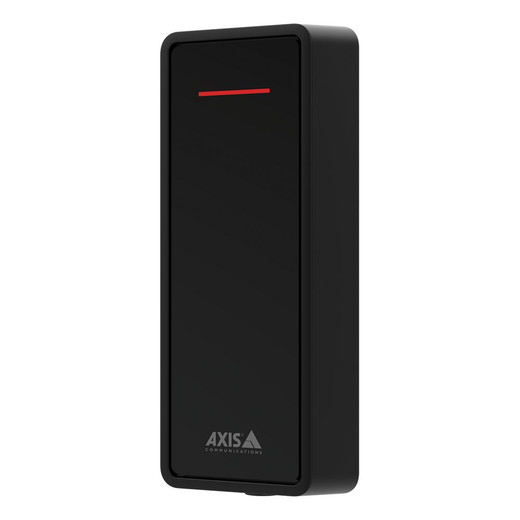

Axis 02144-001 A4020-E RFID Proximity Card Reader
The Axis 02144-001 is a compact, outdoor-rated RFID proximity card reader engineered for access control in demanding environments. It combines 13.56 MHz ISO14443A/B technology with hardware-level cybersecurity certification and environmental durability rated to IP65/NEMA 4X, making it suitable for corporate offices, secure facilities, data centers, healthcare institutions, and outdoor access points where certified security compliance and environmental resilience are non-negotiable.
Key Features
- 13.56 MHz RFID Technology with Multiple Card Support: Supports ISO14443A and ISO14443B standards, including MIFARE Classic®, MIFARE Plus® Level 1, and MIFARE DESFire® EV1/EV2 cards. This breadth of card compatibility means you won't be locked into a single card manufacturer—a practical advantage when expanding facilities or managing mixed card inventories across departments.
- EAL 6+ Certified Secure Element: Hardware-based security with secure keystore and secure boot protects against card cloning and credential interception at the silicon level, not just the software layer. For enterprises managing access to sensitive areas (data centers, restricted labs, executive zones), this certification provides auditable cryptographic integrity—a requirement for compliance frameworks like SOC 2 or HIPAA.
- IP65 and NEMA 4X Rated Enclosure: Hard-coated, scratch- and impact-resistant plastic casing (IK07) withstands direct water spray and dust ingress. This rating eliminates moisture-related failures in outdoor mullion-mount installations, covered porches, or high-humidity indoor zones—situations where standard indoor readers would corrode or malfunction within months.
- OSDP Protocol Support: Open Supervised Device Protocol enables vendor-neutral integration with third-party access control systems (Salto, Genetec, Milestone, etc.). This reduces system lock-in risk and simplifies future migrations or multi-vendor deployments without reconfiguring reader firmware.
- Integrated Tamper Detection: Built-in RGB LED and buzzer provide immediate visual and audible user feedback. The integrated tamper switch detects both casing intrusion and wall-removal attempts, adding a physical security layer for high-risk zones where unauthorized reader replacement or credential skimming is a concern.
- Flexible Mounting and Low Power Consumption: Mullion-mount or flat surface installation options accommodate most door and wall configurations. At 60 mA typical draw (peak 100 mA at 12 V DC), the reader's modest power footprint makes it viable for distributed deployments on shared power supplies—a cost factor when installing dozens of readers across a facility. The 12 V DC input qualifies for cable runs up to 1000 m (24 AWG), permitting centralized power and control architecture without intermediate repeaters.
- Extended Temperature Range: Operating range of −40 °C to 65 °C (−40 °F to 149 °F) with condensing humidity tolerance ensures reliable performance in unheated outdoor enclosures, freezer rooms, or climates with significant seasonal swings—scenarios where temperature drift causes drift in cheaper readers.
Integration & Compatibility
The Axis 02144-001 integrates via 4-pin terminal block (RS485 A/B + power), supporting standard industrial cabling without specialized Ethernet infrastructure. OSDP protocol integration works with access control platforms from Salto Systems, Genetec, Milestone, and other OSDP-certified vendors. Axis Edge Vault cybersecurity platform provides additional device-level monitoring and firmware management across fleets of readers.
Dimensions of 121 × 48 × 27 mm and 118 g weight enable compact installation in tight mullion spaces or retrofit scenarios where bulky readers present mechanical challenges. The 5-year warranty covers manufacturing defects across the secure element, casing, and electronics.
Frequently Asked Questions
Q: Is the Axis 02144-001 NDAA or TAA compliant?
A: No NDAA/TAA compliance claims are made in manufacturer documentation. Verify with your procurement team if Section 889 compliance is a contractual requirement.
Q: Does the 02144-001 work with Milestone XProtect?
A: The reader uses OSDP protocol, which is architecture-agnostic. Milestone systems that support OSDP readers (via Access Control management modules) can integrate the A4020-E. Confirm OSDP support in your specific Milestone version with your system integrator.
Q: What card types does the Axis 02144-001 support?
A: The reader supports ISO14443A and ISO14443B standards, including MIFARE Classic, MIFARE Plus Level 1, and MIFARE DESFire EV1/EV2 cards. This covers most enterprise card families, but verify your existing card stock against these specifications before deployment.
Q: Can I wall-mount the A4020-E outdoors year-round?
A: Yes. The IP65/NEMA 4X rating and IK07 impact-resistant casing handle direct water spray, dust, and temperature swings from −40 °C to 65 °C. Ensure proper drainage or overhang in heavy-rain environments to prevent water pooling at the mounting base.
Q: What is the maximum cable run distance for the 02144-001?
A: RS485 cabling qualifies for runs up to 1000 m using 24 AWG wire. This enables centralized power and control supply without intermediate repeaters or signal boosters, reducing infrastructure cost in large facilities.
Q: How much power does the A4020-E consume?
A: Typical draw is 60 mA at 12 V DC; peak is 100 mA. This modest consumption permits multiple readers on a single shared power supply, important for cost-effective distributed deployments across multiple doors.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02144-001 stands out for its combination of cryptographic security certification and rugged field design. The EAL 6+ secure element ensures hardware-level cryptographic integrity, protecting against card cloning and credential interception—a critical requirement for enterprises managing sensitive facility access. OSDP protocol support enables vendor-neutral integration, reducing lock-in risk and simplifying system expansion without reconfiguring reader firmware or control panels.
Technical Highlights:
- EAL 6+ Certification + Secure Boot: Hardware-backed cryptography prevents cloning and credential theft at the silicon level. For SOC 2 or HIPAA audits, this certification provides auditable evidence of tamper-resistant card authentication—a meaningful compliance asset.
- IP65/NEMA 4X + IK07 Casing: Direct water spray and impact resistance eliminate moisture-related failures in outdoor mullion-mount installations. The condensing humidity rating ensures performance in high-sweat environments (e.g., warehouse receiving docks, cold storage entrances).
- 60 mA Typical Draw + 1000 m RS485 Qualification: Modest power overhead and long cable qualification (24 AWG) permit centralized power and control architecture. On a 24-door facility, this reduces infrastructure cost and simplifies troubleshooting versus distributed power supplies for each reader.
- MIFARE Card Family Support: ISO14443A/B compatibility (MIFARE Classic, Plus, DESFire) covers most enterprise card stocks. Verify your existing card type before deployment—incompatible cards will fail silently.
Deployment Considerations:
- RS485 terminal block requires industrial-rated cabling and clean power supply—power transients or EMI spikes can disrupt reader operation. Use surge protection on the 12 V DC input if the reader shares facility power with heavy machinery or HVAC systems.
- The H-field strength of 15.63 dBµA/m at 3 m is moderate; test card read range in your specific mounting configuration (mullion depth, door material, adjacent metal frames) before final installation. Some mounting positions may reduce reliable read distance.
- OSDP integration requires your access control system to explicitly support the protocol. Legacy Wiegand-only systems will not work with this reader without a protocol converter.
The Axis 02144-001 is the right choice for outdoor or harsh-environment access points where certified security, environmental resilience, and vendor-neutral system integration are non-negotiable. For indoor offices with standard climate control and legacy Wiegand-only controllers, a simpler (and cheaper) indoor reader may suffice. For new deployments prioritizing long-term compliance and multi-vendor flexibility, this model delivers real value.
