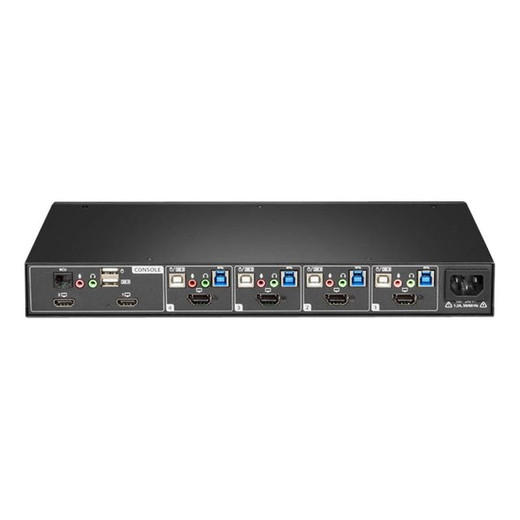

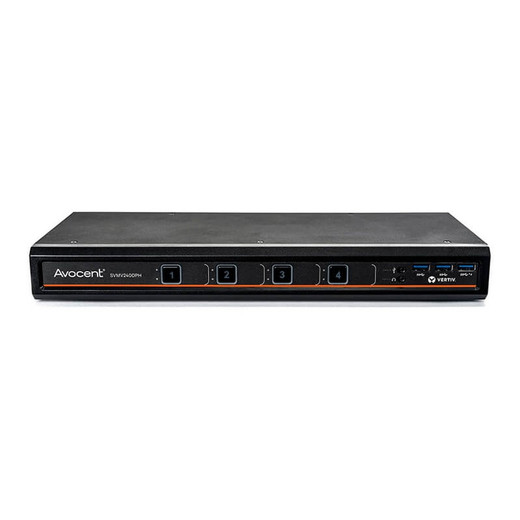

Vertiv SVMV280DPH-400 Multiviewer KVM Switch
Overview
The Vertiv Avocent SVMV280DPH-400 is an 8-port Multiviewer KVM switch designed for environments where consolidating control of multiple servers or workstations into a single console is critical. This unit allows you to view and manage up to eight different video sources simultaneously on a single monitor, streamlining operations in data centers, server rooms, and control centers. The SVMV280DPH-400 model integrates seamlessly into existing infrastructure, providing efficient access and management of your IT hardware.
Compatibility
This KVM switch is engineered to support high-resolution video output, specifically UHD 4K (3840x2160) at a smooth 60Hz refresh rate. It is compatible with standard KVM console setups and server-side connections utilizing DisplayPort or HDMI interfaces (adapter dependent). Its design focuses on providing clear, lag-free video feeds from connected devices, making it suitable for workstations and servers requiring high-definition video output for monitoring and control.
Installation Notes
The unit has physical dimensions of 5.0 inches wide, 2.6 inches high, and 17.5 inches deep, with a weight of 8.2 lbs. Ensure adequate rack space and ventilation are provided. The 4K @60Hz capability requires compatible cabling and displays on both the console and source sides to achieve full performance. Verify that the connected devices output video signals within the supported resolution and refresh rate parameters.
