APC by Schneider Electric LE600I 600VA Automatic Voltage Regulator
Overview
The APC by Schneider Electric LE600I is a 600 VA automatic voltage regulator (AVR) designed to protect connected equipment from brownouts, overvoltages, and voltage fluctuations on 230 V mains. Where a standard UPS handles outages, the LE600I targets the far more common problem — grid voltage that drifts outside equipment tolerances — keeping downstream devices running stably without switching to battery. For power protection applications where the utility feed is unreliable but total blackouts are rare, this is a more cost-effective tool than a full UPS. Browse the full APC by Schneider Electric catalog for complementary solutions.

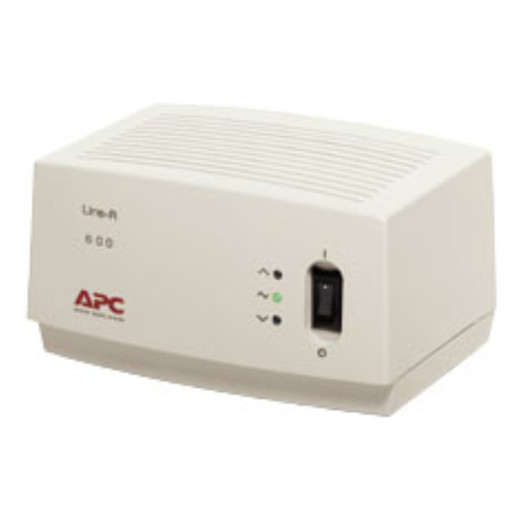

The LE600I accepts a standard IEC C14 plug and delivers regulated 220–240 V output across four IEC C13 receptacles — a form factor common in rack-adjacent and desktop deployments where equipment uses C13 power cords directly. The compact beige/grey enclosure measures 214 mm × 141 mm × 116 mm and weighs 3.1 kg, so it sits comfortably on a shelf or equipment rack without consuming a full rack unit.
Key Features
- 600 VA / 600 W Output Capacity: Handles up to 600 W of connected load — enough for several IP cameras, a mid-range NVR, or a small network switch. Size your connected load to stay under this ceiling; exceeding it forces the unit to drop loads unpredictably.
- Automatic Voltage Regulation — 220–240 V Output: Actively corrects input voltage sag or surge and delivers a regulated 220–240 V output regardless of mains fluctuation. Equipment that trips or misbehaves during brownouts stays operational, reducing unplanned restarts on surveillance recorders and network gear.
- 50/60 Hz Input with 47–63 Hz Output Tolerance: The wide output frequency window (47–63 Hz) accommodates generator power during extended utility events — important for sites that run diesel backup that may not lock to a clean 50 Hz immediately.
- Four IEC C13 Outlets: All four outlets deliver regulated power simultaneously. C13 is the standard receptacle for most rack-mount and desktop equipment power supplies, so no adapters are typically required in an IT/surveillance equipment room.
- 300 J Surge Energy Rating: The built-in surge suppressor absorbs transient spikes up to 300 joules. This is a moderate-protection tier — adequate for normal grid noise and nearby switching transients, but not a substitute for dedicated surge protection on circuits exposed to frequent lightning activity.
- 92% Efficiency: At 92% efficiency, the LE600I wastes less power as heat than less efficient regulators. On a device running 24/7, that efficiency figure directly affects operating cost and thermal load in enclosed equipment spaces.
- CE Certified: CE marking confirms compliance with applicable EU directives for electrical safety and EMC — a requirement for deployment across European installations and those following equivalent standards.
- Operating Range 0–40°C, 5–95% RH: Covers standard indoor equipment rooms. The 0°C lower limit means unheated enclosures in cold climates need supplemental heating — this is not rated for outdoor or unheated industrial cabinet use.
- Operating Altitude to 3,000 m: Usable at high-altitude sites (communications towers, mountain-top installations) where thinner air reduces cooling efficiency on conventional equipment. Verify thermal conditions at altitude remain within the 40°C ceiling.
- IEC C14 Input Plug: Integrates directly into IEC-based power distribution without requiring a local mains adapter. In mixed-standard environments, confirm the upstream PDU or outlet strip provides a C13 socket for the C14 input.
Integration and Compatibility
The LE600I fits wherever 230 V, C13-terminated equipment needs stable voltage — network video recorders, PoE switches, access control panels, and IP intercom controllers are all typical loads. Its four C13 outlets allow a small cluster of devices to share a single regulated feed, simplifying power infrastructure in edge equipment rooms or remote surveillance cabinets.
For sites requiring battery backup in addition to voltage regulation, pair the LE600I with an APC UPS on the same circuit, or evaluate APC's Back-UPS and Smart-UPS families which combine AVR and battery backup in one unit. The LE600I addresses voltage quality; it does not provide runtime during a full power outage. Consult a UPS and power protection buying guide to determine whether standalone AVR or a combined UPS solution fits your site's risk profile.
The C14 input and C13 output configuration aligns with standard rack PDU and equipment room cabling — no custom adapters required in most IEC-standard environments. Confirm upstream circuit capacity: at 600 W draw, the feeding breaker and PDU must support the load continuously.
Frequently Asked Questions
Q: What is the maximum load I can connect to the LE600I?
A: The LE600I is rated at 600 VA / 600 W. Keep your total connected load below this figure. Exceeding the rating risks tripping the unit's overload protection and dropping all connected equipment.
Q: Does the LE600I provide battery backup during a power outage?
A: No. The LE600I is an automatic voltage regulator, not a UPS. It protects against brownouts, overvoltages, and surge transients, but it does not supply power during a full outage. If runtime during outages is required, a UPS is the correct device.
Q: What outlet and plug types does the LE600I use?
A: The input uses an IEC C14 coupler (the standard 3-pin male connector found on most equipment power supplies). The four output outlets are IEC C13 couplers, which accept standard C13-terminated equipment power cords.
Q: Is the LE600I suitable for outdoor or unheated enclosure installation?
A: No. The operating temperature range is 0–40°C. Unheated enclosures in cold climates or outdoor installations are outside the rated operating range. Install in a climate-controlled equipment room or cabinet.
Q: What certifications does the LE600I carry?
A: The LE600I carries CE certification, confirming compliance with applicable EU electrical safety and EMC directives. No additional certifications (UL, FCC, NDAA) are confirmed in the available evidence.
Q: Can the LE600I handle generator power with variable frequency?
A: Yes. The output frequency tolerance of 47–63 Hz accommodates generator sources that may not immediately lock to a stable 50 Hz, making the LE600I usable during generator-backed grid events typical at remote surveillance or industrial sites.
The LE600I addresses a protection gap that pure-UPS thinking often misses: on many international and developing-market grids, the chronic problem isn't outages — it's sustained undervoltage (brownout) that keeps equipment running but degrades power supplies and causes NVR recording gaps. At 92% efficiency across a 600 W regulated output, the LE600I adds minimal thermal load while keeping that output locked to 220–240 V regardless of what the utility is actually delivering.
Technical Highlights:
- 600 VA / 600 W rating: Practical ceiling for a 4-camera NVR plus the switch feeding it. At typical surveillance loads (NVR ~80 W, PoE switch ~60 W idle), you have headroom for additional loads, but map your actual draw before commissioning — continuous operation at or near 600 W stresses the thermal design.
- 300 J surge rating: Moderate protection for normal grid noise. Adequate for equipment rooms with standard electrical infrastructure. Sites with a history of nearby lightning strikes or heavy industrial switching loads should evaluate additional upstream surge suppression rather than relying on this alone.
- 47–63 Hz output window: This is the spec that matters on generator-backed remote sites. Diesel generators frequently run 48–52 Hz under variable load; equipment with tighter frequency tolerance will fault. The LE600I's wide window keeps downstream gear stable through generator speed hunting during load transitions.
Deployment Considerations:
- All four C13 outlets share the single 600 W capacity — there is no per-outlet circuit protection indicated in the evidence. If one connected load faults and draws excess current, it can impact all outlets simultaneously. Use a downstream fused strip if individual circuit protection is required.
- The 0°C lower operating limit is a hard constraint. Remote surveillance cabinets in northern climates without active heating will drop below this in winter. Either add a cabinet heater or select a regulator with a lower cold-temperature rating for those deployments.
The LE600I is well-matched to a small NVR closet or edge surveillance equipment room in a region with unstable utility voltage — a 4-outlet, C13-native footprint that slots into existing IEC-standard infrastructure without adapters, keeps a mixed load of NVR and switching gear on stable voltage, and does so at a power budget that won't stress a standard 10 A circuit.
