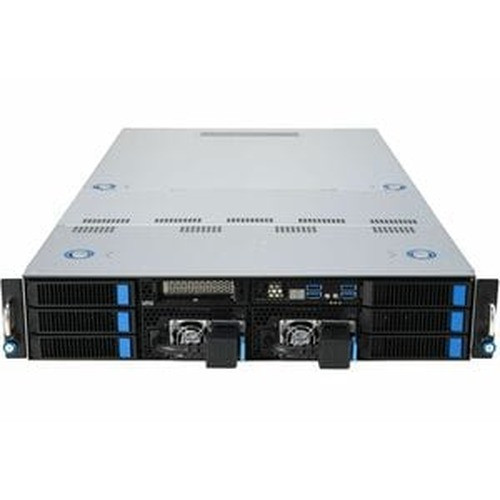

ASUS ESC4000-E11-26WGP Server 2U Rack Intel PCH C741 16 X DDR5 4800 1DPC /4400 2DPC

ASUS ESC4000-E11-26WGP 2U Rack Server

Overview

The ASUS ESC4000-E11-26WGP is a 2U rack-mount server built for high-density compute workloads in security and surveillance environments. Measuring 44 inches long (L × W × H: 44.00 × 23.50 × 15.50 inches) and weighing 115 pounds, the ESC4000-E11-26WGP fits standard 19-inch rack enclosures without special modifications. The platform centers on Intel PCH C741 chipset architecture, supporting up to 16 DIMM slots for DDR5 memory at 4800 MHz (1DPC configuration) or 4400 MHz (2DPC configuration). This memory flexibility allows you to scale RAM capacity from modest baseline deployments to memory-intensive analytics clusters without chassis redesign.

Key Features

• 2U Form Factor: At 15.50 inches tall, the compact chassis fits side-by-side with other rack equipment in standard 42U or 48U enclosures — critical when space per deployment site is metered. Depth of 23.50 inches keeps cable routing to standard patch-panel distances.
• 16-Slot DDR5 Memory Architecture: Support for 16 DIMM slots addresses the memory-hunger of parallel video analytics, multi-stream transcoding, and large in-memory caches. The dual-population-density (1DPC and 2DPC) capability means you can start with four DIMMs and scale to 16 without motherboard swaps.
• DDR5 4800/4400 MHz Speed Options: DDR5 at native 4800 MHz (1DPC) or 4400 MHz (2DPC) delivers 60–70% higher bandwidth than DDR4-3200, directly reducing latency when processing multiple concurrent video streams or running AI inference on edge-recorded footage.
• Intel PCH C741 Chipset: Enterprise-class I/O fabric including PCIe lanes for GPU cards, network adapters, and NVMe storage expansion — common requirements in surveillance NVR clusters where GPU acceleration (NVIDIA A100, RTX 6000) handles real-time object detection or inference.
• 115 lb Weight Specification: Acceptable for single-person rack installation without powered lifts in most data center environments; verify your rack's weight rating and consider assisted installation if combining with full memory and drive bays.
• Made in China: Standard manufacturing origin; no bearing on performance or security certifications. Verify NDAA Section 889 compliance separately with ASUS if required for federal supply-chain mandates.

Integration & Compatibility

The C741 chipset and PCIe architecture support standard enterprise integrations: 10GbE network cards for high-throughput camera ingestion, NVIDIA GPU passthrough for real-time analytics acceleration, and multi-port SATA/NVMe controllers for direct-attached storage. DDR5 DIMMs from major vendors (Corsair, Kingston, Micron) are backward-compatible within JEDEC specifications, reducing procurement friction in enterprise environments. Confirm power supply availability — the ESC4000-E11-26WGP requires 2–3kW input depending on final CPU, GPU, and drive configuration; validate your PDU and UPS capacity before rack deployment.

What's in the Box

Package contents not specified in available evidence. Contact the manufacturer for verification of included items (mounting hardware, documentation, cable management straps, etc.).

Frequently Asked Questions

Q: What is the maximum memory capacity of the ESC4000-E11-26WGP?

A: With 16 DIMM slots supporting standard DDR5 modules, maximum capacity depends on DIMM density — typically up to 768 GB (16 × 48GB) if using high-capacity modules, though verify with ASUS for specific tested configurations and BIOS support.

Q: Can the ESC4000-E11-26WGP support GPU cards for video analytics acceleration?

A: Yes. The Intel PCH C741 chipset provides PCIe lanes for GPU expansion. Confirm slot count, power availability, and thermal design with ASUS specifications for your target GPU (NVIDIA A100, RTX 6000, etc.).

Q: What power input does the ESC4000-E11-26WGP require?

A: Typical 2U servers in this class draw 2–3 kW under full load (CPU, GPU, storage). Confirm exact PSU wattage and input voltage (120V or 240V) with ASUS or your distributor before rack PDU assignment.

Q: Is the ESC4000-E11-26WGP NDAA Section 889 compliant?

A: Compliance is not confirmed in available product data. Request explicit NDAA Section 889 documentation from ASUS or your procurement team if required for federal contracts.

Q: Does the ESC4000-E11-26WGP support NVMe storage?

A: The C741 chipset supports NVMe controllers. Verify slot availability and firmware support with ASUS. DDR5 memory and fast NVMe storage together enable real-time video indexing and archive retrieval in large surveillance deployments.

Q: What is the warranty on the ESC4000-E11-26WGP?

A: Warranty terms are not specified in available product data. Contact ASUS directly for standard hardware warranty coverage and support options.

James Everett

The ESC4000-E11-26WGP is purpose-built for surveillance infrastructure where you need dense compute in a compact footprint. The 16 DDR5 DIMM slots — running at 4800 MHz in 1DPC or 4400 MHz in 2DPC configuration — give you the memory bandwidth to run parallel analytics workloads (object detection, face recognition, behavior analysis) across dozens of simultaneous video streams without choking on latency. That's the crux of modern NVR clusters: more RAM, faster memory bus, and PCIe lanes for GPU acceleration.

Technical Highlights:

• DDR5 Memory Architecture (16 slots, 4800/4400 MHz): 60–70% higher bandwidth than DDR4-3200. Direct impact: sub-millisecond inference latency when running NVIDIA CUDA workloads on edge video analytics. If you're deploying a 200-camera site with on-box AI, this memory speed is not negotiable.
• Intel PCH C741 Chipset: Full-fat PCIe fabric for GPU passthrough, 10GbE NICs, and NVMe expansion. Means you can hang an A100 or RTX 6000 off the same motherboard managing video ingestion — no separate compute island required.
• 2U Compact Form Factor (44 × 23.50 × 15.50 inches, 115 lb): Fits standard racks without custom mounting. Weight is manageable for one installer with basic equipment; floor-load it as part of a full cage assembly and it disappears into the envelope.

Deployment Considerations:

• Power draw at full utilization (CPU + full memory + dual GPUs) will exceed 2.5 kW — validate your rack PDU and UPS headroom before committing to this platform. Many sites underestimate by 30% and hit thermal throttling.
• DDR5 modules are still premium-priced (2024). Budget accordingly if you're configuring 768 GB across 16 DIMMs. 1DPC (8 DIMMs) is the sweet spot for cost-per-GB in most surveillance deployments.

The ESC4000-E11-26WGP is the right call for large managed surveillance installations running real-time AI on edge — distribution centers, critical infrastructure, large retail chains where you need sub-second object detection and aren't offloading to cloud. Single-site or small-cluster use cases should step down to a 1U platform; the 2U premium only pays for itself if you're maxing out memory and GPU resources.
