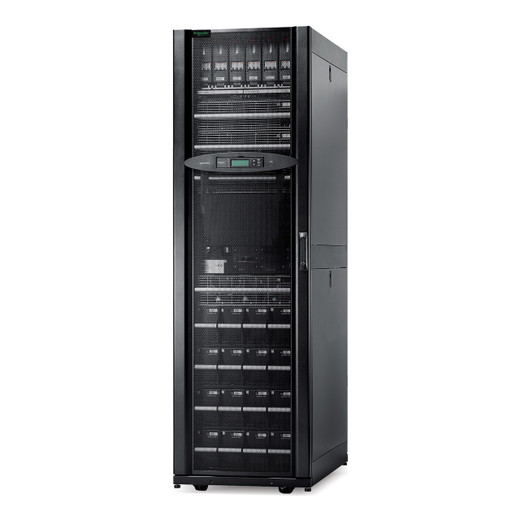

APC Symmetra PX - SY16K48H-PD

APC by Schneider Electric SY16K48H-PD Symmetra PX 16kVA Modular UPS

Overview

The APC by Schneider Electric SY16K48H-PD is a 16kVA three-phase modular uninterruptible power supply from the Symmetra PX line — a platform built for data centers, network equipment rooms, and critical infrastructure where downtime is not an option. Hard-wired output (3P + N + E, five-wire configuration) means this unit feeds directly into your facility's power distribution, making it the right fit for high-density rack environments and industrial-scale deployments rather than plug-and-play installations. If you need a UPS system that scales with your infrastructure without requiring a full hardware replacement, the modular Symmetra PX architecture is worth understanding.

APC's Symmetra PX line has been a mainstay in enterprise and mission-critical facilities for years. The SY16K48H-PD sits in the middle of that family — enough capacity for mid-scale data center rows or large network closets, with the modularity to grow as loads increase.

Key Features

• 16kVA Output Capacity: 16kVA supports substantial IT loads — think fully populated server racks, high-density storage arrays, or a combination of network and compute gear. Size the load to no more than 80% of rated capacity (approximately 12.8kVA) to maintain headroom for startup surges and future expansion without touching the hardware.
• Hard-Wire Five-Wire Output (3P + N + E): Direct hard-wire connection eliminates outlet-level failure points and is the standard approach for protecting large three-phase loads. This requires licensed electrical installation — plan that into your commissioning timeline. It is not a unit you roll in and plug into a wall strip.
• 3-Hour Battery Recharge Time: After a full discharge, the SY16K48H-PD returns to full battery capacity in three hours. In environments where utility power is unreliable or where maintenance windows are tight, a three-hour recharge window means you can restore full protection well within a standard overnight maintenance period.
• Emergency Power Off (EPO) Support: Built-in EPO capability lets you integrate the unit into a facility-wide emergency shutdown circuit. For data centers and server rooms where rapid de-energization is required by code or policy, EPO is a non-negotiable feature — it is present here.
• 61 dB Audible Noise Level: At 61 dB, this unit is louder than typical office equipment but within the expected range for three-phase power infrastructure. Plan for a dedicated equipment room or enclosed data center bay — open office or quiet server closet deployments should factor this into the space design.
• Audible Alarms: On-board audible alarms provide local alerting for fault conditions — relevant in unmanned or infrequently visited equipment rooms where visual-only alerts can go unnoticed. Pair with a network management card for remote SNMP alerting if the room is not staffed.
• VRLA Battery Technology: Valve-regulated lead-acid batteries are sealed, maintenance-free, and do not require watering — a practical advantage in space-constrained equipment rooms. VRLA batteries are also tolerant of the 0–40°C operating range specified for this unit.
• 0–40°C Operating Temperature Range: Covers the full range of conditioned data center environments (typically 18–27°C per ASHRAE A1) with meaningful headroom. Storage is rated down to -15°C, so units can be warehoused in unheated spaces without battery damage before commissioning.
• 0–95% Relative Humidity (Non-Condensing): Wide humidity tolerance means the SY16K48H-PD can operate in environments that are not perfectly climate-controlled — useful in industrial or warehouse data closets where humidity management is less precise than a purpose-built raised-floor data center.
• VFI-SS-111 Certification (IEC 62040-3): VFI (Voltage and Frequency Independent) is the highest UPS classification under IEC 62040-3. It means the output is completely isolated from the input — any utility voltage fluctuations, frequency drift, or transients on the input side do not reach the protected load. This is the classification that matters for sensitive server and storage equipment, and it is independently verified here via EN/IEC 62040-3 certification.
• FCC Part 15 Class A Certification: Class A covers commercial and industrial environments. If you are deploying in a light-industrial or mixed-use facility, FCC Class A is the correct compliance category.

Integration & Compatibility

The SY16K48H-PD is designed for integration into managed power environments. EPO terminal compatibility allows coordination with building management systems and facility emergency shutdown controls. The five-wire hard-wire output is compatible with standard three-phase power distribution panels used in commercial construction in North American and international markets where EN standards apply. The dual certification set (EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-3) confirms compliance with European directives — relevant if the unit is being deployed internationally or if EU-market documentation is required. For complete power protection across your facility, consider pairing with dedicated power distribution units downstream of this UPS to maintain granular circuit-level control.

The SY16K48H-PD (often searched as SY16K48H PD) ships at approximately 578 kg packaged — budget for appropriate freight handling and a facilities team on-site for delivery and positioning. This is not a unit that moves with a standard pallet jack in a tight server room hallway.

Frequently Asked Questions

Q: What type of output connection does the SY16K48H-PD use?

A: The SY16K48H-PD uses a hard-wire five-wire output (3P + N + E — three phase, neutral, and earth ground). This requires a licensed electrician for installation and connects directly to your facility's power distribution panel. There are no standard outlet receptacles on this unit.

Q: What is the UPS classification of the SY16K48H-PD?

A: The SY16K48H-PD is certified to IEC/EN 62040-3 Class VFI-SS-111 — Voltage and Frequency Independent. This is the highest UPS classification, meaning the output is fully isolated from input power quality issues. Utility voltage fluctuations and frequency variations do not pass through to protected equipment.

Q: How long does the SY16K48H-PD take to recharge after a full discharge?

A: Battery recharge time is 3 hours from full discharge back to full capacity under normal conditions.

Q: Does the SY16K48H-PD support Emergency Power Off (EPO)?

A: Yes. The SY16K48H-PD includes EPO support for integration with facility-wide emergency shutdown circuits, as required in many data center and commercial building codes.

Q: What certifications does the SY16K48H-PD carry?

A: Certifications include EN 50091-1, EN/IEC 62040-3, EN/IEC 62040-1-1, FCC Part 15 Class A, and VFI-SS-111 classification. This covers both North American commercial and European market compliance requirements.

Q: What is the operating temperature range for the SY16K48H-PD?

A: The operating temperature range is 0–40°C (32–104°F). Storage temperature extends from -15°C to 40°C, allowing unheated warehouse storage prior to installation without battery damage.

Marty Allison

The SY16K48H-PD earns its place in mid-scale data center deployments primarily because of its VFI-SS-111 classification — that IEC 62040-3 rating means the 16kVA output is fully decoupled from whatever the utility is doing. In facilities where I have seen the most server and storage failures, the culprit is almost always subtle input power quality issues that a lower-classification UPS passed straight through. This unit does not do that.

Technical Highlights:

• VFI-SS-111 (IEC 62040-3): Full double-conversion topology confirmed by independent certification — utility transients, sags, and frequency drift are absorbed before they reach the load. This is the spec that separates infrastructure-grade UPS from line-interactive units.
• 3-Hour Recharge: After a full discharge event, you are back to 100% battery protection within a standard three-hour maintenance window. For facilities running nightly maintenance cycles, this is an important recovery timing checkpoint.
• 61 dB Noise / 578 kg Package Weight: Both figures require facilities planning before deployment. At 61 dB, this unit belongs in a closed equipment room, not a mixed-use space. At 578 kg packaged, verify your freight elevator and floor load capacity before the delivery truck arrives — I have seen projects delayed two weeks because nobody checked the floor rating in the existing equipment room.

Deployment Considerations:

• Hard-wire five-wire output (3P + N + E) is not a self-install. Schedule licensed electrical work as part of your commissioning plan — this is not a last-minute item. Coordinate with your facilities or electrical contractor early.
• Operating altitude is rated to 999.9 meters. If your facility is above that threshold, verify with APC's application engineering whether de-rating applies — this is a real constraint for high-altitude deployments that is frequently overlooked in the pre-sales phase.

The SY16K48H-PD is best positioned for mid-density data center rows, colocation cage buildouts, or enterprise network equipment rooms where three-phase power is already present and the team needs VFI-class protection with a documented path to scale capacity without swapping the frame.
