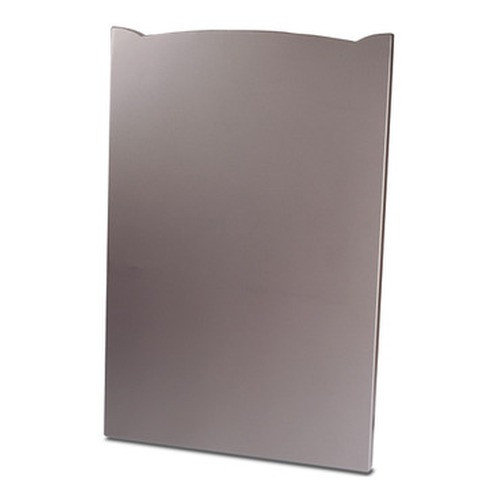

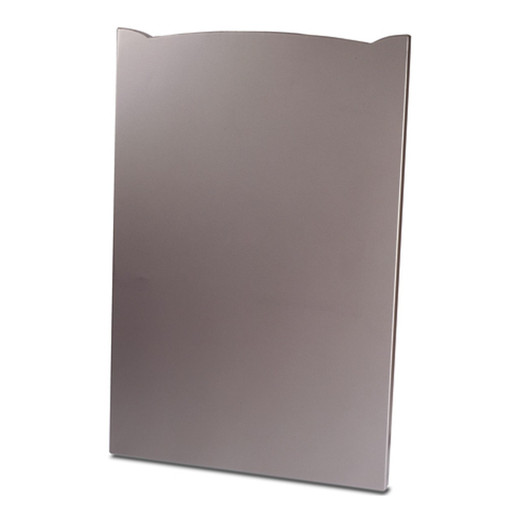

APC Symmetra LX TOP Panel - SYAFSU8

APC by Schneider Electric SYAFSU8 Concise Descriptor

Overview

The APC Symmetra LX TOP Panel, model SYAFSU8, is a rack-mountable expansion unit designed to integrate with APC Symmetra LX Uninterruptible Power Supply (UPS) systems. This panel facilitates the addition of additional power modules and battery frames, extending the runtime and capacity of your existing Symmetra LX infrastructure. It is specifically engineered for data center and enterprise environments where scalable and reliable backup power is critical. The SYAFSU8 unit measures 711mm in height, fitting standard 19-inch racks.

Compatibility

This TOP Panel is compatible with the APC Symmetra LX 10kVA, 15kVA, and 20kVA configurations. It is designed to work with specific Symmetra LX battery frames and power modules to expand the overall UPS capacity and runtime. Ensure your existing Symmetra LX system is within the supported models before integrating the SYAFSU8.

Installation Notes

Installation requires physical integration into a standard 19-inch rack alongside the Symmetra LX UPS. The unit weighs 5.6 kg and has dimensions of 483 x 51 x 711 mm (WxDxH). Proper grounding and adherence to APC's installation guidelines for Symmetra LX systems are mandatory. Ensure adequate clearance for airflow and access to connection points.

What's in the Box

• 1x APC Symmetra LX TOP Panel (SYAFSU8)
• 1x Installation Guide
