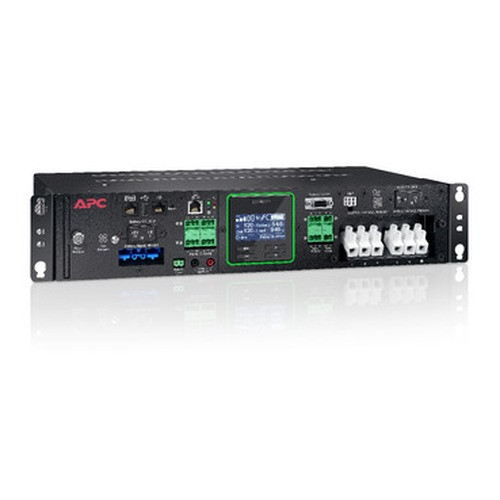

APC Smartups Industrial 2000VA / 1800W 120VAC In/out RM Conformal Coated - XU2K0LLXXRCC

APC by Schneider Electric XU2K0LLXXRCC SmartUPS Industrial 2000VA Rack UPS

Overview

The APC by Schneider Electric XU2K0LLXXRCC is a 2000VA / 1800W rack-mount uninterruptible power supply built for the SmartUPS Industrial line — the conformal-coated variant engineered for deployment in environments where standard UPS hardware fails. At 120VAC in and out, it fits directly into North American rack infrastructure without step-up/step-down transformers or special branch circuits. The conformal coating on the PCBs is the distinguishing factor here: it seals electronics against moisture, condensation, corrosive atmospheres, and airborne contaminants that would degrade or destroy unprotected boards over time — making this the correct choice for manufacturing floors, transit hubs, utility closets with humidity swings, outdoor enclosures, and any environment where a standard commercial UPS would corrode prematurely.

At 1800W true power output, the XU2K0LLXXRCC delivers enough capacity to support a meaningful mix of security infrastructure — network video recorders, PoE switches, access control panels, alarm panels, and associated networking gear — while the rack-mount form factor keeps everything inside a standard equipment rack alongside the devices it protects. Weighing in at 22.05 lb (10 kg), it's dense but manageable for a one- or two-person rack installation. The 48V battery bus is characteristic of APC's SmartUPS architecture and supports the line's intelligent battery management.

Key Features

• 2000VA / 1800W Output Capacity: The 0.9 power factor is built in — 1800W of real power on a 2000VA unit means you're not discounting capacity due to a poor power factor spec. For a typical surveillance rack (NVR, PoE switch, access control head-end, a gateway), 1800W provides meaningful runtime headroom without oversizing to a 3kVA unit.
• Conformal-Coated PCBs (Industrial Variant): The conformal coating separates this SKU from the standard SmartUPS 2000VA. If your installation site has humidity cycling, salt air, dust, or chemical vapors — think parking structures, loading docks, production floors, coastal sites — conformal coating extends board life significantly. Standard commercial UPS hardware is not rated for these conditions. Do not substitute a non-coated variant and expect equivalent service life.
• 120VAC Input / 120VAC Output: Native North American voltage compatibility means no wiring adapters, no dedicated transformer circuits. Plugs into standard 120V branch circuits; connected equipment sees clean 120VAC output. Verify your branch circuit amperage against load before commissioning — a fully loaded 1800W system draws approximately 15A at 120V.
• 48V Battery Architecture: The 48V battery bus is APC's standard SmartUPS topology for this power class. It supports the line's battery management features and is consistent with APC's replacement battery ecosystem — relevant for long-term service planning on industrial sites where a UPS may run for 5–10 years before replacement.
• Rack-Mount Form Factor: The RM designation means this unit installs into a standard 19-inch equipment rack alongside the infrastructure it protects. At 3.46 in (approximately 2U), it occupies a defined, predictable rack footprint. Co-locating the UPS with protected equipment eliminates long power runs and simplifies cable management.
• 22.05 lb (10 kg) Unit Weight: Heavier than a comparable non-industrial unit due to battery and ruggedized components, but within two-person lift range for rack installation. Factor this into rack load calculations — particularly for middle or top rack positions where weight distribution matters.

Integration and Compatibility

The XU2K0LLXXRCC operates at 120VAC and is compatible with standard North American branch circuits. Its rack-mount form factor integrates into any standard 19-inch equipment rack. The SmartUPS Industrial line is APC's hardened product tier, designed to interface with the same downstream infrastructure as the standard SmartUPS family while providing the environmental resilience required for non-office deployments.

For network switches, NVRs, and access control equipment deployed in harsh or semi-harsh environments, pair this unit with appropriately rated enclosures and cable management. If your installation is part of a broader UPS and power protection strategy across multiple rack locations, note that the conformal-coated variant commands a price premium over the standard model — budget accordingly for sites requiring multiple units.

If you are specifying power protection for a full surveillance system, review the IP camera and NVR power draw totals before sizing — the 1800W capacity of this unit is sufficient for most mid-scale deployments but will require a larger unit for high-channel-count systems with multiple high-wattage PTZ cameras or servers. For guidance on matching UPS capacity to surveillance load, see our power protection planning guide.

Frequently Asked Questions

Q: What is the difference between the XU2K0LLXXRCC and a standard APC SmartUPS 2000VA?

A: The XU2K0LLXXRCC is the conformal-coated industrial variant. The PCBs are treated with a protective coating that resists moisture, condensation, corrosive vapors, and airborne contaminants. A standard SmartUPS 2000VA without conformal coating is designed for climate-controlled office or data center environments. If your site has humidity swings, dust, or chemical exposure, the XU2K0LLXXRCC is the correct choice — the standard variant is not.

Q: What input voltage and outlet configuration does the XU2K0LLXXRCC require?

A: The unit operates on 120VAC input and provides 120VAC output — standard North American voltage. It is rack-mount and sized at approximately 2U. Specific outlet count and configuration details should be confirmed against the manufacturer's full specification sheet for this SKU.

Q: How much real power (watts) does the XU2K0LLXXRCC deliver?

A: 1800W. The unit is rated at 2000VA with a 0.9 power factor, delivering 1800W of true power. For load planning, total the wattage of all connected equipment — NVRs, switches, access panels, gateways — and keep connected load below 1800W to maintain runtime headroom.

Q: Can the XU2K0LLXXRCC be used in outdoor or harsh environments?

A: The conformal coating makes it the appropriate choice for harsh indoor environments — manufacturing floors, transit facilities, parking structures, sites with humidity or airborne contaminants. For fully outdoor deployment, the unit would need to be housed in an appropriately rated enclosure, as the UPS chassis itself is a rack-mount unit and not independently IP-rated for outdoor exposure.

Q: What battery voltage does the XU2K0LLXXRCC use?

A: The unit uses a 48V battery bus, consistent with APC's SmartUPS architecture for this power class. Replacement batteries should be sourced as APC SmartUPS Industrial series batteries matched to this specific SKU to ensure compatibility and proper battery management operation.

Jerry Tildsen

The XU2K0LLXXRCC is the unit I reach for when a client insists on a rack UPS but their site is anything other than a controlled data center or IT closet. The 1800W real-power rating covers a solid surveillance or access control rack, and the conformal coating is what justifies the price delta over a standard SmartUPS — it's not a marketing distinction, it's the difference between 2-year and 8-year board life in a facility with humidity swings or airborne particulates.

Technical Highlights:

• 1800W True Power at 0.9 PF: Most UPS units at the 2000VA tier deliver 1400–1600W real power at 0.7–0.8 PF. APC's 0.9 PF spec here means you get 1800W usable — roughly 12–25% more capacity than a same-VA competing unit with a lower PF rating.
• Conformal Coating (Industrial Grade): Board-level moisture and contaminant barrier. Standard SmartUPS PCBs are uncoated — they degrade in environments above ~60% sustained relative humidity or with airborne chemicals. The coating on the XU2K0LLXXRCC is the entire reason this SKU exists.
• 48V Battery Bus: Consistent with APC's SmartUPS replacement battery ecosystem. On a 5–10 year industrial deployment, battery replacement serviceability matters — 48V topology means you're sourcing from a well-established replacement program, not a proprietary dead end.

Deployment Considerations:

• At 22.05 lb, plan for two-person installation in the rack, particularly if mounting above 4U height. Verify rack rail compatibility with APC's rail kit for the SmartUPS Industrial RM line before ordering.
• The 120VAC input draws approximately 15A at full 1800W load — confirm your branch circuit is 20A dedicated before commissioning. Running a 15A circuit at full load is a code and safety issue in most jurisdictions.

This unit is the right call for surveillance infrastructure in transit facilities, industrial campuses, and coastal or high-humidity sites — anywhere a standard rack UPS would show premature board degradation within 18–36 months. If your installation is a clean, climate-controlled server room, the standard SmartUPS 2000VA is a more cost-effective choice.
